  • SVLBL 2525 M16
  • SVLBL 2525 M16
SVLBL 2525 M16

SVLBL 2525 M16

Brand: WIDAX

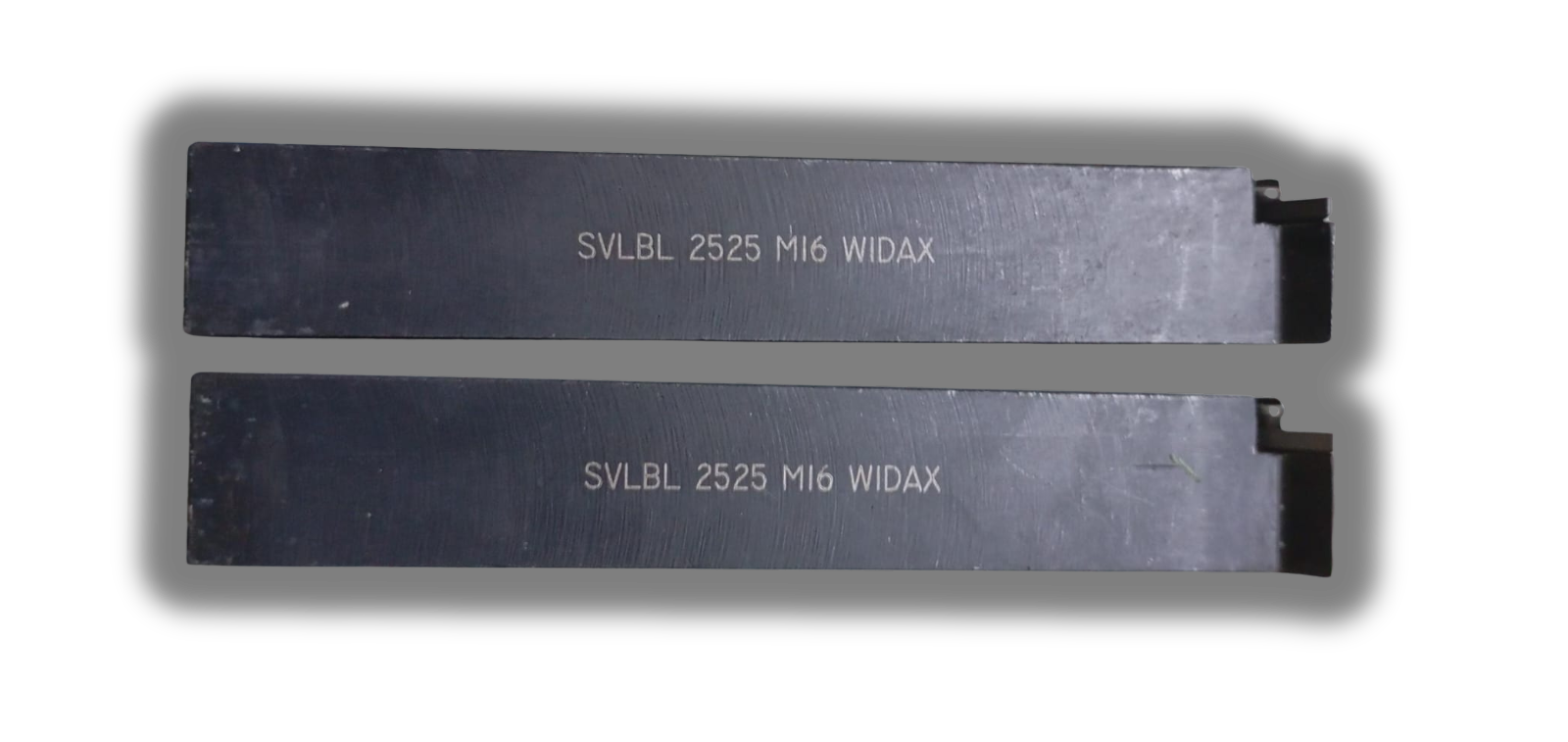

The SVLBL 2525 M16 is a standard ISO-designated, screw-on external turning tool holder designed for CNC or manual lathe operations.

₹1800.00

₹1800.00

Share on:
product details

S: Clamping system code (Screw-on style through the center hole of the insert).
V: Insert shape code (Designed for a 35° rhombic shape VBMT or VCMT insert).
L: Tool holder style/approach angle (Specifies a specific offset and clearance geometry; similar variants like SVJBL feature a 93° cutting edge angle).
B: Insert clearance angle (5° positive clearance angle).
L: Tool hand direction (Left-hand cutting direction).
2525: Shank size (A square rectangular shank measuring 25 mm wide by 25 mm high).
M: Tool length code (Standardized functional length of 150 mm).
16: Insert cutting edge length (The length of the master insert edge, fitting 16mm size inserts such as VBMT 160408).
