  • T2139-12.5R-C25-200L-1T
  • T2139-12.5R-C25-200L-1T

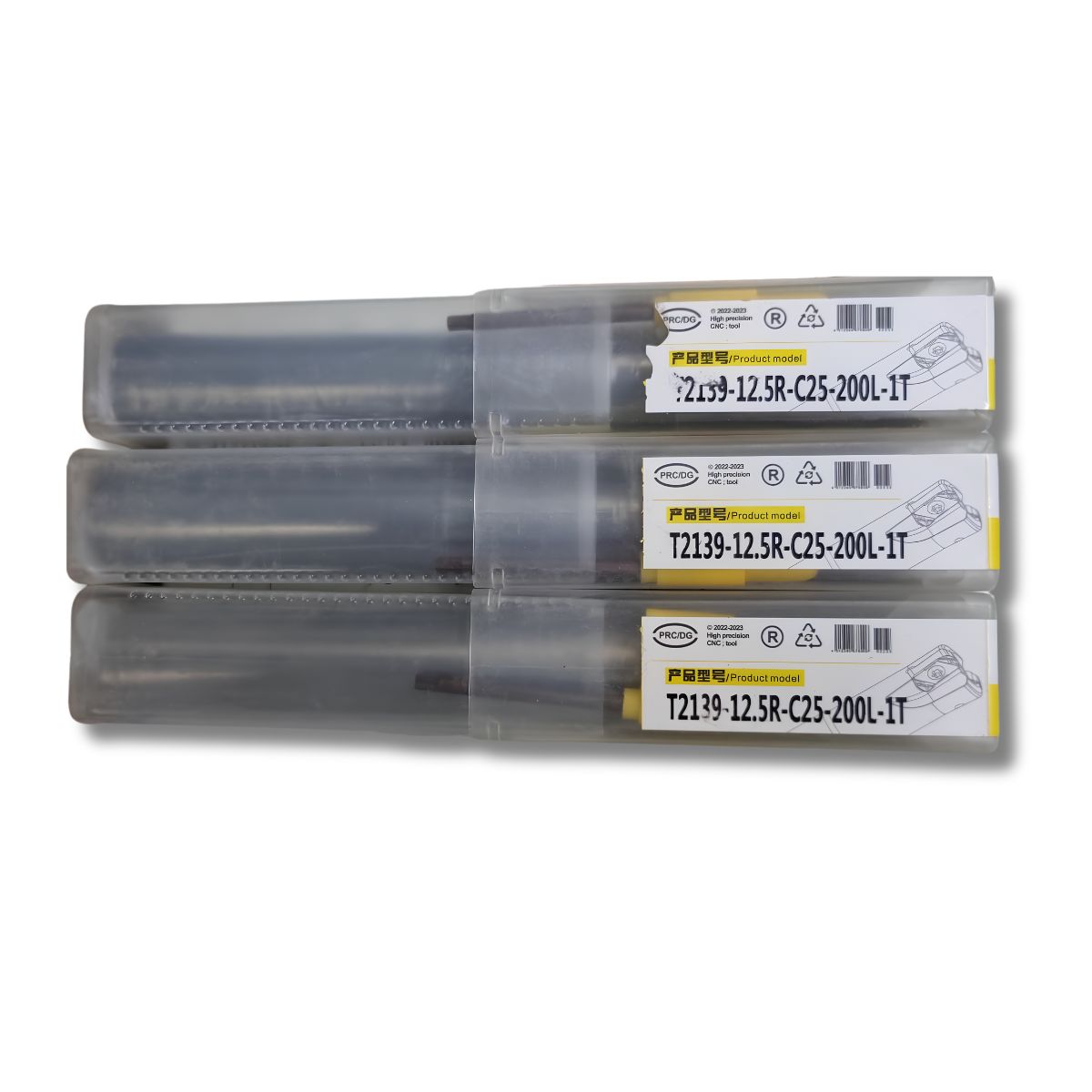

T2139-12.5R-C25-200L-1T

T2139-12.5R-C25-200L-1T

Brand: TOOLFARM

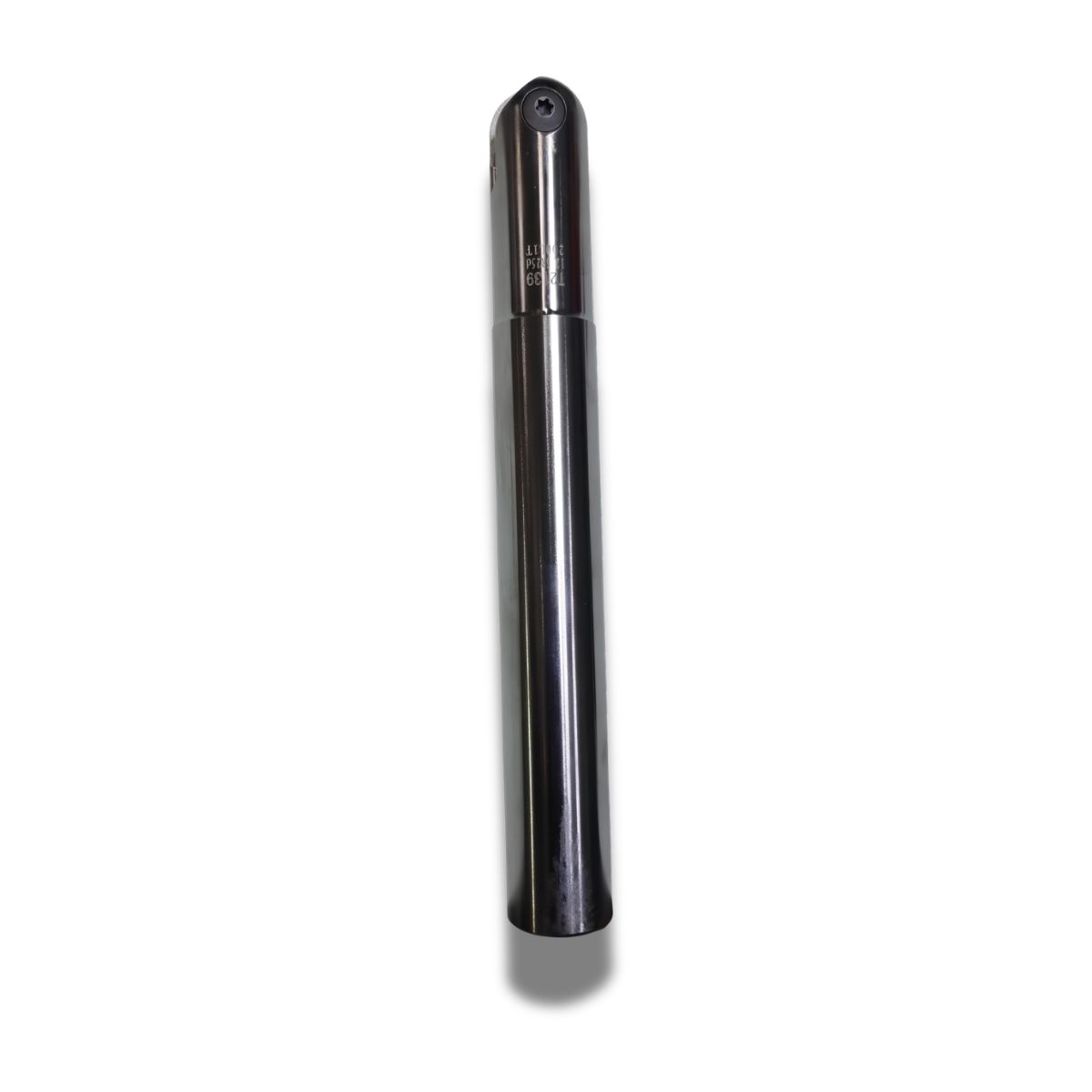

The designation T2139-12.5R-C25-200L-1T describes a high-precision, indexable finish ball nose end mill tool holder.This specific type of milling bar is highly favored in the die, mold, and aerospace industries. It is uniquely optimized for complex 3D contouring, copy milling, and producing mirror-like surface finishes on curved profiles.

₹5500.00

₹5500.00

Share on:
product details

T2139: The specific indexable structural series code for this ball head finishing mill system.
12.5R: Denotes a 12.5 mm ball nose radius. This yields an effective outer cutting diameter  of exactly 25 mm across the widest tip path
C25: Indicates a 25 mm straight cylindrical shank diameter. It features a seamless 1:1 diameter ratio matching the cutting head, allowing uniform side-clearance inside narrow structural steps.
200L: Signifies a lengthened overall tool layout measuring 200 mm long from the tip to the back of the shank, providing the deep-reach access required for tall cavity molds.
1T: Specifies 1 Tooth (Single Flute / Pocket). Ball nose finishers of this nature use one large, full-round indexable carbide insert seated across the center axis to ensure a true, un-interrupted cutting geometry at the center pivot.

Technical Parameter
Engineering Guideline
Insert Compatibility    Fits full-round P3200-D25 or P320-D25 layout carbide inserts.
Deflection Resistance    The core body uses high-tensile 42CrMnTi steel alloy treated with an anti-vibration arc profile to suppress chatter at deep extensions.
Operation Focus    Strictly designed for semi-finishing to super-finishing profiles. Avoid using this tool for heavy structural roughing.
