BRAND AUTHORITY: BACKED BY KYOCERA'S EXTENSIVE APPLIED ADVANCED MATERIAL SCIENCE TO ENSURE MAXIMIZED PROCESS SECURITY ON AUTOMATED CNC LINES.

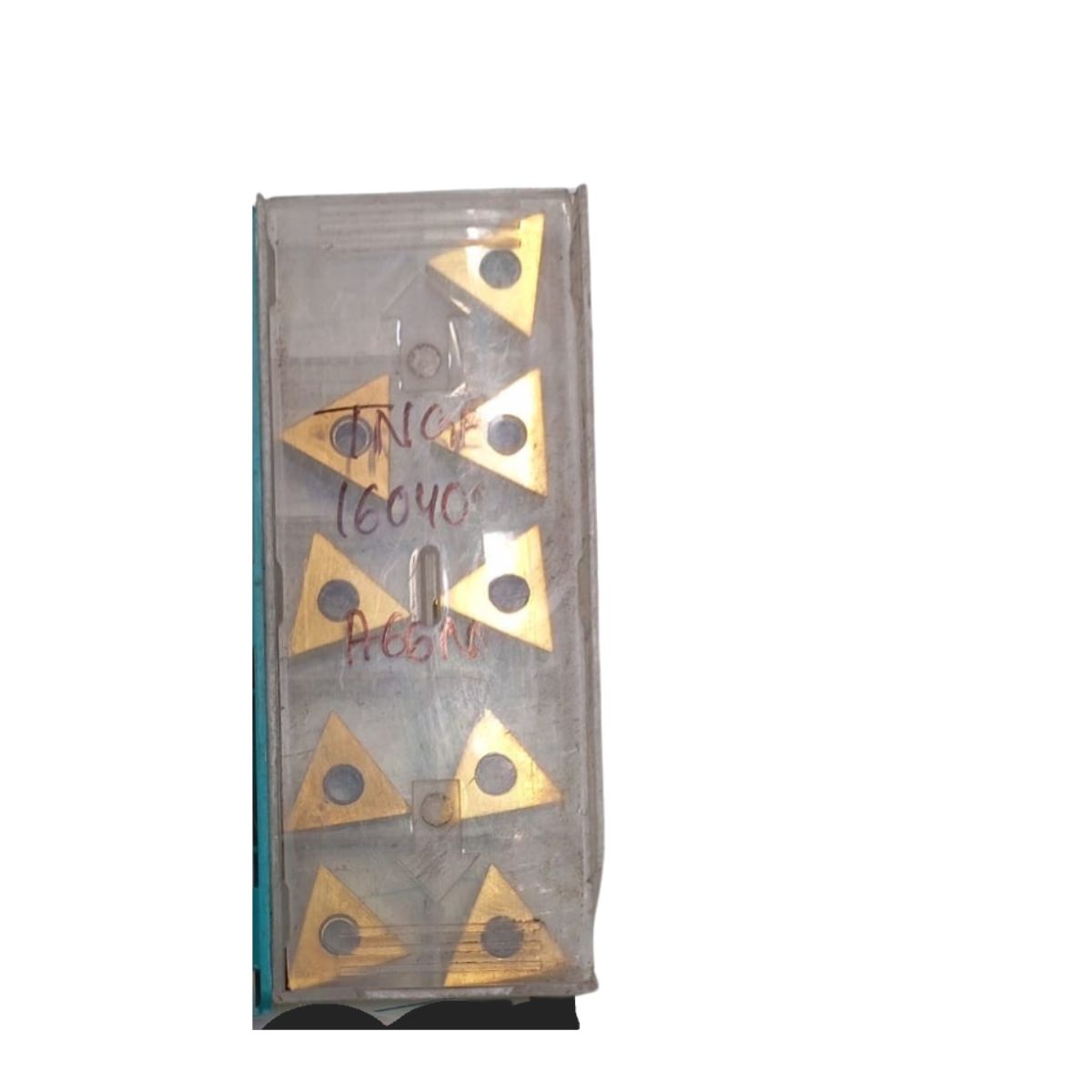

SHAPE GEOMETRY: UTILIZES A T-TYPE 60-DEGREE EQUILATERAL TRIANGULAR DRIFT OUTLINE, PERMITTING REINFORCED STABLE FACE AND COPY TURNING TRIPS.
CLEARANCE ANGLE: BUILT WITH AN N-TYPE ZERO-DEGREE NEGATIVE RELIEF DESIGN EXERTING SUPERIOR REINFORCED BASE BULK STRUCTURAL BACKING FOR EDGES.
TOLERANCE DESIGNATION: CONFORMS TO THE HIGH-PRECISION GROUND G-CLASS ISO FORMAT SECURING EXTREME INDEXING HEIGHT UNIFORMITY BETWEEN RUNS.
FIXING GEOMETRIC: FORMED WITH AN INTEGRATED CYLINDRICAL RETENTION BARREL (A-TYPE) ACCOMMODATING SECURE RIGID OVERHEAD CHUCK LOCK CLAMPS.
EDGE MEASUREMENT: CONSTRUCTED WITH A NOMINAL 16 MM SIDE CHAMBER CUTTING EDGE LENGTH TO RE-FIT SECURELY IN STANDARD LATHE TOOLBAR POCKETS.
BODY THICKNESS: MARKED WITH THE 04 SPECIFICATION TRANSLATING TO A STRUCTURAL BLOCK REINFORCEMENT THICKNESS OF EXACTLY 4.76 MM.
NOSE RADIUS: FITTED WITH A SHARP 0.4 MM NOSE RADIUS IDEALLY SUITED FOR EXECUTING NARROW RADIUS PROFILES AND ULTRA-FINE SMOOTH SURFACE PASSES.
SUBSTRATE TECHNOLOGY: ADVANCED COMPOSITE MATRIX BLENDS EMBEDDED CERAMICS DESIGNED SPECIFICALLY TO RE-LATHE EXTREMELY BRITTLE OR HEAT-TREATED METALS.
THERMAL SHOCK POWER: OFFERS REMARKABLE THERMAL STABILITY AND RESISTANCE TO FLANK DEFECTS COMPARED TO TRADITIONAL RAW OXIDE CERAMICS.
OXIDATION BARRIER: CORROSION-INERT BOUNDARY LAYERS MAINTAIN STEADY COMPRESSION RESISTANCE AT SUBSTANTIALLY ELEVATED FRICTIONAL TEMPERATURE LIMITS.
ANTI-WELDING FOCUS: THE HIGH CHEMICAL STABILITY VIRTUALLY ELIMINATES MATERIAL SMEARING AND COLD-WELDING BUILT-UP EDGE (BUE) TROUBLES.
TARGET METALS: PURPOSE-BUILT FOR PRECISION LATHING SPECIFICATIONS ACROSS GREY CAST IRON MOULDS AND HARDENED CARBON ALLOY DIE STEELS.
HARD TURNING BOUNDARY: RUNS CONTINUOUS AND LIGHT INTERRUPTED FINISHING RUNS ACROSS EXTREMELY SOLID PRE-HARDENED STEELS BETWEEN 45 TO 65 HRC.
EDGE ECONOMY: ASSURES OUTSTANDING MACHINE HOUR DEPRECIATION RATIOS AS A FRACTION-PRICED REPLACEMENT FOR EXPENSIVE DIAMOND CBN BLADES.
