  • TNGG 160402 PR1535

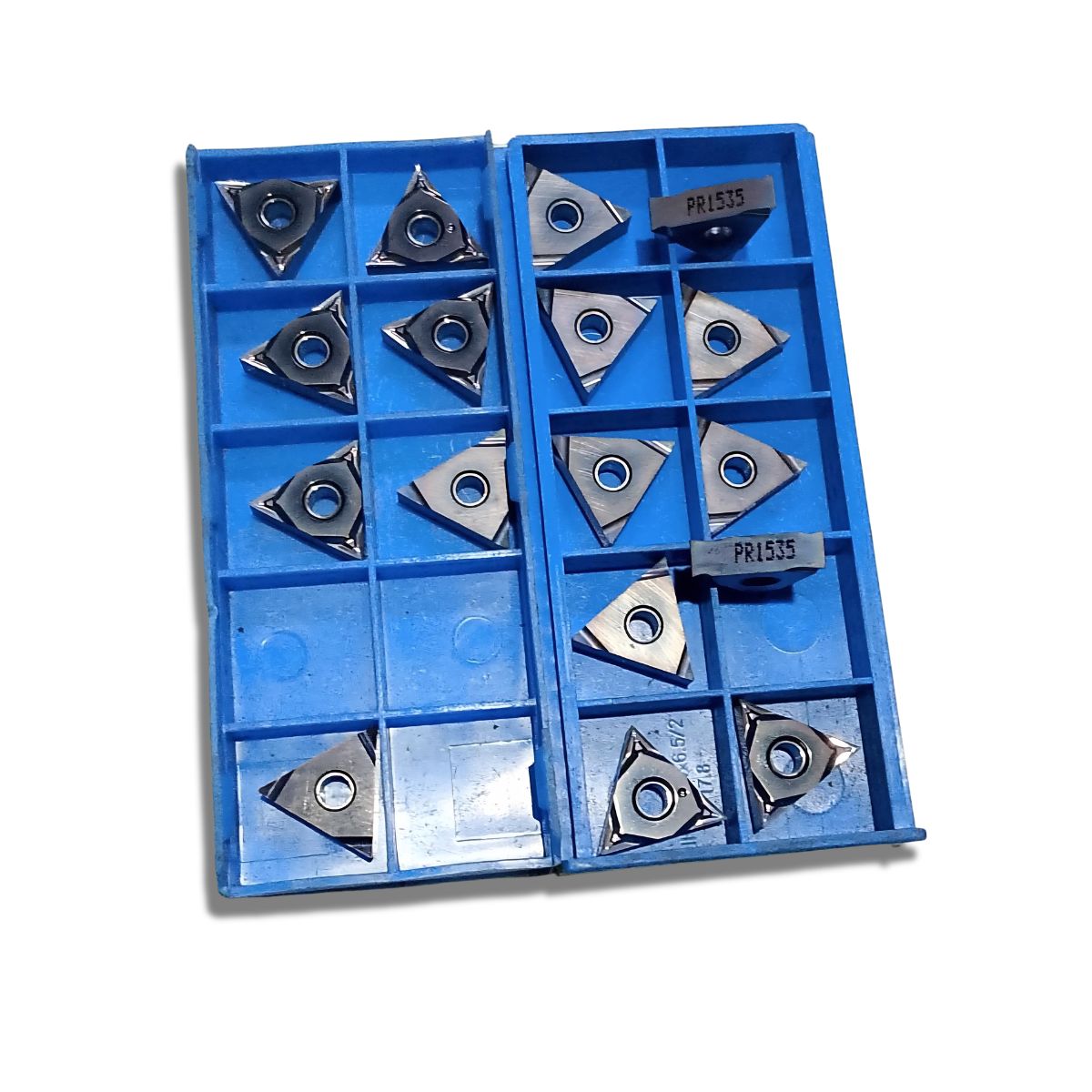

TNGG 160402 PR1535

TNGG 160402 PR1535

Brand: TOOLFARM

THE TNGG 160402 PR1535 IS A HIGH-PRECISION, NEGATIVE DOUBLE-SIDED TRIANGULAR TURNING INSERT , "TNMG" ROUGHING GEOMETRIES, THE "G" IN TNGG INDICATES A HIGH-PRECISION PERIPHERALLY GROUND GEOMETRY WITH A SHARP CUTTING EDGE, MAKINIG IT PERFECTLY ENGINEERED FOR ULTRA-FINE FINISHING OPERATIONS AND EXACT DIMENSIONAL CONTROL ON DIFFICULT-TO-MACHINE MATERIALS.

₹600.00

₹600.00

Share on:
product details

INSERT SHAPE (T): 60° TRIANGULAR SHAPE, OFFERING UP TO 6 DISTINCT CUTTING EDGES (3 ON EACH SIDE) DUE TO ITS SYMMETRICAL DESIGN.
CLEARANCE ANGLE (N): 0° NEGATIVE CLEARANCE ANGLE, UTILISING HOLDER POCKET INCLINATION TO DELIVER SOLID BACKUP RIGIDITY.
TOLERANCE CLASS (G): CLASS G PERIPHERALLY GROUND SPECIFICATION. THIS REPRESENTS THE HIGHEST PRECISION TOLERANCE PROFILE FOR OUTSTANDING INDEXING ACCURACY AND MINIMAL VARIATION.
HOLE & CHIPBREAKER DESIGN (G): FEATURING A DOUBLE-SIDED DESIGN WITH A SHARPER FINISHING CHIPBREAKER GEOMETRY AND A CYLINDRICAL MOUNTING HOLE.
CUTTING EDGE LENGTH (16): NOMINAL CUTTING EDGE LENGTH MEASURING 16.5 MM.
THICKNESS (04): STANDARD INSERT THICKNESS MEASURING 4.76 MM.
CORNER RADIUS (02): ULTRA-FINE 0.2 MM CORNER RADIUS TAILORED SPECIFICALLY FOR SMALL DEPTHS OF CUT, HIGHEST DIMENSIONAL REPEATABILITY, AND REDUCING TOOL DEFLECTION ON SLENDER WORKPIECES.
CARBIDE GRADE (PR1535): KYOCERA'S PREMIUM MEGACOAT NANO PVD-COATED CARBIDE SUBSTRATE. IT PROVIDES EXCEPTIONAL HIGH-HEAT TOUGHNESS AND CHIPPING RESISTANCE, DRASTICALLY EXTENDING TOOL LIFE IN GUMMY OR WORK-HARDENING METALS.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
