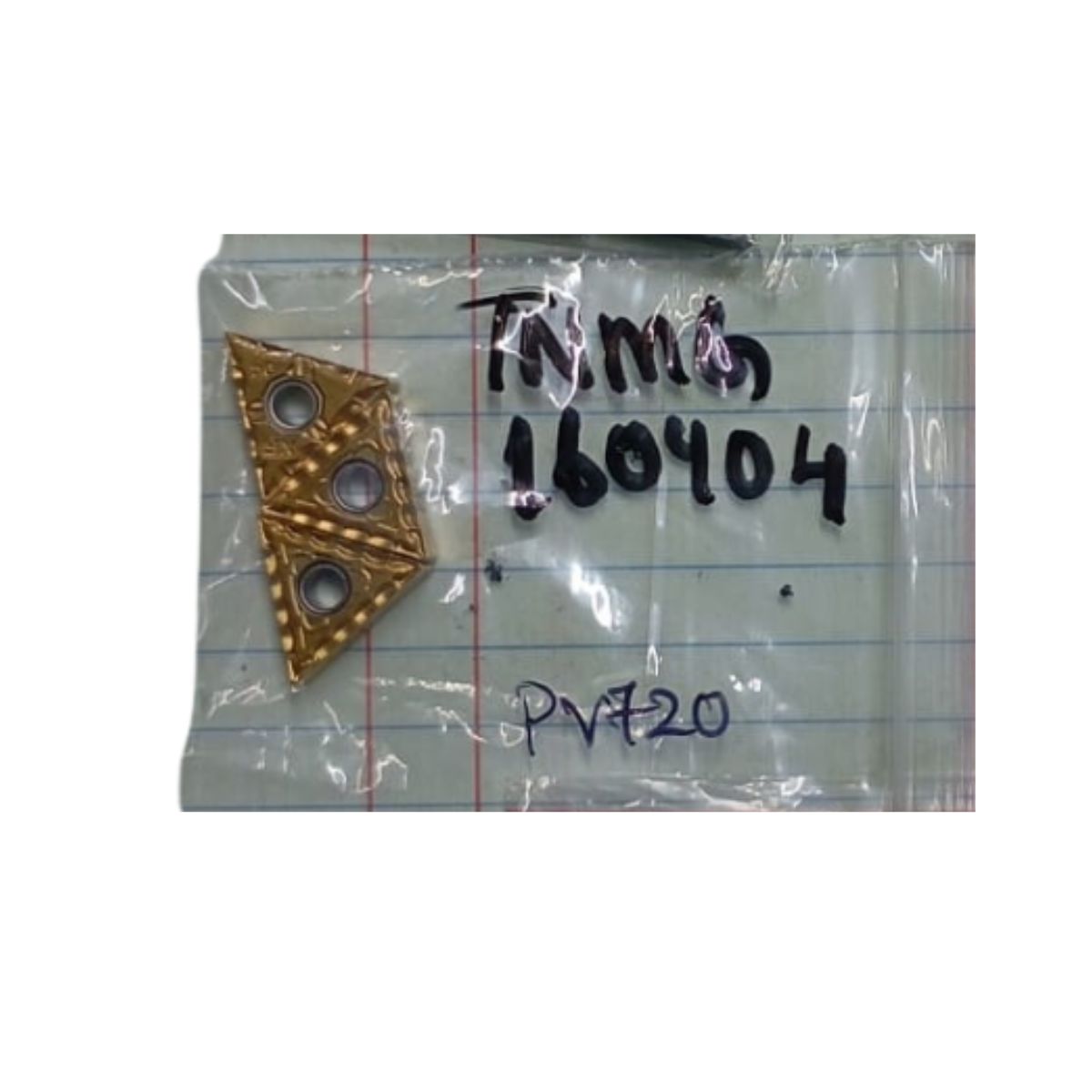

TNMG 160404 PV720 IS A RUGGED DOUBLE-SIDED HYBRID CERMET TURNING CONSUMABLE FOR HIGH-SPEED PRECISION CNC LATHE RUNS.
IT MOUNTS MECHANICALLY INTO RIGID INDEXABLE TOOL HOLDERS ENGAGED IN HIGH-EFFICIENCY FINISHING AND SEMI-FINISHING PASSES.
THE ALPHANUMERIC NOMENCLATURE CONFORMS ENTIRELY WITH STANDARDIZED METRIC CHARTS ESTABLISHED BY ISO REGULATORS.
THE INITIAL LETTER T DESIGNATES A CLASSIC TRIANGULAR GEOMETRIC DESIGN BOASTING A SIXTY-DEGREE CORNER ANGLE INCLUSION.
THE LETTER N SPECIFIES A ZERO-DEGREE NEUTRAL CLEARANCE PROFILE REQUIRING A HOLDER WITH A NEGATIVE INCLINATION ANGLE.
THE LETTER M DEFINES INDUSTRIAL-GRADE MANUFACTURING TOLERANCE RATINGS ASSURING UNIFORM PART DATA REPEATABILITY.
THE LETTER G REPRESENTS A DOUBLE-SIDED CHIPBREAKER FACE WITH A FORMED COUNTERSUNK HOLE FOR PIN OR CLAMP LOCKING.
THE METRIC DIGIT 16 REPRESENTS A SIXTEEN-MILLIMETRE TRIANGLE EDGE LENGTH MEASURING ACCURATELY ALONG THE CUTTING FLUTE.
THE DIGIT 04 INDICATES A NOMINAL FOUR-POINT-SEVENTY-SIX MILLIMETRE THICKNESS BUILT TO ABSORB SEVERE DEFLECTION FORCES.
THE TERMINAL 04 REGISTERS A FINE ZERO-POINT-FOUR-MILLIMETRE NOSE RADIUS BUILT FOR SEMI-FINISHING OR FINISHING APPLICATIONS.
THIS SHARPER NOSE GEOMETRY SUBSTANTIALLY LOWERS RADIAL CUTTING FORCES COMPARED TO TRADITIONAL ZERO-POINT-EIGHT CONFIGURATIONS.
THE METALLURGICAL GRADING PV720 LEVERAGES AN ADVANCED CERMET SUBSTRATE TO RESIST BUILT-UP EDGES AND PLASTIC DEFORMATION.
THE OUTSIDE SHELL INCORPORATES KYOCERA’S MEGACOAT NANO PVD LAYER TO SUSTAIN EXCEPTIONAL COMPONENT SURFACE MIRROR FINISHES.
IT IS TUNED SPECIFICALLY TO DELIVER STABLE PROLONGED PERFORMANCE CORES WHEN MACHINING CARBON, ALLOY, AND DIE STEELS.
MACHINISTS INDEX THE CONSUMABLE THROUGH SIX TOTAL DISTINCT EDGES MINIMIZING SHOP INVENTORY AND DOWN TIME COSTS.
