  • TNMG 160408 PR1535

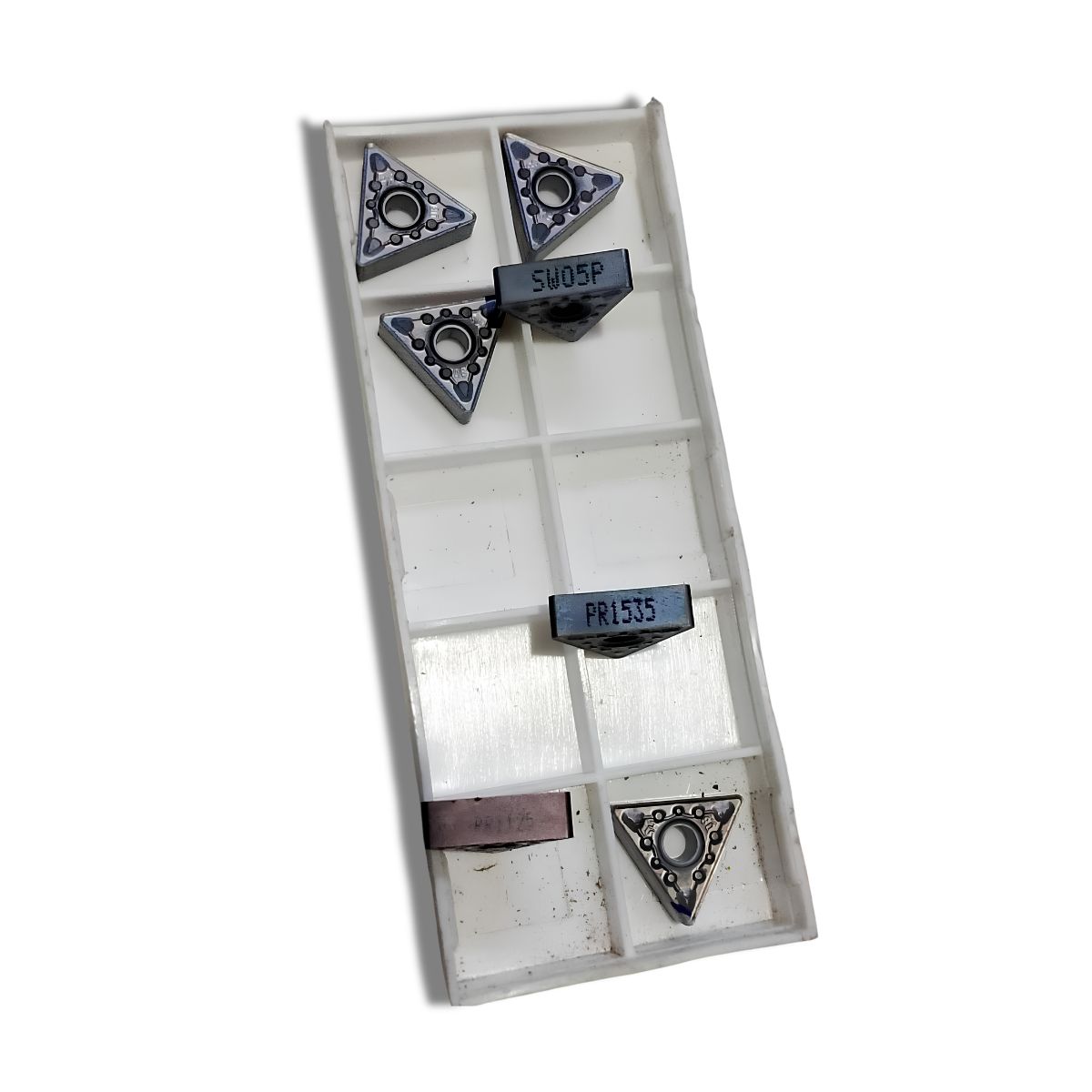

TNMG 160408 PR1535

TNMG 160408 PR1535

Brand: TOOLFARM

.THE TNMG 160408 PR1535 IS A HIGH-PERFORMANCE, MULTI-EDGE NEGATIVE TRIANGULAR TURNING INSERT,BECAUSE OF ITS 60° TRIANGULAR SHAPE AND NEGATIVE 0° CLEARANCE ANGLE, IT IS MOUNTED IN RIGID TURNING HOLDERS TO PERFORM HIGH-STRENGTH LONGITUDINAL TURNING, FACING, AND MEDIUM-TO-ROUGH PROFILE MACHINING.

₹450.00

₹450.00

Share on:
  • INSERT SHAPE (T): 60° TRIANGULAR SHAPE, OFFERING UP TO 6 DISTINCT CUTTING EDGES (3 PER SIDE) DUE TO ITS NEGATIVE GEOMETRY.

  • CLEARANCE ANGLE (N): 0° NEGATIVE CLEARANCE ANGLE DESIGNED TO PERMIT DOUBLE-SIDED USE AND DELIVER HIGH STABILITY AND EDGE STRENGTH.

  • TOLERANCE CLASS (M): CLASS M GEOMETRIC SPECIFICATION TO ENSURE ACCURATE MOUNTING REPEATABILITY IN CNC APPLICATIONS.

  • HOLE & CHIPBREAKER DESIGN (G): DOUBLE-SIDED CYLINDRICAL HOLE DESIGN FEATURING A BUILT-IN MOULDED CHIPBREAKER CAPABLE OF MANAGING HIGH FEED PATHS.

  • CUTTING EDGE LENGTH (16): NOMINAL CUTTING EDGE LENGTH MEASURING 16.5 MM.

  • THICKNESS (04): STANDARD INSERT THICKNESS MEASURING 4.76 MM.

  • CORNER RADIUS (08): PRECISION NOSE RADIUS OF 0.8 MM ENGINEERED FOR ROBUST ROUGHING, TOUGH CORNER IMPACTS, AND IMPROVED MATERIAL REMOVAL RATES.

  • CARBIDE GRADE (PR1535): KYOCERA'S MEGACOAT NANO PVD-COATED TOUGH SUBSTRATE. THIS COATING COMBINES EXTREME RE-HARDNESS AND HIGH THERMAL STABILITY, DRASTICALLY REDUCING EDGE WEAR DURING THERMAL CYCLING.


PRIMARY APPLICATIONS & ADVANTAGES
  • MATERIAL SUITABILITY: HIGHLY OPTIMISED FOR ISO M (STAINLESS STEEL) AND ISO S (HEAT-RESISTANT SUPERALLOYS / INCONEL), ALONG WITH INTERRUPTED CUTS IN MEDIUM CARBONS. [1]

  • CHIP CONTROL CAPACITY: ACCLAIMED FOR CHIP BREAKING ACROSS DIFFICULT, GUMMY STAINLESS STRANDS, SUBSTANTIALLY DECREASING HEAT RE-ACCUMULATION ON THE BLADE TIP.
