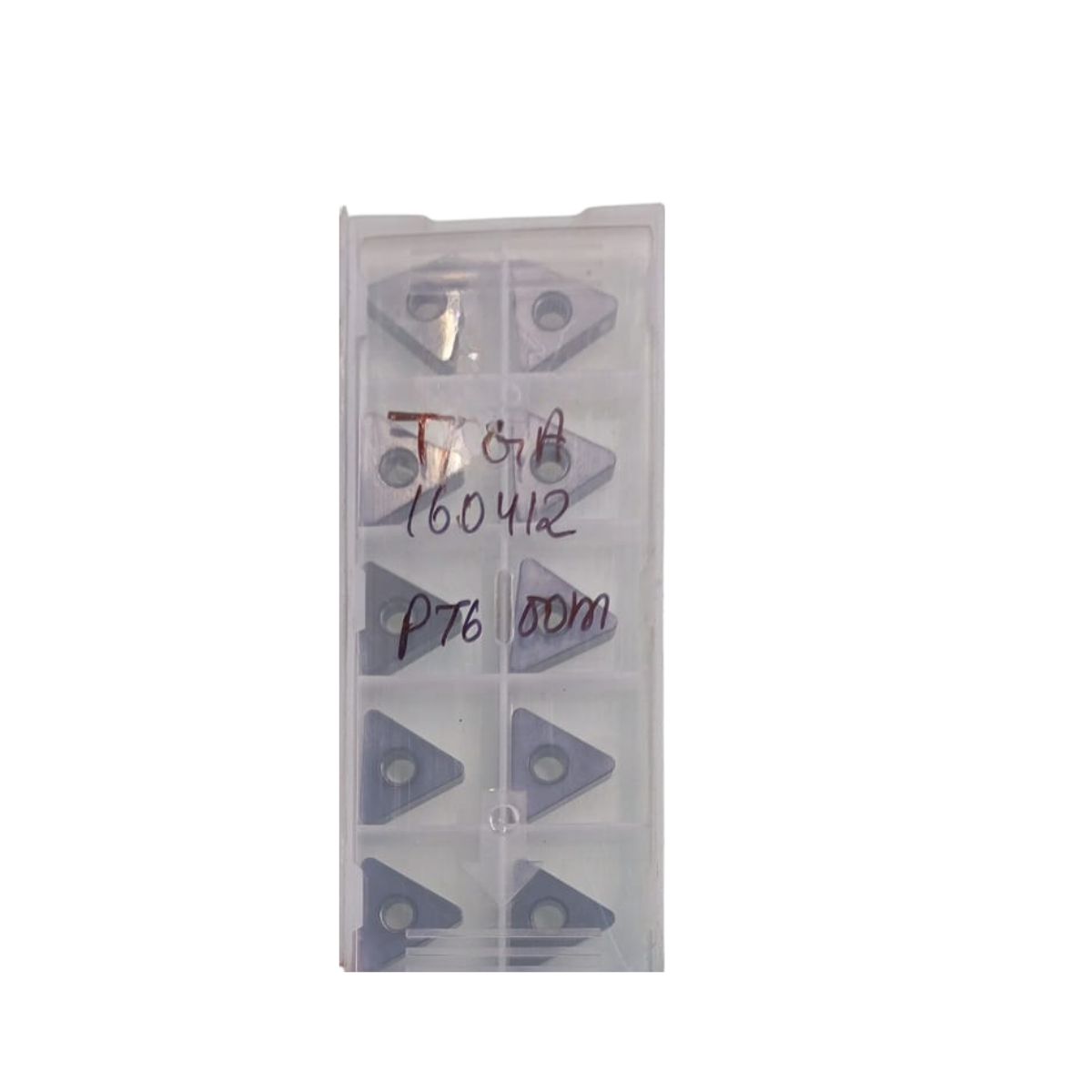

    • TNMG 160412 PT600M
    TNMG 160412 PT600M

    TNMG 160412 PT600M

    Brand: KYOCERA

    INSERT PROFILE: STANDARD 60-DEGREE TRIANGULAR NEGATIVE RAKE SHAPE (TNMG 160412) FEATURING SIX USABLE HIGH-RIGIDITY CUTTING BOUNDARIES.MATERIAL GRADE: KYOCERA PT600M GRADE, A ROBUST AL2O3+TIC (ALUMINA-TITANIUM CARBIDE) MIXED CERAMIC SUBSTRATE GEOMETRY.COATING LAYER: SHIELDED WITH A ULTRA-THIN PVD MEGACOAT COATING LAYER DESIGNED TO PREVENT SEVERE HIGH-SPEED CRATER WEAR EXPANSION.

    ₹650.00

    ₹650.00

    Share on:
    product details
    • BRAND STANDARD: “Kyocera products are widely acknowledged in the market for their high quality.” bringing extreme processing reliability to harsh industrial setups.
    • SHAPE GEOMETRY: COMPRISES A T-TYPE 60-DEGREE EQUILATERAL TRIANGULAR DRIFT PROFILE CAPABLE OF COOPERATIVE FACING AND LONGITUDINAL SWEEPS.
    • CLEARANCE ANGLE: BUILT WITH AN N-TYPE ZERO-DEGREE NEGATIVE SIDE CLEARANCE RAKE TO PROMPT MAXIMUM STRESS ABSORPTION BACKING SUPPORT.
    • TOLERANCE FORMAT: CONFORMS EXCLUSIVELY TO M-CLASS DIMENSIONAL STANDARDS TO MAINTAIN INTERCHANGEABLE SEATING RUNOUT RATIOS ACROSS REPLACEMENTS.
    • FIXING INTERFACE: MOLDED WITH A G-TYPE HOLLOW CYLINDRICAL RETENTION BARREL COMPATIBLE WITH DOUBLE-SIDED CHIPBREAKER GROOVE CONFIGURATIONS.
    • EDGE MEASUREMENT: CONSTRUCTED WITH A NOMINAL 16 MM SIDE CHAMBER EDGE LENGTH COMPATIBLE WITH HEAVY-DUTY INDUSTRIAL LATHE HOLDERS.
    • BODY THICKNESS: MARKED WITH THE 04 SPECIFICATION TRANSLATING TO A STRUCTURAL BLOCK REINFORCEMENT THICKNESS OF EXACTLY 4.76 MM.
    • NOSE RADIUS: FITTED WITH A LARGE 1.2 MM NOSE RADIUS PARAMETER DESIGNED TO ABSORB INTENSE FEEDS AND CREATE SUPERIOR SURFACE FINISHES.
    • SUBSTRATE MATRIX: “PT600M (Al2O3+TiC + MEGACOAT) achieves superior tool life for hardened material, and cast iron machining…” through advanced metallurgy.
    • MICROSTRUCTURE FINENESS: “Sudden fracture is controlled through miniaturization of the ceramic structure.” protecting edges against severe thermal fragmentation loads.
    • OXIDATION RESISTANCE: “Special PVD coating controls crater wear and achieves stable machining with superior oxidation resistance.” at high thermal thresholds.
    • COST EFFICIENCY: “Excellent cost efficiency for high hardness material machining.” competing directly with expensive CBN options at lower pricing thresholds.
    • PRIMARY APPLICATION: “The optimum choice for applications in continuous to light interrupted cuts.” across pre-hardened industrial components.
    • TARGET MATERIALS: PURPOSE-BUILT FOR PRECISION LATHING SPECIFICATIONS ACROSS GREY CAST IRON MOULDS AND HARDENED CARBON ALLOY DIE STEELS.
      • EDGE ECONOMY: DELIVERS SIX HIGH-STRENGTH USABLE TURNING CORNERS PER INSERTS DRASTICALLY DROPPING OVERALL RUNNING PRODUCTION CHARGE.
