  • TPKT 180408-0250 TT6030
  • TPKT 180408-0250 TT6030

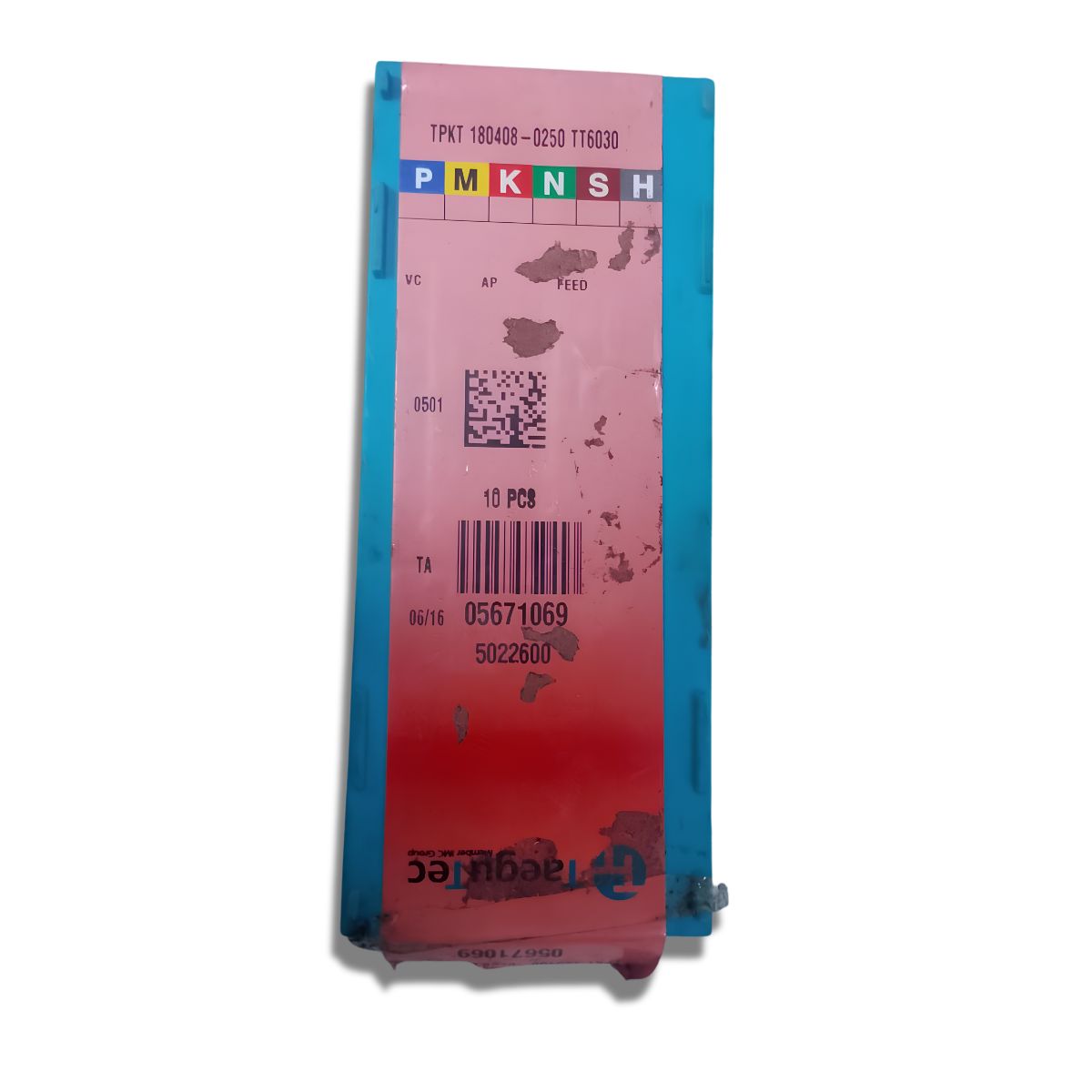

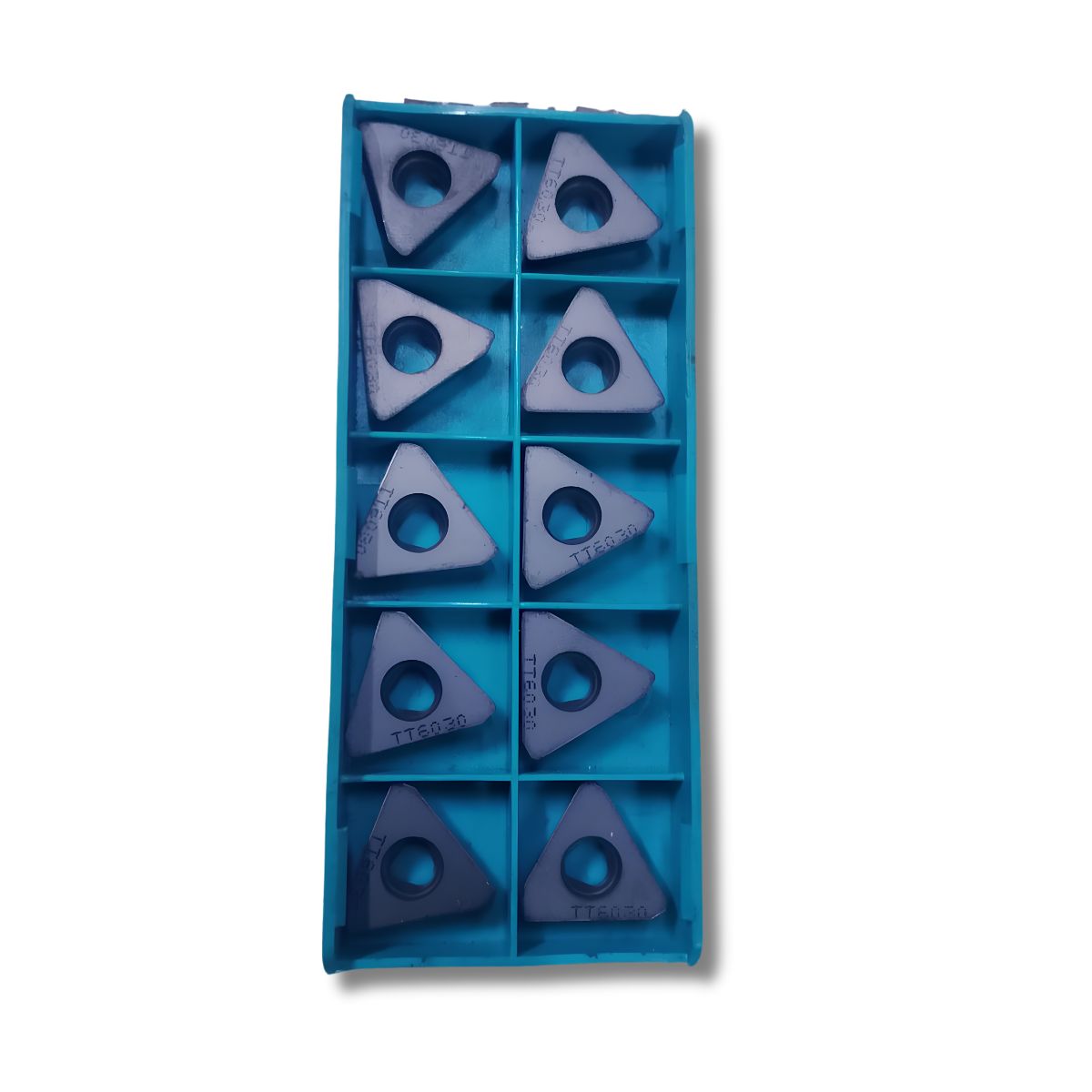

TPKT 180408-0250 TT6030

TPKT 180408-0250 TT6030

Brand: TAEGUTEC

THE TPKT 180408-0250 TT6030 IS A HIGH-PERFORMANCE, INDEXABLE MILLING INSERT MANUFACTURED BY TAEGUTEC. FEATURING A HIGH-POSITIVE HEAL-ANGLE DESIGN PAIRED WITH AN ADVANCED COATED TOUGH GRADE, IT IS DESIGNED SPECIFICALLY FOR SHOULDER MILLING AND HIGH-FEED FACE MILLING OPERATIONS.

₹700.00

₹700.00

Share on:
product details

INSERT FAMILY / SERIES: TPKT (TAEGUTEC'S EXPAND-2-MILL LINE, KNOWN FOR 90° PRECISION SHOULDER SQUARE ENTRANCE PATHS).
CUTTING EDGE LENGTH (18): REPRESENTS A NOMINAL HEAVY-DUTY LENGTH CODING OF 18.0 MM.
THICKNESS (04): METRIC STANDARD INSERT THICKNESS MEASURING 4.76 MM.
CORNER RADIUS (08): PRECISION NOSE CORNER RADIUS OF 0.8 MM TO RETAIN EDGE TOUGHNESS AND PROTECT CORNER LIFE.
WIPER LOBE EXTENSION (-0250): SPECIFIES AN INTEGRATED 2.5 MM WIDE WIPER FLAT SHAPING, TAILORED TO DELIVER EXTRAORDINARY CHIP SURFACE FINISHES AND HIGH PLANAR REPEATABILITY.
CARBIDE GRADE (TT6030): TAEGUTEC'S PREMIUM PVD-COATED HARD CARBIDE SUBSTRATE. IT COMBINES OUTSTANDING RESISTANCE TO THERMAL SHOCK AND CRATER WEAR, MAKING IT EFFECTIVE FOR INTERRUPTED CUTS.
PRIMARY APPLICATIONS & ADVANTAGES
PRODUCT CATEGORY: MILLING INSERT.
MATERIAL SUITABILITY: SPECIALLY OPTIMISED FOR ISO K (CAST IRON, DUCTILE IRON) AND MULTI-PURPOSE ISO P (CARBON AND ALLOYED STEELS).
90° SHOULDER PRECISION: ENGINEERED TO DELIVER TRUE 90-DEGREE SIDE WALL SHOULDERS WITHOUT CREATING MULTI-STEP DISCREPANCIES DURING REPEATED TRANSVERSAL PASSES
