  • TTEL 2020 2C T10
  • TTEL 2020 2C T10

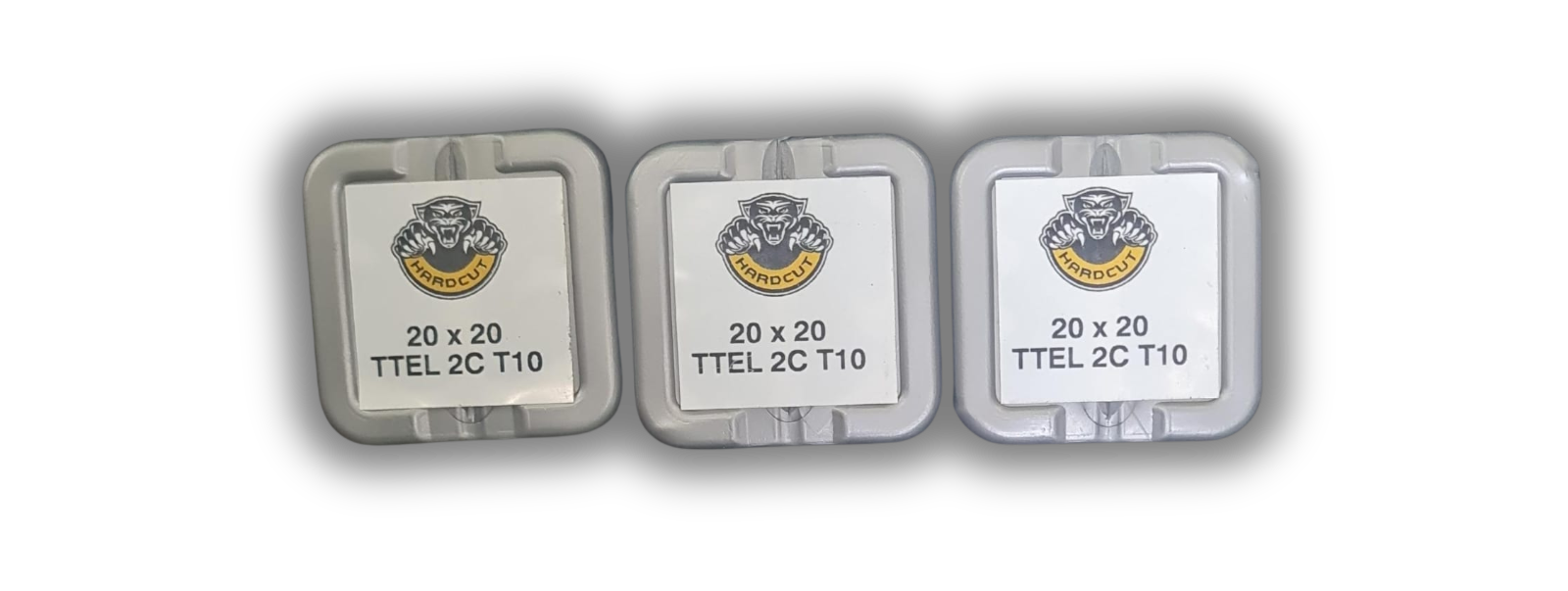

TTEL 2020 2C T10

TTEL 2020 2C T10

Brand: HARDCUT

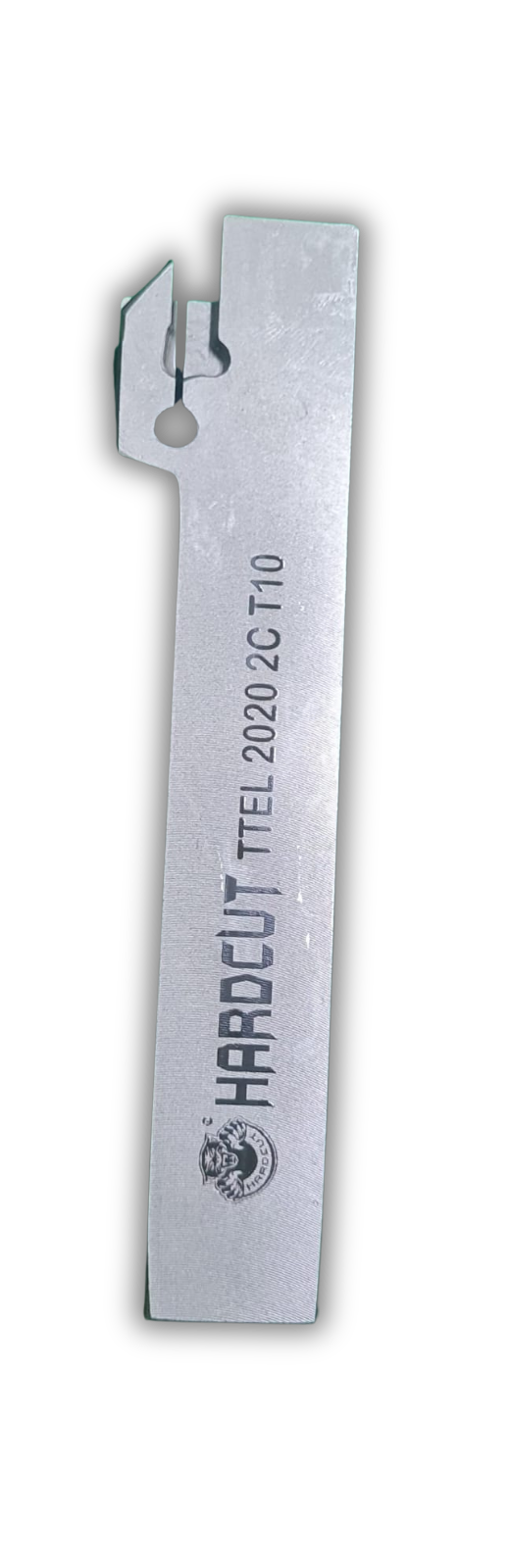

The model designation TTEL 2020 2C T10 represents a professional-grade external left-hand face grooving, parting, and turning toolholder.

₹1800.00

₹1800.00

Share on:
product details
  • TTEL: Designates an External Left-Hand (L) face grooving and turning toolholder body.
  • 2020: Indicates a square-shank mounting footprint measuring 20 mm height \(\times \) 20 mm width (\(0.787" \times 0.787"\)). This sizing makes it an ideal fit for medium-sized CNC lathes and manual tool posts.
  • 2C: Specifies the exact insert seat capacity, precision-milled to rigidly clamp 2.0 mm wide grooving inserts (such as TaeguTec's TDC 2 or TDT 2 series).
  • T10: Details the maximum axial groove cutting depth (\(T_{max}\)) of 10 mm (\(0.394\) inches) before the shoulder of the holder body interferes with the workpiece face.
