  • TTEL 3232 3C T25
  • TTEL 3232 3C T25
  • TTEL 3232 3C T25
TTEL 3232 3C T25

TTEL 3232 3C T25

Brand: HARDCUT

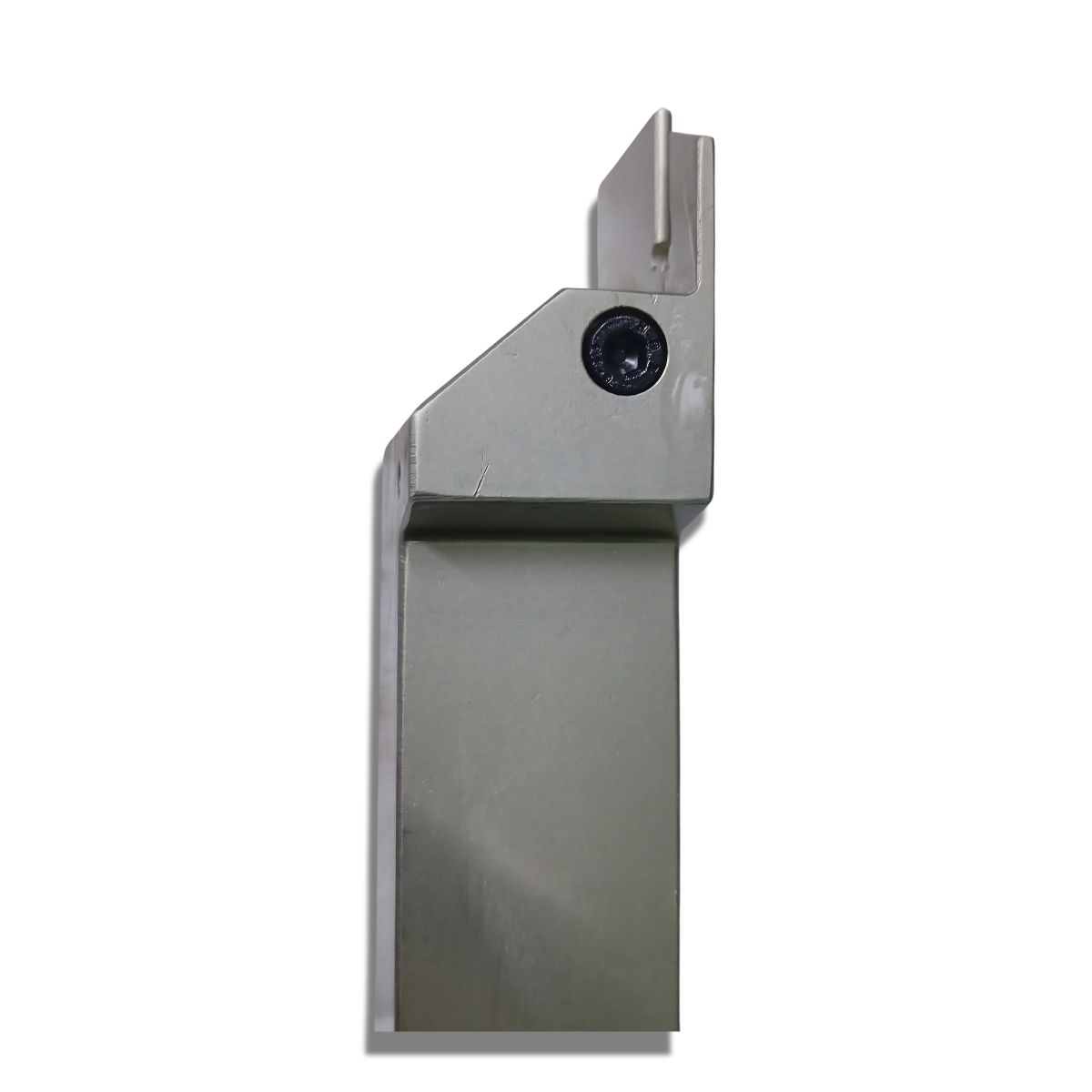

The TTEL 3232 3C T25 is a highly rigid, standard layout left-hand external grooving, turning, and parting-off tool holder manufactured, It is specifically engineered to accommodate 3 mm wide indexable inserts and allows for a maximum cutting or parting depth of 25 mm.

₹3500.00

₹3500.00

Share on:
product details

Inserts: TDC 3, TDXU 3, or TDT 3 (3.0 mm nominal width) grooving or parting inserts.
Clamping Screw: Typically uses an internal Hex/Torx screw system providing high down-force without top obstruction.
Deep Parting-Off: Because it features a 25 mm depth reach (T25), it can completely part off solid bars up to 50 mm in diameter from the outside edge.
Side Turning & Profiling: The pocket architecture allows the insert to withstand heavy side-forces, letting you transition smoothly from cutting a plunge groove to lateral turning without switching tool positions.

Code Segment SpecificationMeaning

TT

Tool Family

T-Clamp system (TaeguTec's flagship parting & grooving line).

E

Application Type

External outer diameter machining operations.

L

Hand of Tool

Left-hand configuration cutting orientation.

3232

Shank DimensionsHeavy-duty 32 mm height × 32 mm width square shank body.

3C

Insert Seat WidthTailored specifically for 3.0 mm wide inserts (The "C" denotes a specialized rigid insert pocket seating).

T25

Max Cutting DepthMaximum plunge/grooving depth capability (\(T_{max}\) = 25 mm) before the shank body interferes.
