  • TTER 2525 4C T35(200-300)
  • TTER 2525 4C T35(200-300)
TTER 2525 4C T35(200-300)

TTER 2525 4C T35(200-300)

Brand: HARDCUT

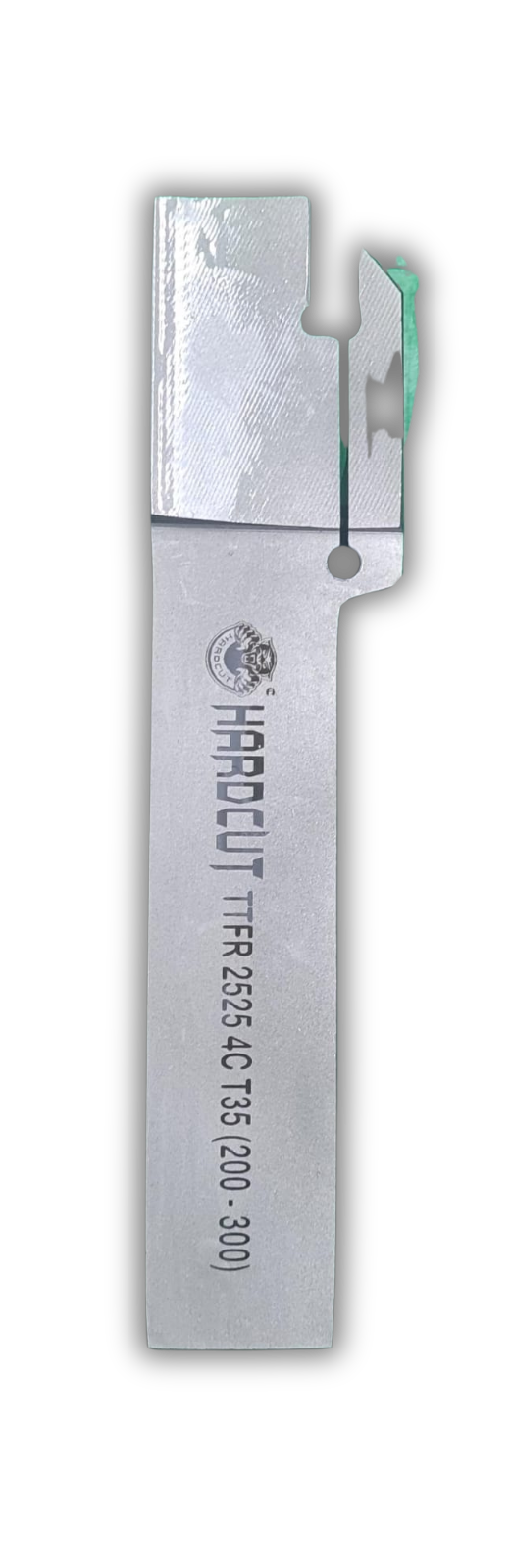

The model designation TTER 2525 4C T35(200-300) represents a high-performance external right-hand face grooving, parting, and turning toolholder.

₹3500.00

₹3500.00

Share on:
product details
  • TTER: Designates an External Right-Hand (R) parting, grooving, and turning toolholder body.
  • 2525: Indicates a heavy-duty square shank dimension of 25 mm \(\times \) 25 mm (\(0.984" \times 0.984"\)). This size provides maximum structural rigidity to withstand high plunging forces.
  • 4C: Specifies the exact insert seat capacity, built to securely clamp 4.0 mm wide indexable grooving inserts (such as TaeguTec's TDC 4 or TDT 4 series).
  • T35: Details the maximum axial groove cutting depth (\(T_{max}\)) of 35 mm (\(1.378\) inches) before the shoulder of the holder body interferes with the workpiece face.
    • (200-300): Identifies the targeted Face Grooving Diameter Range (\(D_{min} - D_{max}\)). The radial curvature of the blade is precision-ground exclusively to clear face grooves starting at an inside diameter of 200 mm up to a maximum outside diameter of 300 mm. Trying to use this holder on smaller diameters (e.g., a 50 mm ring) will cause the lower body of the tool to crash into the material curve.
