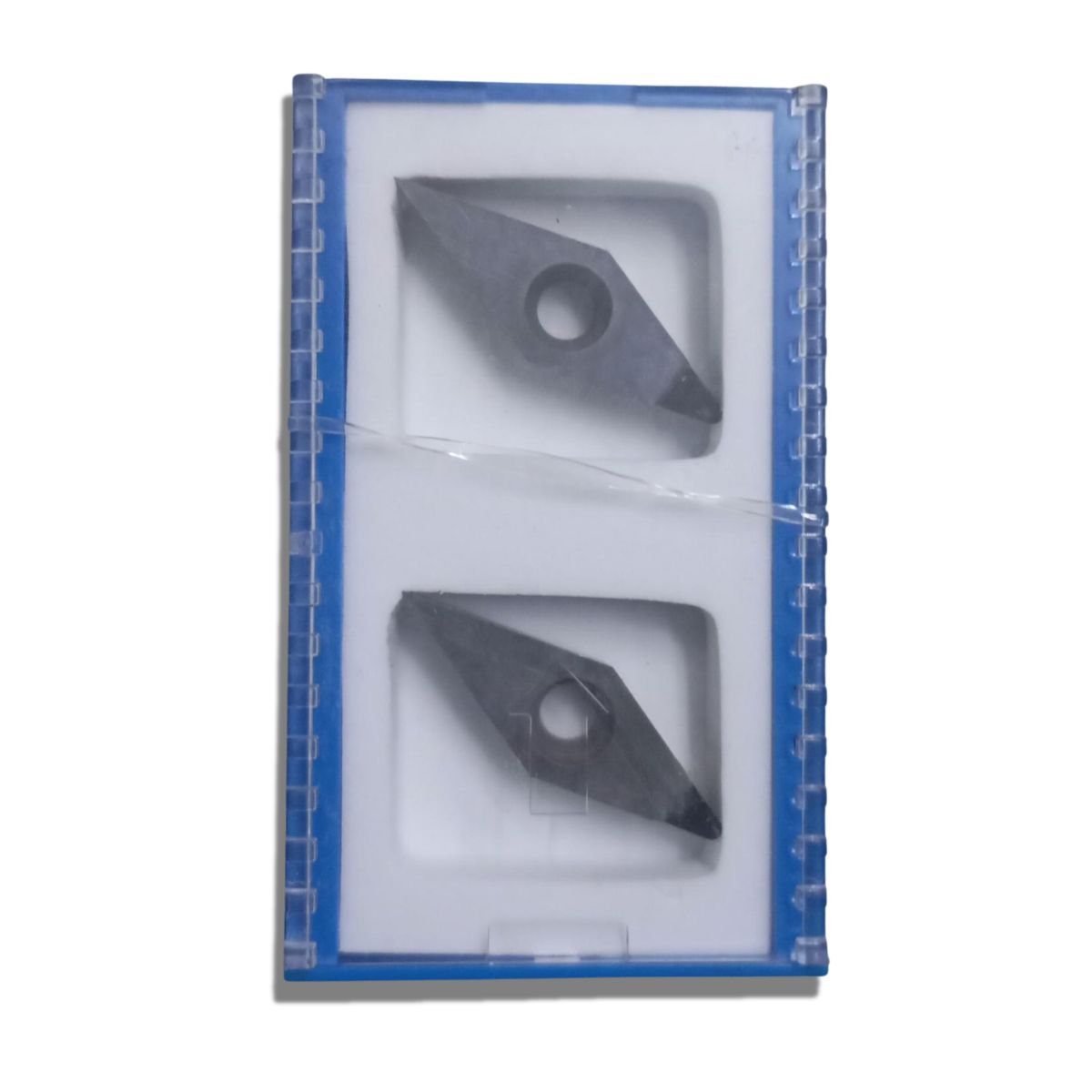

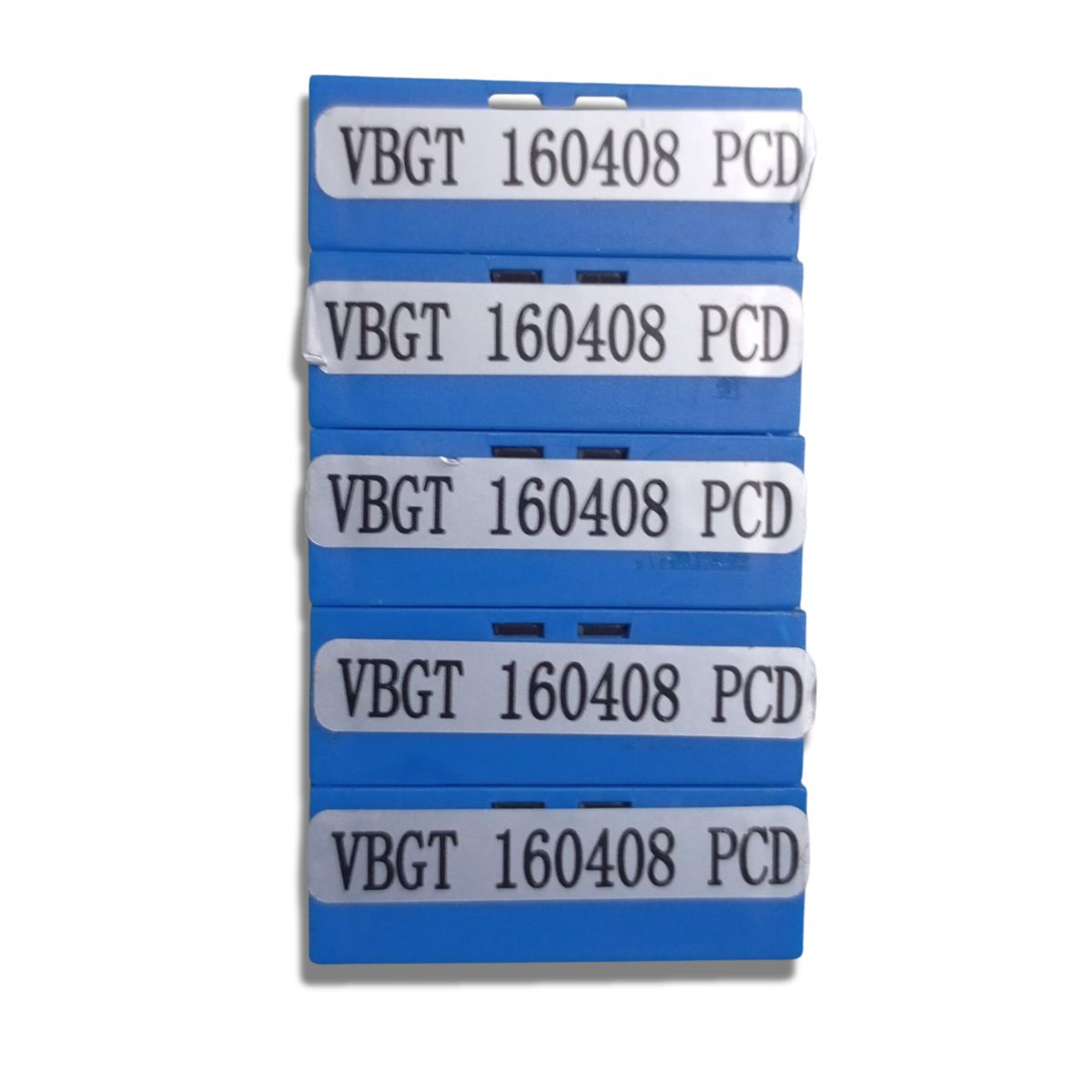

VBGT 160408 PCD

VBGT 160408 PCD

Brand: TOOLFARM

The VBGT 160408 PCD is a highly specialised, 35-degree pointed diamond indexable turning insert tipped with Polycrystalline Diamond (PCD).Because it combines a very sharp, narrow profil-ing head with a diamond cutting tip, it is classified as a precision ultra-fine finishing tool engineered exclusively for ISO Class "N" non-ferrous and highly abrasive non-metallic materials.

₹650.00

₹650.00

Share on:
product details

  • V: 35° Pointed Rhombic (Diamond) basic shape, optimized for intricate profiling, undercutting, and narrow profiling clearance.

  • B: 5° Positive side clearance angle to minimize tool rubbing and mechanical load.

  • G: High-precision ground periphery tolerance class, holding incredibly strict dimensional tolerances on finished parts.

  • T: Countersunk clamping hole configuration with a single-sided positive rake face.

  • 16: Nominal cutting edge length of exactly 16.6 mm.

  • 04: Standard industry body thickness of 4.76 mm.

  • 08: Corner nose radius of 0.8 mm, offering a robust cutting edge capable of handling clean feed rates while outputting an excellent surface finish.



🎯 Primary Material Applications
Because PCD chemically dissolves when it contacts iron at high cutting temperatures, this insert is used strictly on non-ferrous alloys:

  • High-Silicon Aluminium: Used heavily in automotive wheel machining and piston turning where silicon granules destroy regular carbide.

  • Abrasive Composites & Synthetics: Turning Carbon Fiber (CFRP), fiberglass, graphite blocks, and dense engineering polymers like PEEK.

  • Precious Non-Ferrous Metals: Frictionless mirror-skimming of copper, brass, bronze, and magnesium alloys without edge build-up.
