  • VBMT 110304 CBN

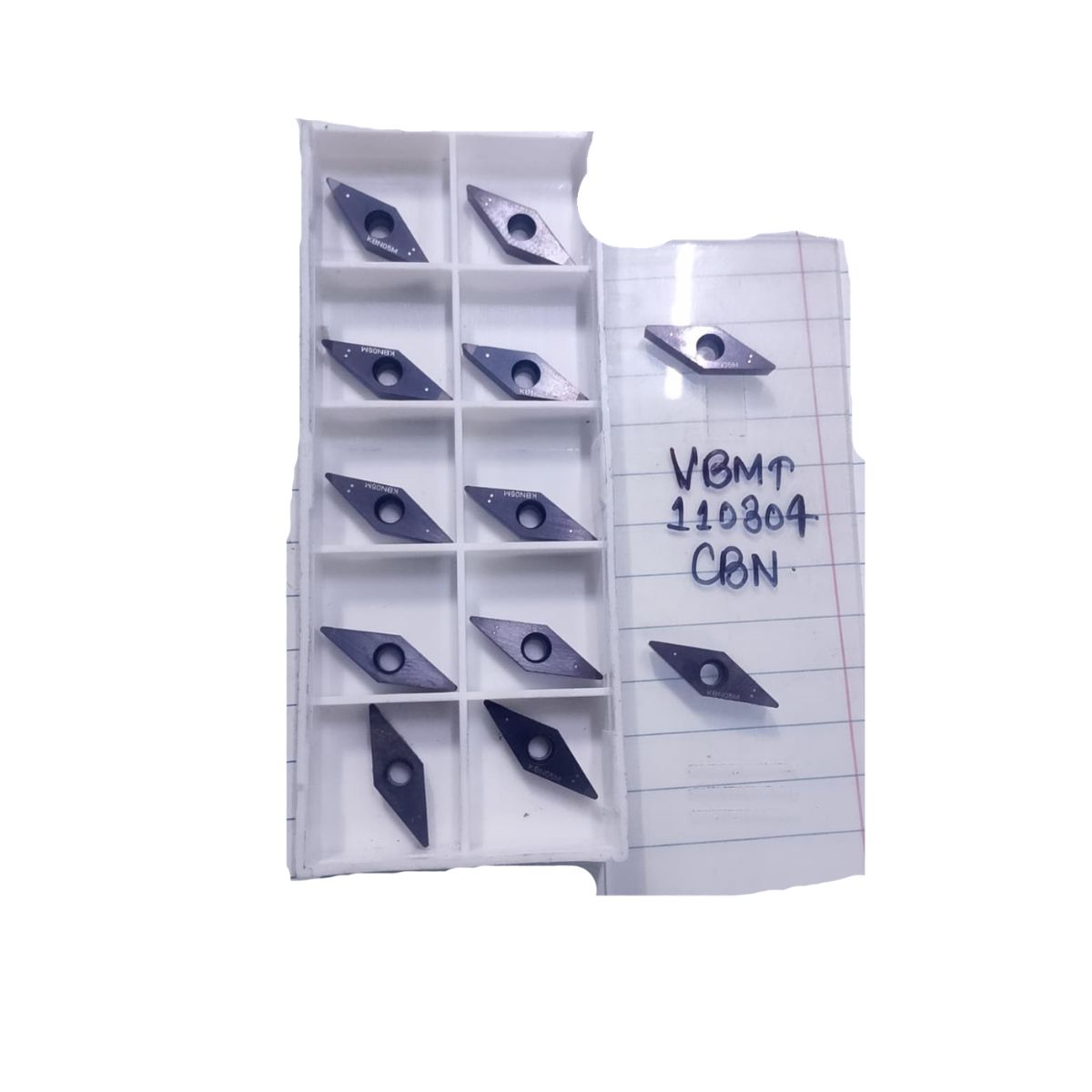

VBMT 110304 CBN

VBMT 110304 CBN

Brand: TOOLFARM

THE VBMT 110304 CBN IS A HIGH-PERFORMANCE, POSITIVE RHOMBIC TURNING INSERT. IT IS TIPPED WITH CBN (CUBIC BORON NITRIDE), WHICH IS THE SECOND-HARDEST MATERIAL AFTER DIAMOND, MAKING IT INDISPENSABLE FOR HIGH-SPEED FINISHING OF HARDENED INDUSTRIAL METALS.

₹1400.00

₹1400.00

Share on:
product details

INSERT SHAPE (V): 35° RHOMBIC (DIAMOND) SHAPE DESIGNED FOR NARROW PROFILE ACCESSIBILITY, SEVERE RE-ENTRANT CORNERS, AND COMPLEX CONTOUR BACK-TURNING.
CLEARANCE ANGLE (B): 5° POSITIVE CLEARANCE ANGLE DESIGNED TO MINIMISE FLANK FRICTION AND PREVENT CHATTER IN DELICATE BORING AND PROFILE PATHS.
TOLERANCE CLASS (M): CLASS M GEOMETRIC SPECIFICATION TO SECURE PRECISE SEATING REPEATABILITY WITHIN THE TOOL HOLDER POCKET.
CROSS-SECTION DESIGN (T): CENTRAL FIXING HOLE WITH A SINGLE-SIDED COUNTERSINK MOUNTING DESIGN AND A FLAT-TOP PROFILE EXCLUDING MOULDED CHIPBREAKERS.
CUTTING EDGE LENGTH (11): NOMINAL CUTTING EDGE LENGTH MEASURING 11.1 MM (INSCRIBED CIRCLE OF 6.35 MM / 1/4 INCH).
THICKNESS (03): NOMINAL METRIC THICKNESS INDICES MEASURING 3.18 MM.
CORNER RADIUS (04): PRECISION NOSE RADIUS OF 0.4 MM TAILORED FOR FINE SEMI-FINISHING TO SUPER-FINISHING PATHS WITH REMARKABLE CONTROL.
SUBSTRATE MATRIX (CBN): CONSTRUCTED WITH A HIGH-TOUGHNESS TUNGSTEN CARBIDE BASE MOUNTED WITH A BRAZED CUBIC BORON NITRIDE CUTTING EDGE TIP. IT PROVIDES EXCEPTIONAL HEAT HARDNESS CAPABLE OF STABLY CUTTING UNTIL THERMAL LOADS GLOW WITHOUT BREAKING DEVIATIONS.


SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
