  • WNMG 080408-CM.CP2430FS
  • WNMG 080408-CM.CP2430FS

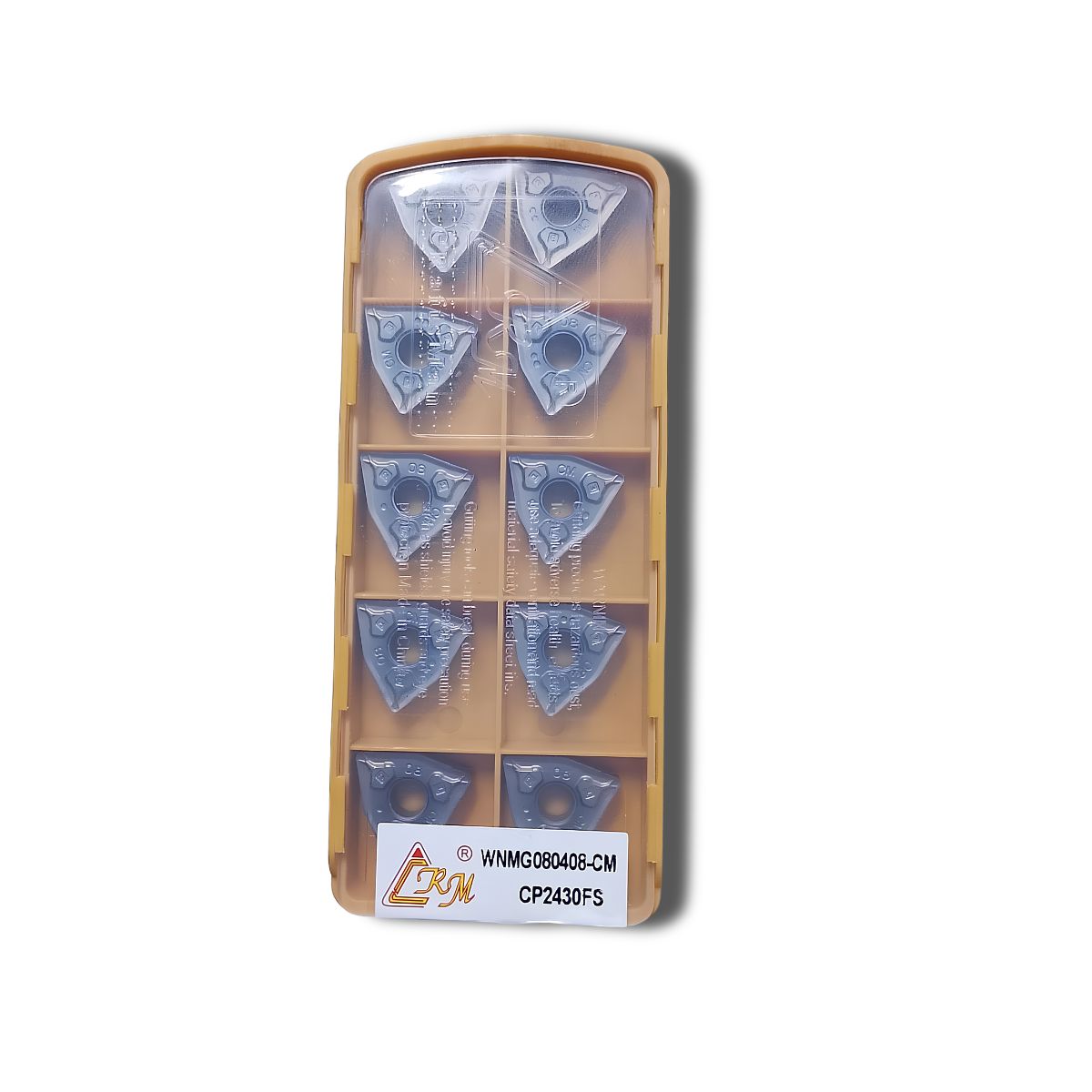

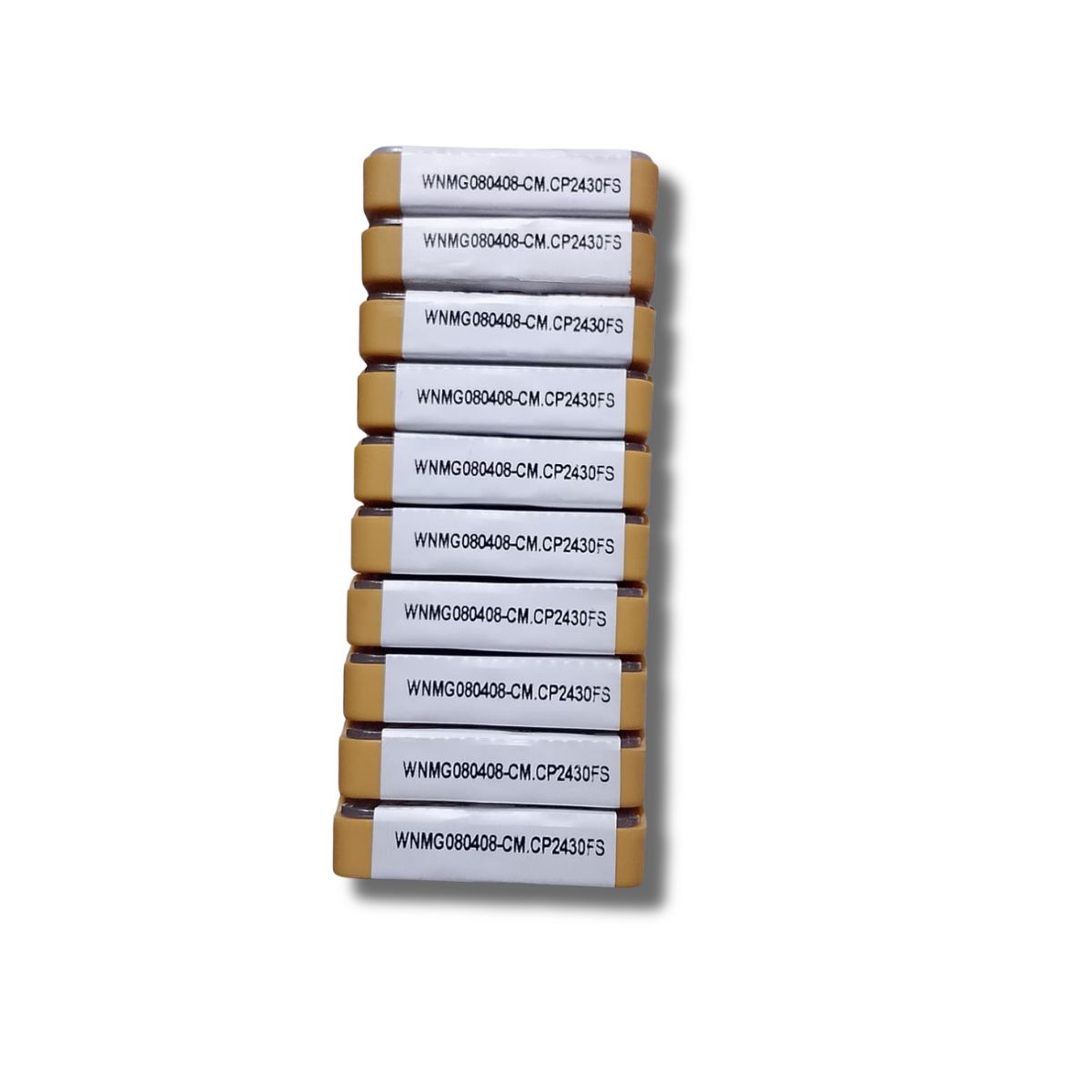

WNMG 080408-CM.CP2430FS

WNMG 080408-CM.CP2430FS

Brand: TOOLFARM

The code WNMG 080408-CM.CP2430FS refers to an indexable carbide turning insert used for CNC and conventional lathes. It is primarily designed for high-performance metal turning, specifically for semi-finishing and finishing difficult-to-machine materials like hardened and stainless steels .

₹425.00

₹425.00

Share on:
product details

Technical Specifications (ISO Breakdown)
W: Trigon shape (80° diamond/trigon indexable insert).
N: Negative rake angle (0° normal clearance angle).
M: Tolerance class (specifies the precision tier of the insert).
G: Hole and clamping configuration type (cylindrical hole with double-sided chipbreaker).
08: Inscribed circle size diameter (approx. 8 mm cutting edge length).
04: Insert thickness (4.76 mm).
08: Corner nose radius (0.8 mm for enhanced edge strength and smooth surface finishes).
Design Parameters & Grade
CM: Chipbreaker geometry specifically optimized for stable chip control during medium-duty turning, facing, and general processing.
CP2430FS: The manufacturer-specific hardmetal carbide grade. This grade typically integrates a specialised CVD or PVD wear-resistant coating layer (often featuring a vibrant "rainbow/multicolor" finish) optimized to resist heat deformation and plastic shearing when cutting high-temperature alloys and stainless steel

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
