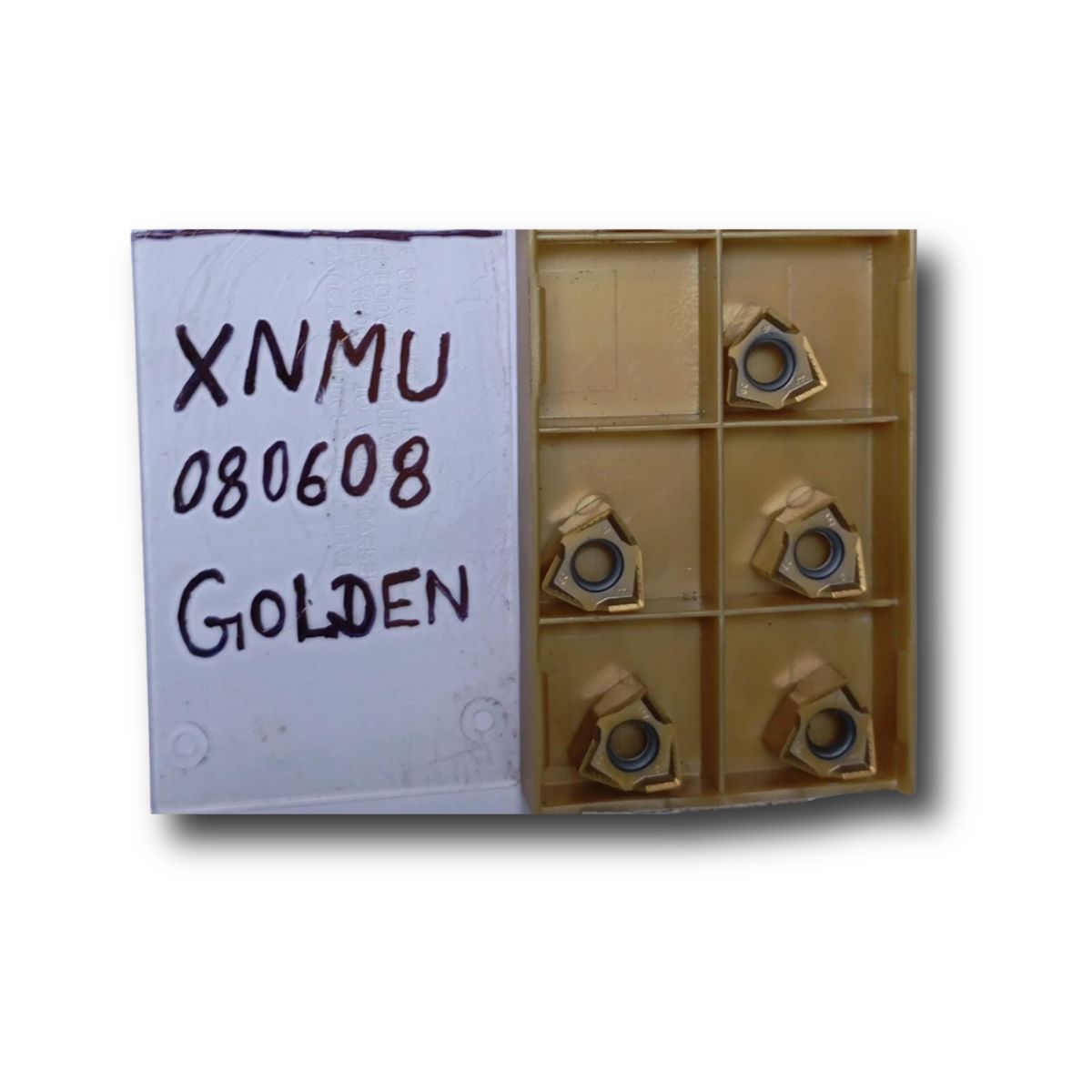

1. TECHNICAL CODE BREAKDOWN
X: DESIGNATES A SPECIAL / NON-STANDARD BASE GEOMETRY SHAPE (TYPICALLY A UNIQUE DOUBLE-SIDED PARALLELOGRAM WITH MULTIPLE HELICAL CUTTING FACETS DEVELOPED BY BRANDS LIKE PRAMET / DORMER PRAMET OR TAEGUTEC TO PROVIDE MAXIMISED ECONOMY AND EDGE STRENGTH).
N: INDICATES A NEGATIVE 0-DEGREE NORMAL CLEARANCE ANGLE, GIVING THE INSERT EXTRA SHOCK-ABSORBING MASS AND ENABLING CUTTING PROFILES ON BOTH THE TOP AND BOTTOM FACES TO DELIVER A TOTAL OF 4 TO 6 EFFECTIVE CUTTING EDGES.
M: REPRESENTATIVE NORMAL MANUFACTURING TOLERANCE CLASS GOVERNING THE INSCRIBED CIRCLE (IC) WIDTH AND HEIGHT CONFIGURATIONS FOR REPLICABLE MODULAR POSITIONING.
U: CONFIRMS A DOUBLE-SIDED DESIGN WITH INTEGRATED TOP AND BOTTOM PROFILING CHIPBREAKER RAILS AND A CENTRAL CYLINDRICAL HOLE FOR TORX-SCREW AXIAL LOCKING.
08: IDENTIFIES THE NOMINAL METRIC CUTTING EDGE LENGTH SCALE OF 8.00 MM.
06: SPECIFIES A HIGH-STABILITY, HEAVY-DUTY THICKNESS RATIO EQUAL TO 6.35 MM TO RADICALLY LOWER THE CHANCE OF STRUCTURAL CRACKING UNDER SEVERE LOADS.
08: DESIGNATES A PRECISION CORNER NOSE RADIUS OF 0.80 MM, WHICH ENHANCES MECHANICAL SHOCK BUFFERING CAPACITY WHILE SECURING STABLE SURFACE RATING PROFILE INTEGRITY.
2. KEY ATTRIBUTES & DESIGN
EXTREME BULK RIGIDITY: FEATURING AN INTENSIFIED THICKNESS RESILIENCE (6.35 MM) COMPARED TO AN 8 MM EDGE SPECTRUM, THIS CHIP ABSORBS SEVERE VIBRATIONS ENCOUNTERED WHEN BREAKING THROUGH HARD FOUNDRY SCALES OR INTERRUPTED ROUGH FACINGS.
HIGH REPLICABLE REDUNDANCY: REVERSIBLE RECEPTACLE GEOMETRIES PERMIT SEVERAL FRESH EDGE ROTATIONS BEFORE DISPOSAL, SIGNIFICANTLY SLASHING RUNNING COST-PER-PART EXPENDITURES IN MASS FABRICATION LINES.
HELICAL HIGH-FEED GEOMETRY: THE INTEGRATED POSITIVE RAKE PROFILE ENGAGES METALS SWIFTLY at SMALL ENTERING ANGLES. THIS DIRECTIONALISES FORCES AXIALLY UP THE CNC MACHINE SPINDLE, PERMITTING RAPID HIGH-FEED METAL SHAVING EXTRACTIONS WITHOUT STRUCTURAL COMPONENT DEFLECTION.
3. INDUSTRIAL APPLICATIONS
TARGET PROCESSES: DYNAMIC HIGH-FEED FACE MILLING, INTERRUPTED PLUNGE ROUGHING, POCKET RAMPING, AND PERIMETER SQUARING CYCLES.
COMPATIBLE HOUSINGS: MOUNTS IN HIGH-DENSITY LIVE MODULAR END MILLS AND MULTI-FLUTE SHELL MILL HEADS MANUFACTURED SPECIFICALLY FOR THE XNMU 08 FAMILY INSERTS.
COMMON WORKPIECES: HEAVY DIE/MOULD CAVITY BLOCKS, STRUCTURAL ALLOY BEAMS, AUTOMOTIVE CYLINDER HEAD CASTINGS, CORROSION-RESISTANT INDUSTRIAL PIPE FLANGES, AND FORGED ROUGH STEEL COMPONENT HOUSINGS.
