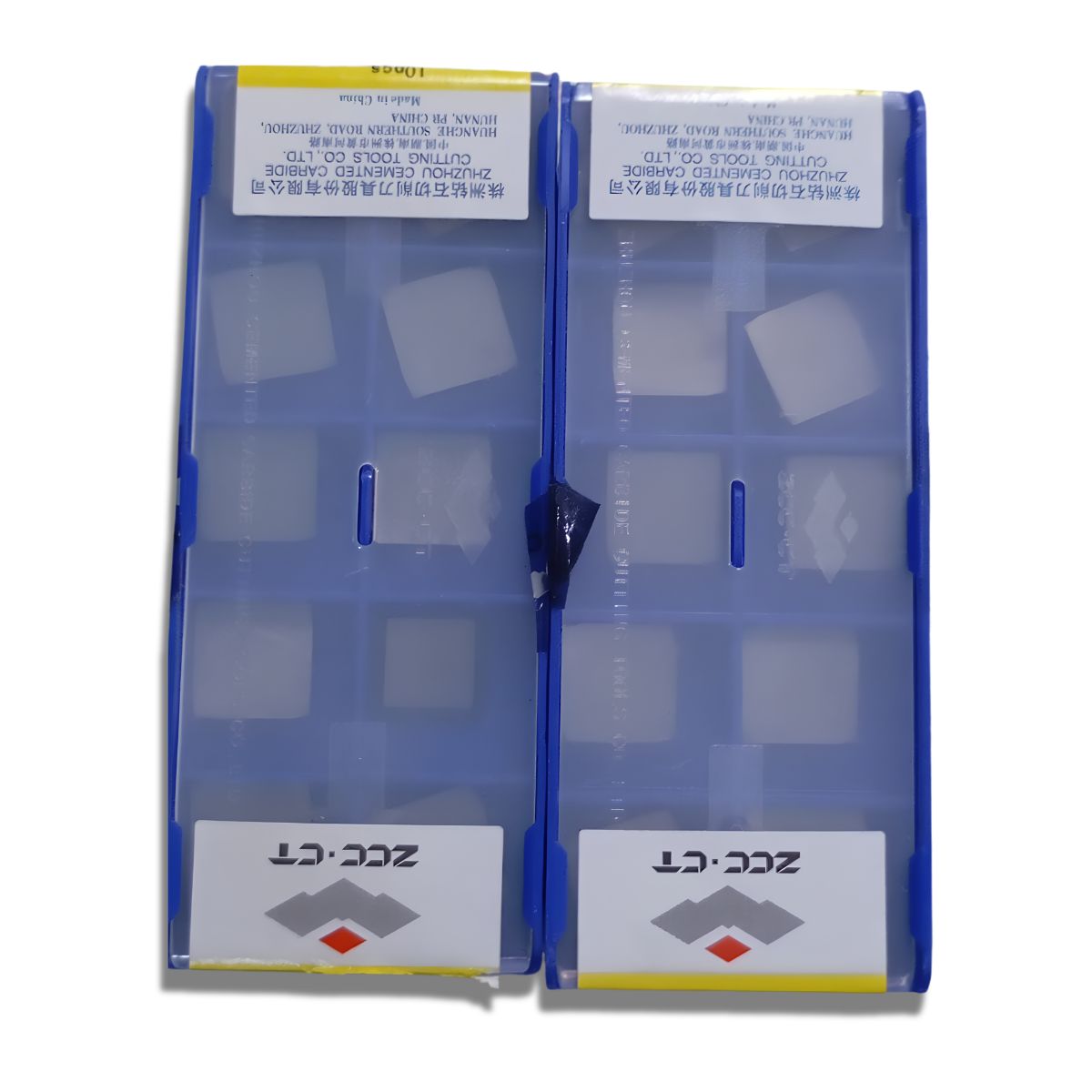

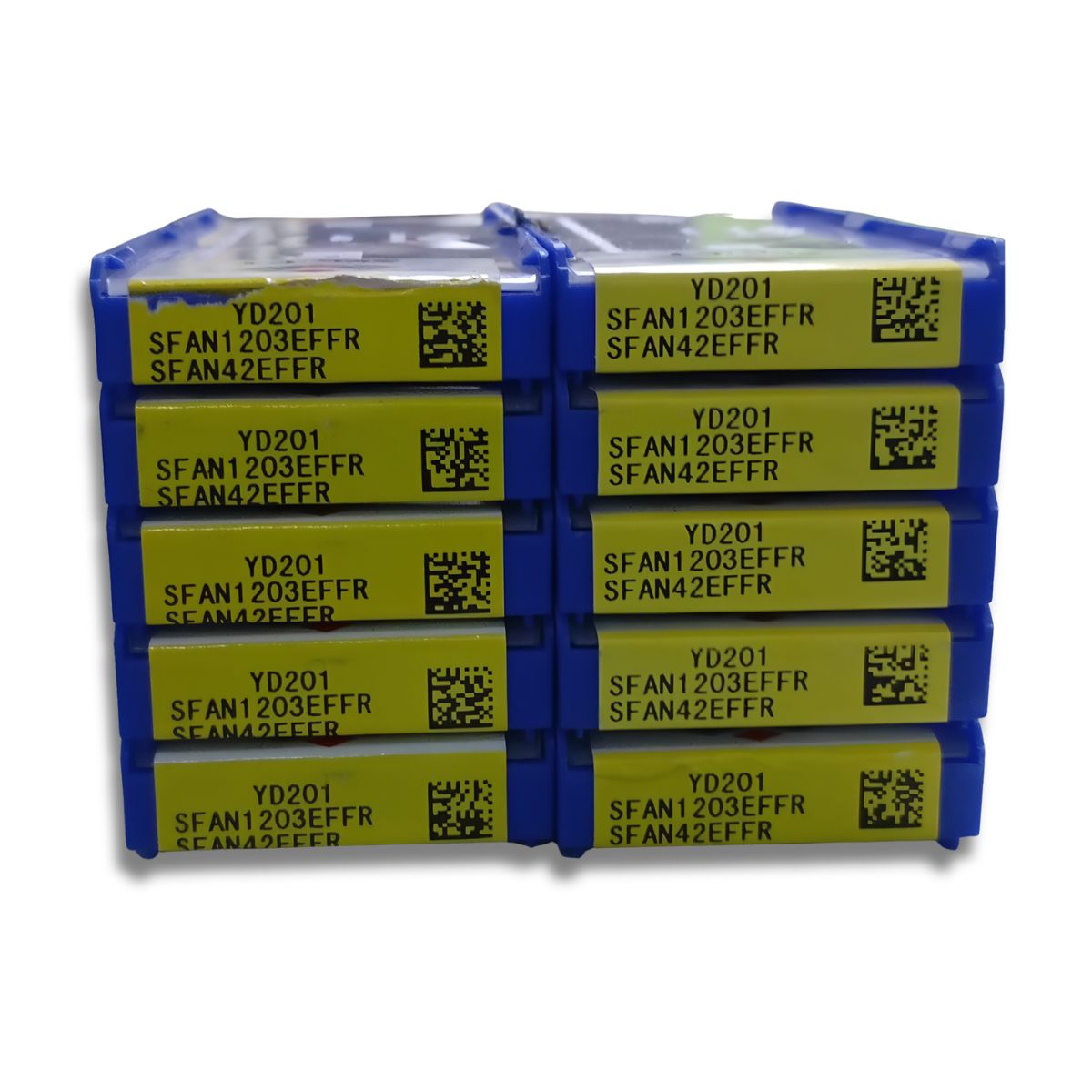

  • YD201 SFAN1203EFFR SFAN42EFFR
  • YD201 SFAN1203EFFR SFAN42EFFR
YD201 SFAN1203EFFR SFAN42EFFR

YD201 SFAN1203EFFR SFAN42EFFR

Brand: ZCCCT

The codes provided refer to a CNC indexable milling insert specification and its physical dimension variations, typically manufactured under the ZCC.CT (Zhuzhou Cemented Carbide Cutting Tools) system or matching standard metric profiles .

₹390.00

₹390.00

Share on:
product details
Core Component Breakdown

  • YD201: The specific uncoated tungsten carbide grade. It is highly optimized for semi-finishing to roughing operations on Non-Ferrous Metals (ISO N-class) like Aluminum and Copper alloys, as well as Cast Irons (ISO K-class). It delivers excellent wear resistance and sharp edge preservation.

  • SFAN: The standard ANSI/ISO shape code indicating a square-shaped 45-degree chamfer indexable face milling insert configuration.

  • EFFR: Indicates the edge preparation, precision class, hand orientation, and chipbreaker styling tailored for right-hand (R) high-feed finishing (EF) with mirror-like surface outcomes.


Dimensional Variations
While both share the same grade, geometry, and purpose, they differ strictly by their dimension sizing standard:

Feature / DimensionSFAN1203EFFRSFAN42EFFR

Measurement Standard

ISO Metric StandardANSI Inch Standard Equivalent

Inscribed Circle (IC)

12.7 mm

12.7 mm (1/2")

Thickness (S)

3.18 mm

3.18 mm (1/8")

Corner Radius / Facet

45° Chamfer Face45° Chamfer Face
