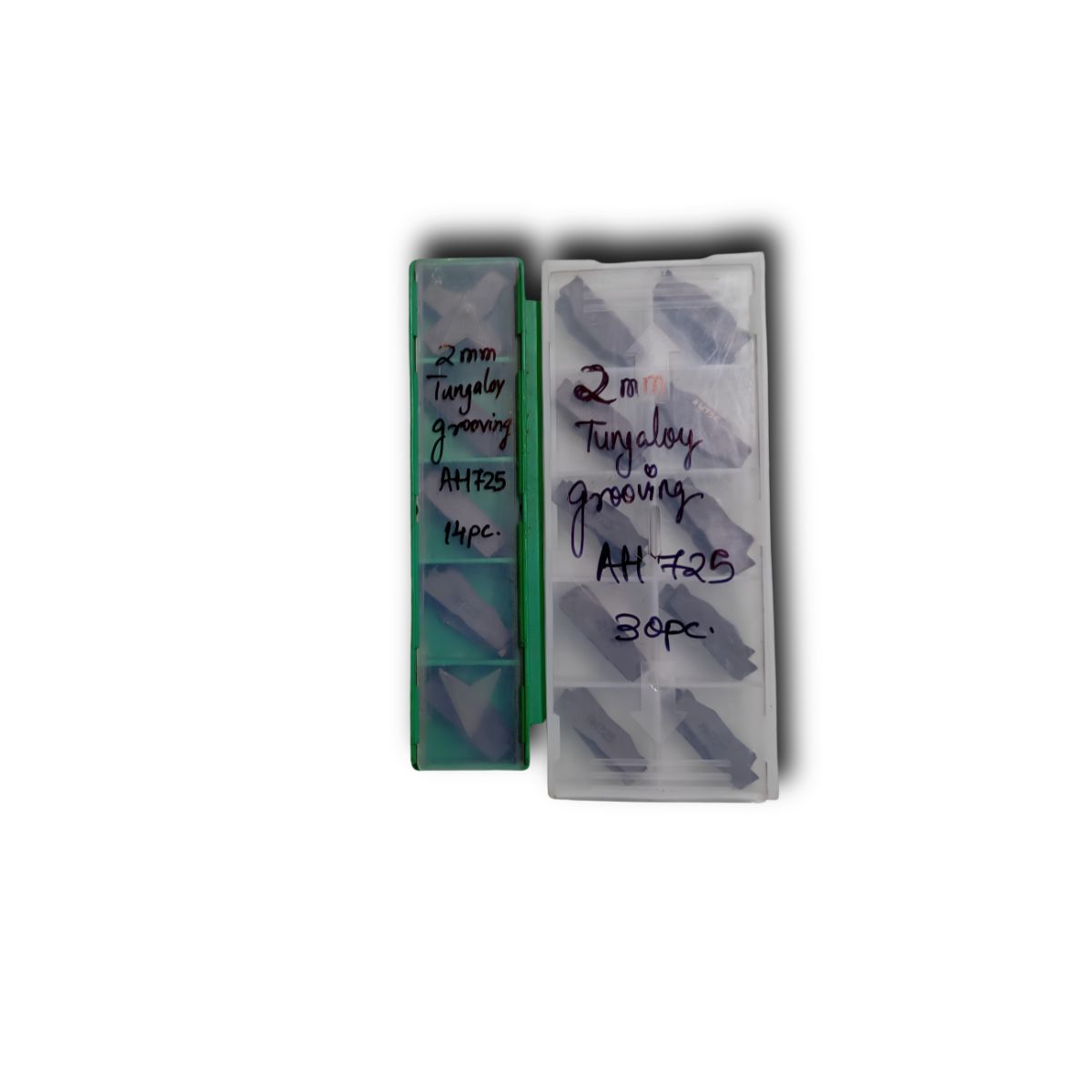

BRAND AGILITY: DEVELOPED BY TUNGALOY AS PART OF HIGH-RIGIDITY TOOL SERIES LIKE TungCut AND AddForceGroove TO MAXIMIZE PROCESS SECURITY IN CNC PRODUCTION.
SHAPE GEOMETRY: COMPRISES A DOUBLE-ENDED STRAIGHT BLADE PROFILE TO FACILITATE UNRIVALED CHIP SEGMENTATION INSIDE RADIAL GROOVE CHANNELS.
CLEARANCE ANGLE: BUILT WITH AN INTEGRATED POSITIVE RE-ENTRANT RAKE PROFILE TO LIMIT FLANK FRICTION DEFLECTION AGAINST RAPIDLY RECEDING CHANNEL WALLS.
TOLERANCE FORMAT: “Double-ended inserts, 1st choice for external grooving & parting, tolerance of insert width +/-0.05mm…” ensuring high clamping accuracy Tungaloy India.
FIXING ARCHITECTURE: FEATURING A HIGHLY STABLE BOTTOM LEVER-CLAMP OR SCREW-DOWN POCKET MATRIX LOCKING SYSTEM TO ERADICATE CHATTER VIBRATIONS.
EDGE MEASUREMENT: MACHINED SPECIFICALLY TO DELIVER AN EXACT NOMINAL CUTTING EDGE WIDTH (CW) PATTERN OF EXACTLY 2.00 MM.
NOSE RADIUS: TYPICALLY EQUIPPED WITH A 0.2 MM EXPANDED EDGE RADII (RE) PROVISION TO PROTECT SHARP OUTER TIP BOUNDARY STABILITY.
SUBSTRATE MATRIX: “AH725 features a super tough substrate along with a (Ti,Al)N coated layer providing 'Triple Force'.” for high impact absorption Tungaloy.
FRACTURE TOUGHNESS: “AH725 features extraordinary resistance to fracturing in interrupted cutting.” minimizing chip degradation across bumpy forgings Tungaloy.
APPLICATION SEGMENTATION: “P15 – P30 / M15 – M30 / K25 – K30 / S15 – S25. Good balance between wear and chipping resistance.” covering multi-material bounds Tungaloy.
ANTI-WELDING FOCUS: SMOOTH INERT COATING INTERFACES DRASTICALLY LOWER CHIP SLIDING RESISTANCE, REPELLING THE INCEPTION OF ACCUMULATED BUILT-UP EDGES (BUE).
CHIP SEGMENTATION: MOLDED TOP FACE CHIP RAMPS (LIKE DGM OR DGS) DEFLECT EMBEDDED STRAND BEADS INTO COMPACT FOLDED SHAPES FOR EFFORTLESS EVACUATION.
TARGET METALS: “Suitable for machining steel and stainless steel under general cutting conditions.” alongside ductile cast irons and superalloys Tungaloy.
MACHINING HORIZON: EXPERTLY ADAPTED FOR ACCURATE EXTERNAL CHANNEL LATHING, RAPID SOLID BAR PARTING-OFF, AND HIGH-FEED INTERNAL CYLINDER BORING.
EDGE ECONOMY: DELIVERS AN OPTIMIZED DUAL-CORNER INDEXING SYSTEM PER CARBIDE BLANK SUBSTANTIALLY EXPANDING UTILITY LIFE BEFORE COMPLETE REPLACEMENT.
