  • APKT 160408

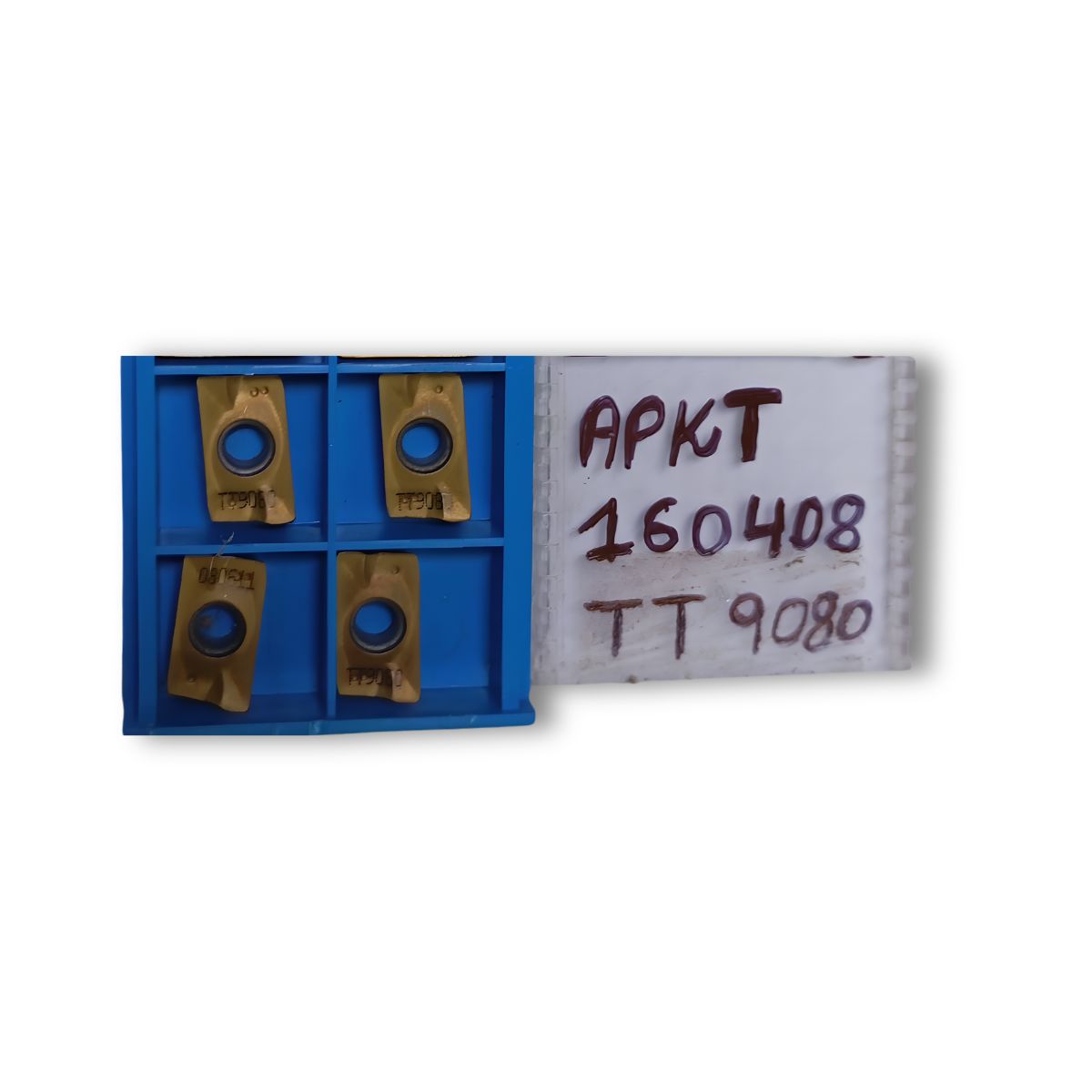

APKT 160408

APKT 160408

Brand: TAEGUTEC

APKT 160408 is an industry-standard, indexable carbide shoulder milling insert widely used in CNC machining for high-performance 90-degree square shoulder milling, face milling, and slotting operations. Its geometry features a highly positive helical cutting edge that reduces cutting forces and effectively evacuates chips .

₹400.00

₹400.00

Share on:
product details
ISO Code Structural Breakdown

  • A: Parallelogram shape with an 85-degree nose angle.

  • P: Positive flank relief with an 11-degree clearance angle.

  • K: Tighter milling tolerance class regulating height, thickness, and inscribed circle accuracy.

  • T: Single-sided insert profile featuring a countersunk clamping screw hole and chipbreaker.

  • 16: Nominal cutting edge length of 16.5 mm (approx. 0.629 inches).

  • 04: Nominal insert thickness of 4.76 mm (approx. 0.187 inches).

  • 08: Corner nose radius of 0.8 mm (approx. 0.031 inches) for edge strength and smooth surface finishes.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
