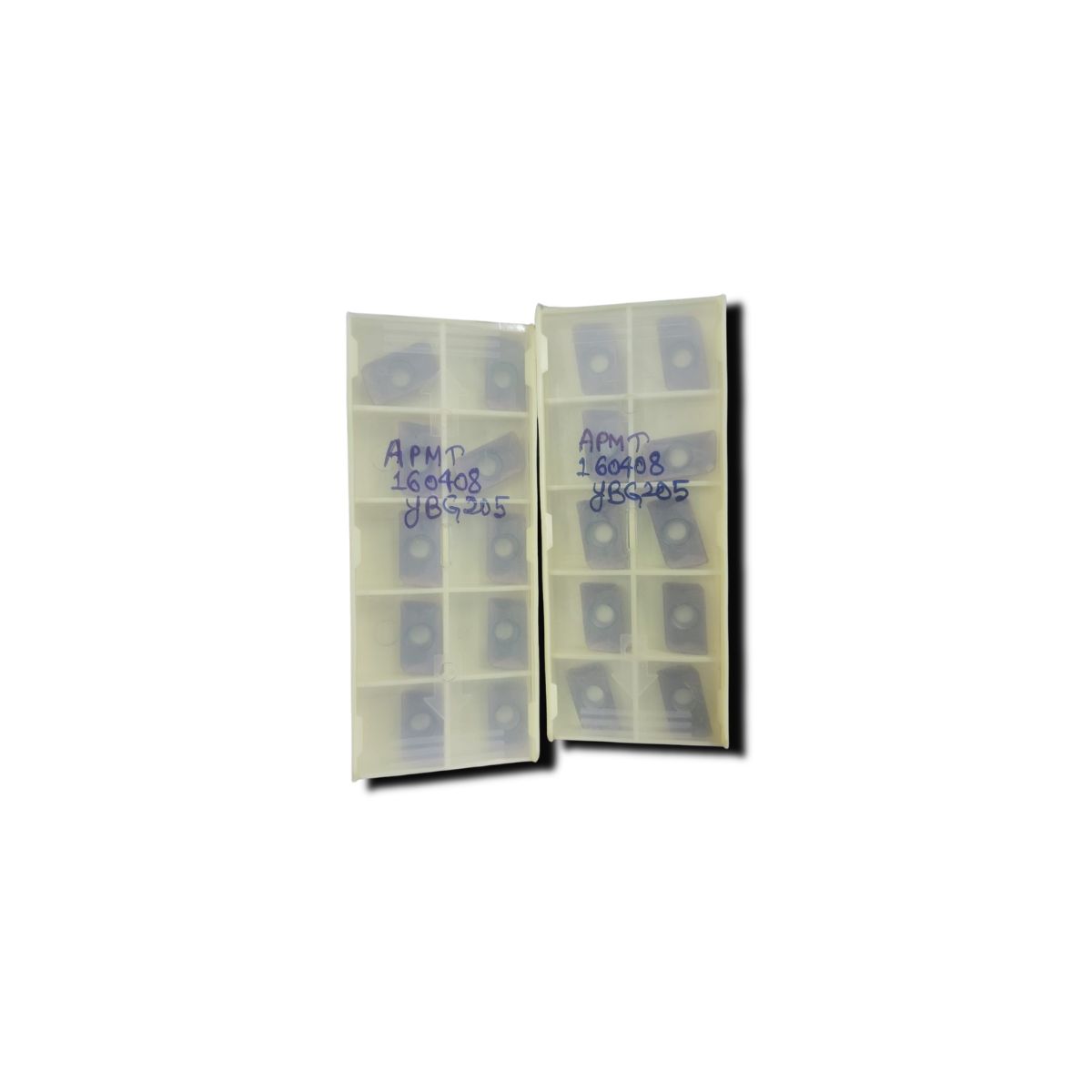

The APMT 160408 series from ZCC-CT is a primary workhorse standard across global CNC and VMC machine shops. The standard 85-degree parallelogram geometry is tailored to yield exact 90-degree square vertical steps on workpieces. The "A" prefix designates the parallelogram shape, while the "P" points to an 11-degree positive relief angle layout. This sharp, positive relief profile slices cleanly through raw stock rather than pushing against it under heavy load. The "16" value indicates an extended 16 mm maximum edge capability to execute deeper vertical step downs per pass. A thick 4.76 mm structural core profile ("04") provides the rigid body required to survive high processing torque. The "08" marking defines its $0.8\text{ mm}$ corner radius, strikes a reliable balance between tip strength and surface finish. The defining performance driver is ZCC-CT's proprietary YBG205 advanced nano-structured coating layout. This grade relies on a highly specialized physical vapor deposition (PVD) TiAlN matrix layered over a tough substrate. This dense PVD barrier creates extreme surface hardness while acting as a thermal shield against intense shearing heat. It actively suppresses built-up edge (BUE), a massive failure risk when cutting gummy, high-friction stainless steels. Machinists deploy this solution inside indexable end mills and face mills to replace expensive solid carbide tools. Its structural stability allows for faster chip removal cycles, substantially reducing total manufacturing runtime. It is standard tooling for machining complex pump housings, marine components, and heavy structural frames. Ultimately, this insert provides an exceptional ratio of component surface quality to total production cost savings.
