BT40-ER25-100L

BT40-ER25-100L

Brand: TOOLFARM

The BT40-ER25-100L is a high-precision industrial tool holder designed for CNC and Vertical Machining Centre (VMC) machines.The BT40-ER25-100L tool holder is engineered to balance high clamping force with minimal vibration. Here is everything you need to know about its engineering features, how it operates, and critical maintenance rules. .

₹2200.00

₹2200.00

Share on:
product details

Taper Standard: BT40 (MAS 403 taper standard)
Collet Series: ER25 (Clamping capacity from 1 mm to 16 mm)
Gauge Length (L): 100 mm (Projection distance from spindle face)
Retention Knob Thread: M16 x 2.0
Outer Diameter: 42 mm (ER25 Nut diameter).

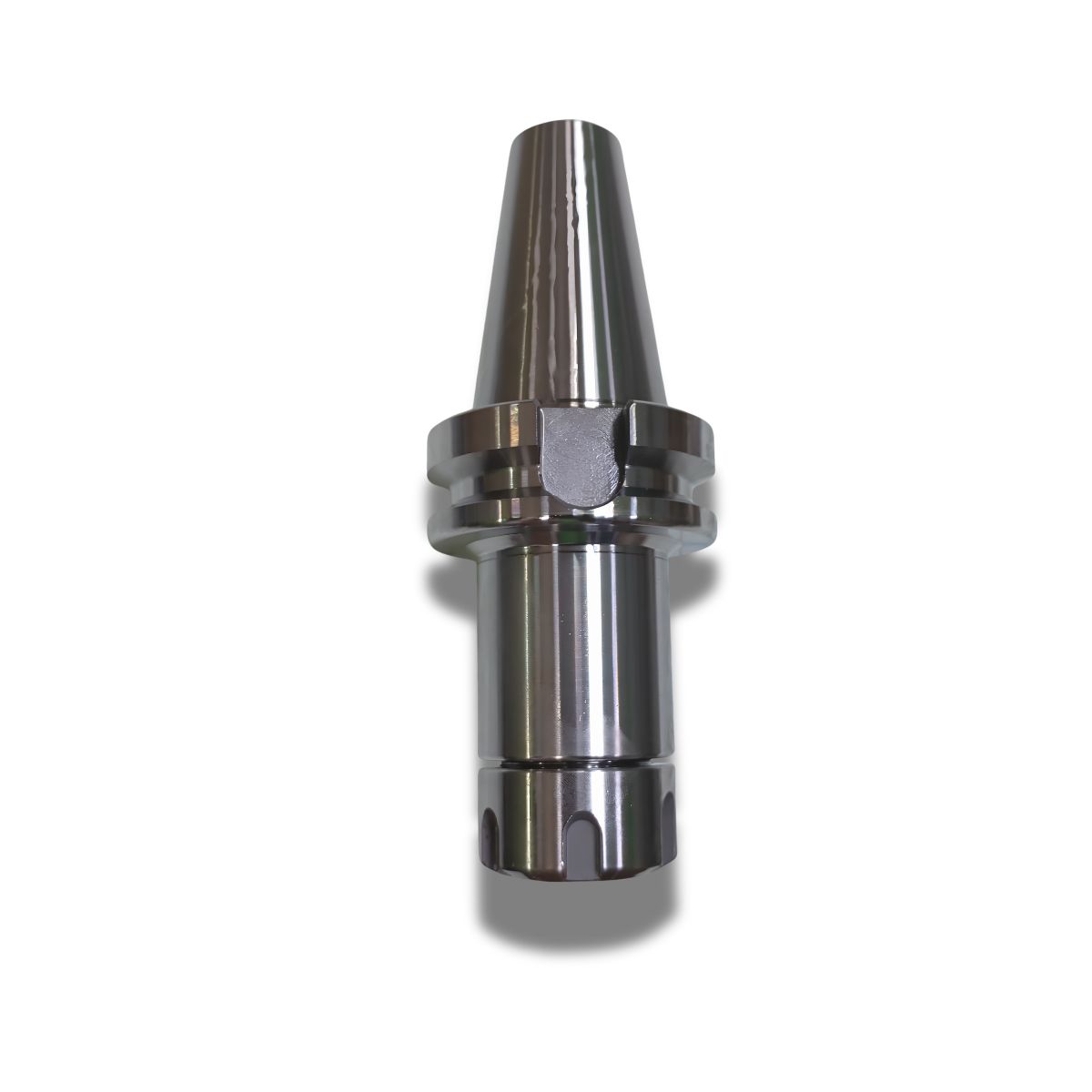

The Taper Body (BT40): The large conical upper half. It sits directly inside the machine spindle to provide rigid, concentric surface-to-surface contact.
The Collet Cavity (ER25): The hollow internal cone at the bottom. This is where the spring collet sits and collapses around the cutting tool.

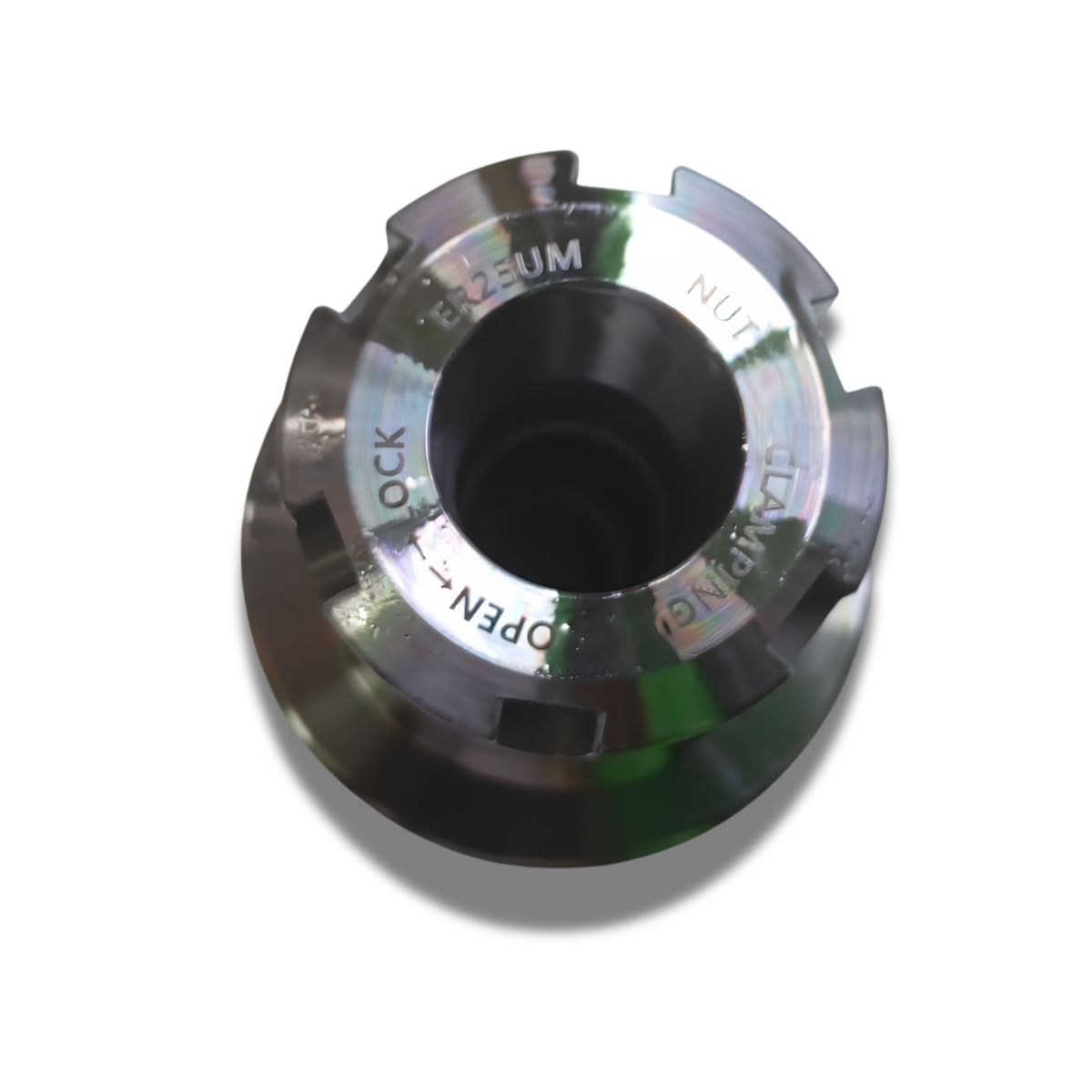

The Nut (ER25 UM): The outer threaded ring. When tightened with a spanner wrench, it forces the collet deep into the taper, gripping the drill or endmill tightly.
Key Technical Parameters
1. Runout Accuracy (T.I.R.)
Runout refers to how perfectly centered the tool rotates. If the tool wobbles even slightly, it ruins the finish and breaks the drill bit.
Standard Holders: Offer a runout accuracy under 0.005 mm (5 microns).
High-Precision Holders: Achieve under 0.003 mm (3 microns) for micro-machining.
2. Runout Length Impact
The 100L (100mm) length is a mid-range reach.
The Trade-off: Shorter holders (like 70L) are more rigid. Longer holders (100L) allow you to reach deep cavities or pockets inside a workpiece but are slightly more prone to deflection under heavy loads.
3. Coolant Delivery Type
Depending on the model variant you buy, it handles cooling in different ways:
Form A: Solid body (External coolant sprayed via external machine nozzles).
Form AD+B: Dual-way coolant. It allows coolant to flow through the ce
