  • BU810VCGT160408-LH
  • BU810VCGT160408-LH

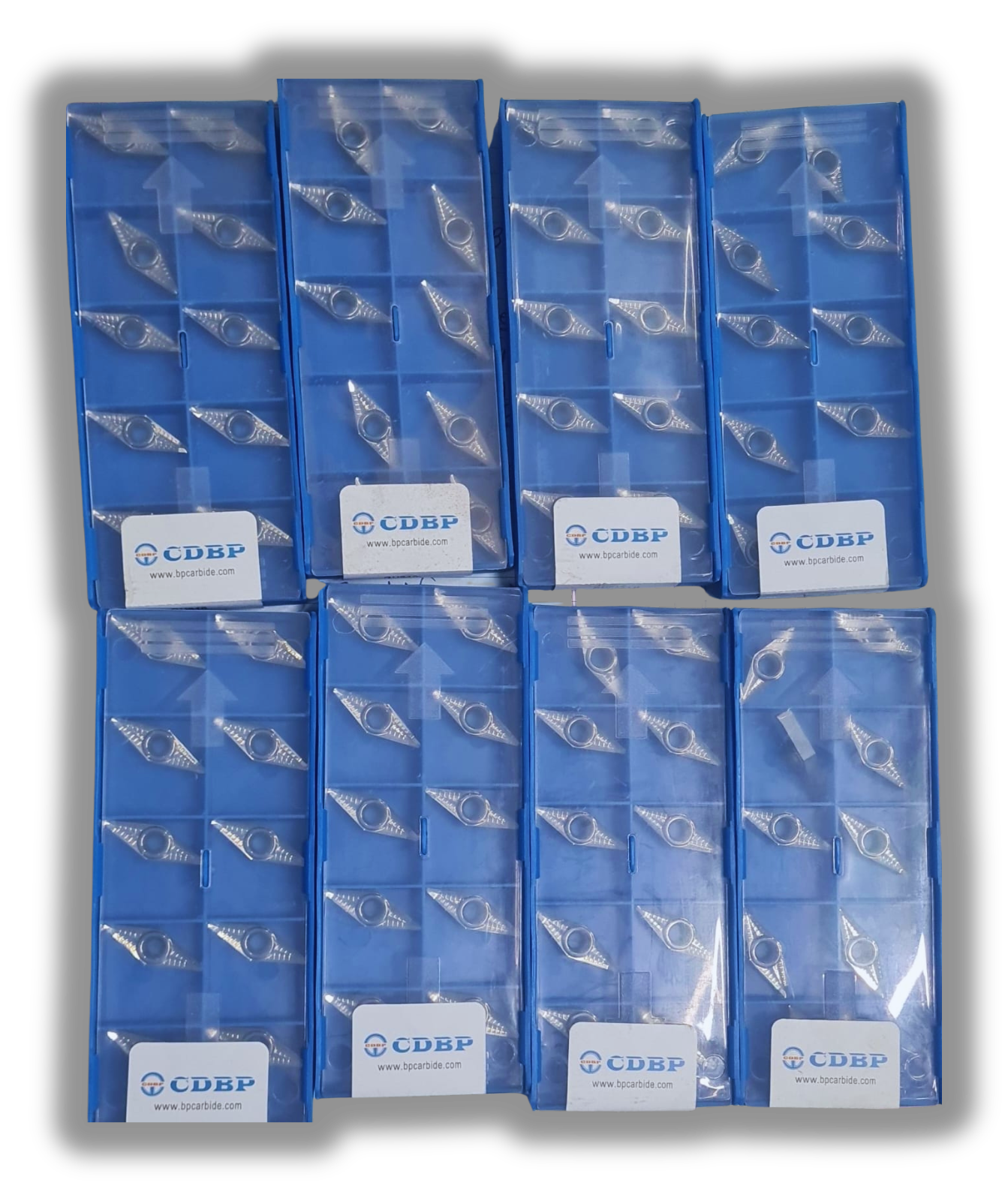

BU810VCGT160408-LH

BU810VCGT160408-LH

Brand: CDBP

The alphanumeric designation BU810 VCGT160408-LH describes a high-precision, indexable carbide turning insert designed for machining aluminum and non-ferrous metals.

₹470.00

₹470.00

Share on:
product details
  • V (Shape): A 35-degree rhombic (diamond-shaped) profile, ideal for intricate profiling, copy turning, and tight undercuts.
  • C (Clearance Angle): Features a 7-degree positive side clearance angle to reduce side-wall friction.
  • G (Tolerance Class): Ground tolerance class. This indicates high precision along the cutting edges and insert thickness, ensuring accurate repeatability during automated CNC runs.
  • T (Clamping/Chipbreaker): Implies a single-sided setup featuring a countersunk center clamping hole and a specialized chip control profile on one side.
  • 16 (Size): The length of the cutting edge is 16 mm (corresponds to an Inscribed Circle of 9.525 mm).
  • 04 (Thickness): The thickness of the insert body is 4.76 mm.
    • 08 (Corner Radius): A nose radius of 0.8 mm, striking a strong balance between edge strength and structural surface finish quality.
