  • TNGA 160408 PCD
  • TNGA 160408 PCD

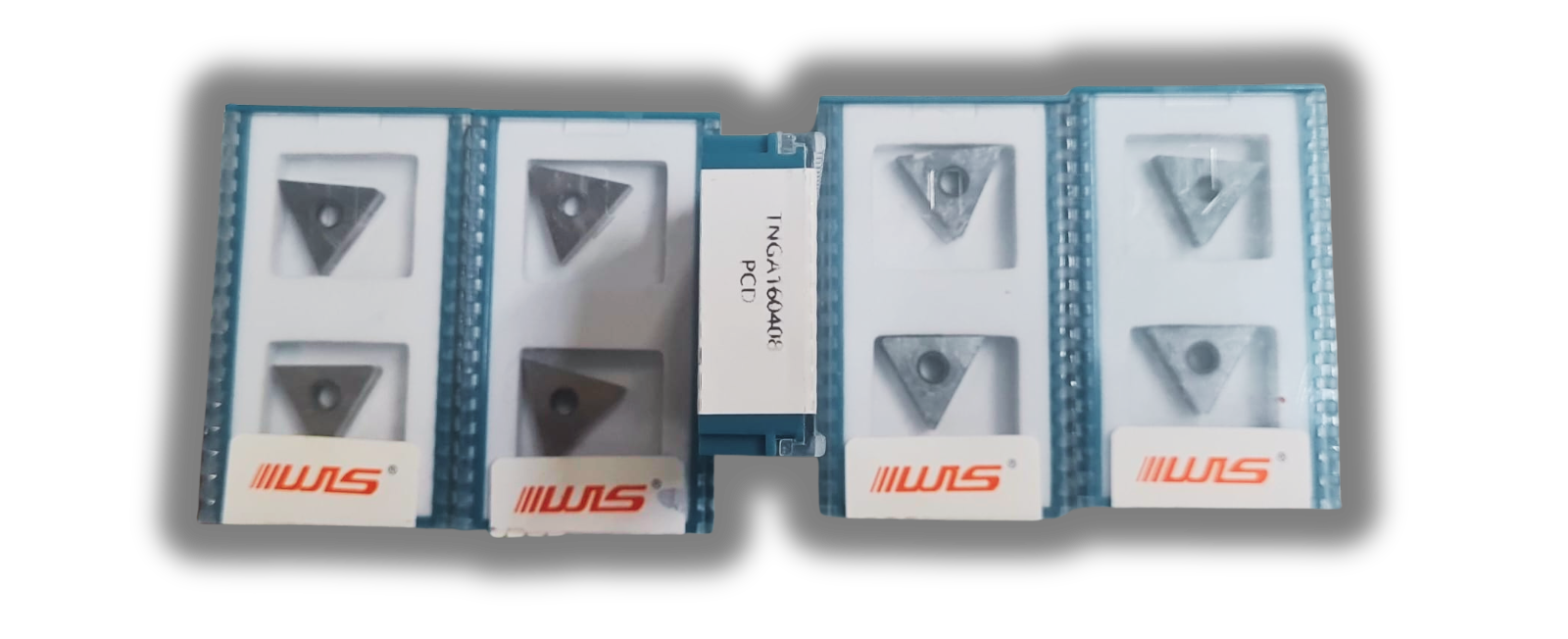

TNGA 160408 PCD

TNGA 160408 PCD

Brand: SUMII

TNGA 160408 PCDThe designation TNGA 160408 PCD refers to a high-performance, negative triangular turning insert tipped with Polycrystalline Diamond (PCD).

₹700.00

₹700.00

Share on:
product details
  • T: Triangular shape (60° included angle).
  • N: Negative rake angle (0° clearance), which provides maximum edge strength and allows multi-directional turning.
  • G: Precision ground tolerance class ensuring high repeatability in dimensional accuracy and corner height.
  • A: Features a smooth flat top plane with a countersunk fixing hole, omitting a molded-in chipbreaker profile. Instead, it relies on a brazed PCD tip on the corner.
  • 16: 16.5 mm cutting edge length.
  • 04: 4.76 mm thickness.
  • 08: 0.8 mm corner radius, offering an ideal balance between edge strength and superior surface finish.
SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
