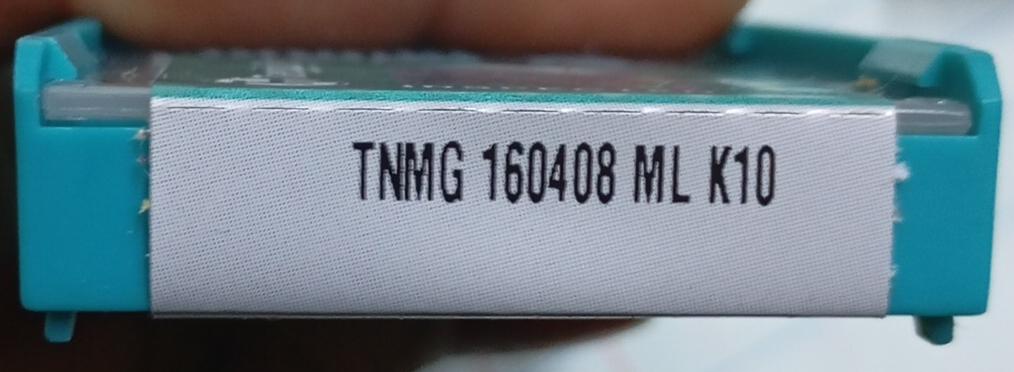

TNMG 160408 ML K10

TNMG 160408 ML K10

Brand: TAEGUTEC

The TNMG 160408 ML K10 is an industry-standard, double-sided triangular turning insert engineered for medium-to-light precision machining. It features a sharp cutting action and a specialized grade for non-ferrous and cast materials, widely produced by leading manufacturers like TaeguTec.

₹700.00

₹700.00

Share on:
product details

T: Triangular geometry with a 60° corner angle for excellent profiling clearance.
N: Negative clearance angle (0°), providing double-sided usability with 6 total cutting edges.
M: Medium manufacturing tolerance class across the insert dimensions.
G: Design featuring a central hole and chipbreaker geometries on both faces.
16: Nominal cutting edge length measuring 16.5 mm.
04: Total insert thickness measuring 4.76 mm.
08: A 0.8 mm corner radius providing a robust edge balance between wear resistance and surface finish.
ML: The Medium-Light chipbreaker design, optimized for sharp cutting, reduced vibration, and low cutting forces.
K10: A hard, highly wear-resistant K-class carbide grade optimized specifically for cast iron, aluminium alloys, and non-ferrous metals.
