  • SFAN 1203
SFAN 1203

SFAN 1203

Brand: TOOLFARM

The alphanumeric identifier SFAN 1203 is an ISO-standardized part number for an indexable, square carbide milling insert engineered for precision face milling and finishing operations.

₹450.00

₹450.00

Share on:
product details

S: Identifies the fundamental shape of the insert as Square (90° included angles). A square layout provides four linear cutting edges that ensure great cross-sectional stability against heavy axial pressure.
F: Specifies the Normal Clearance Angle, designating a 25° high-positive clearance profile. This steep relief angle creates an incredibly sharp cutting edge that cleanly slices through gummy materials rather than rubbing against them.
A: Dictates the universal Tolerance Class (Class A). This is the highest standard indexable precision class, guaranteeing extreme repeatability on the inscribed circle (±0.025 mm) and thickness (±0.025 mm) to ensure consistent depths of cut when changing inserts.
N: Confirms the insert clamping structural style. It features a solid top and bottom face without a central fixing hole, meaning it relies on a secure top-clamp toolholder or wedge-lock mechanism inside the cutter body pocket.
12: Details the nominal Inscribed Circle (IC) size, measuring exactly 12.7 mm (or 1/2 inch).
03: Defines the physical Insert Thickness, which is exactly 3.18 mm (1/8 inch)

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.

You May Also Like

SPKN1203EDR CTICK215
SPKN1203EDR CTICK215
300.00
420.00
GBA GROOVING M22 SIZE 2MM RIGHT HAND
GBA GROOVING M22 SIZE 2MM RIGHT HAND
1200.00
1440.00
DNMG 150612 RH DNMG 443 RH
DNMG 150612 RH DNMG 443 RH
600.00
720.00
CCMT09T 304-F1,TP1500
CCMT09T 304-F1,TP1500
480.00
576.00
FX4.1-E410N0115-CK8 (GROOVING INSERT)
FX4.1-E410N0115-CK8 (GROOVING INSERT)
1100.00
1320.00
CNMG120408-SMWCT215M
CNMG120408-SMWCT215M
400.00
480.00
RCMT 1606 M0RP
RCMT 1606 M0RP
700.00
840.00
150.23 0635 08T020 CERAMIC GROOVING INSERT
150.23 0635 08T020 CERAMIC GROOVING INSERT
1800.00
2160.00
PENTA 24N 1.50-TT9080
PENTA 24N 1.50-TT9080
2400.00
2880.00

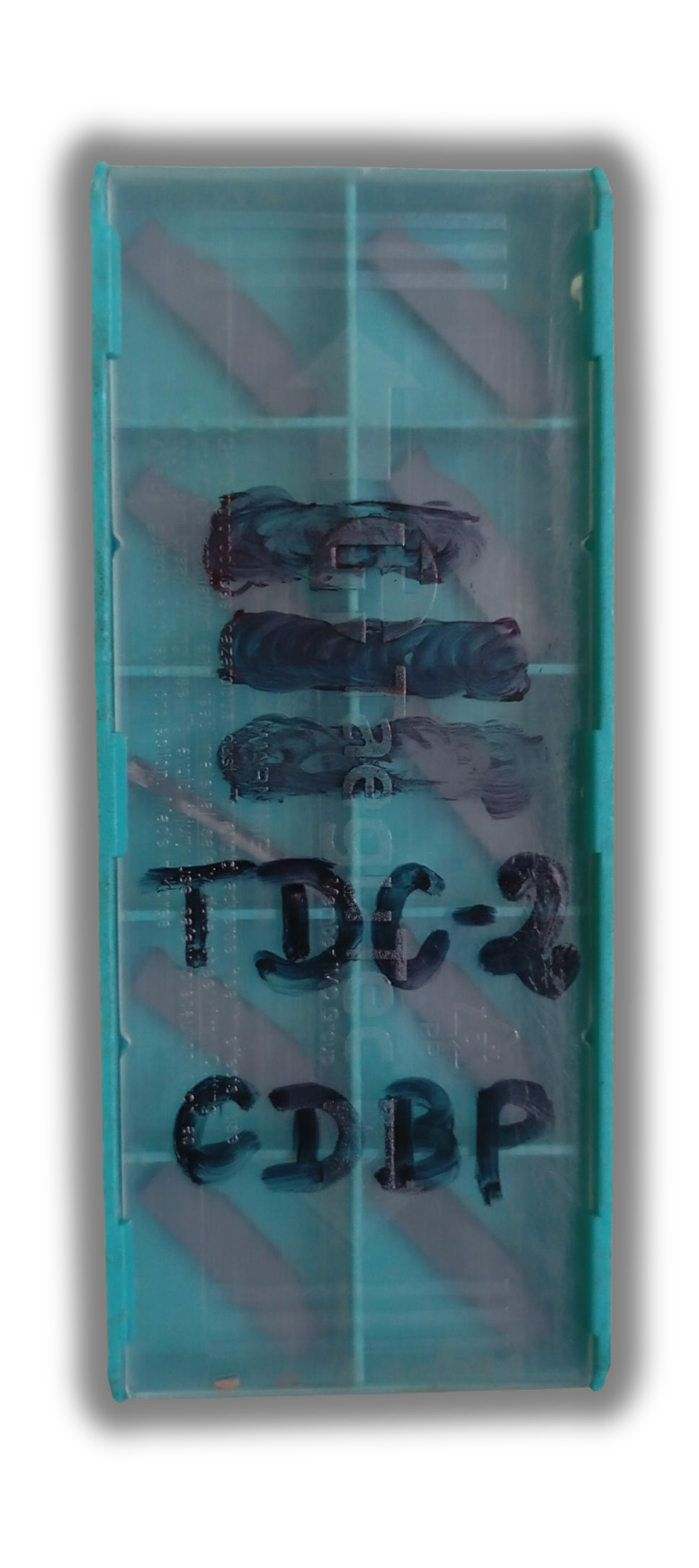

TDC-2 CDBP
