  • CCMT09T 304-F1,TP1500
  • CCMT09T 304-F1,TP1500

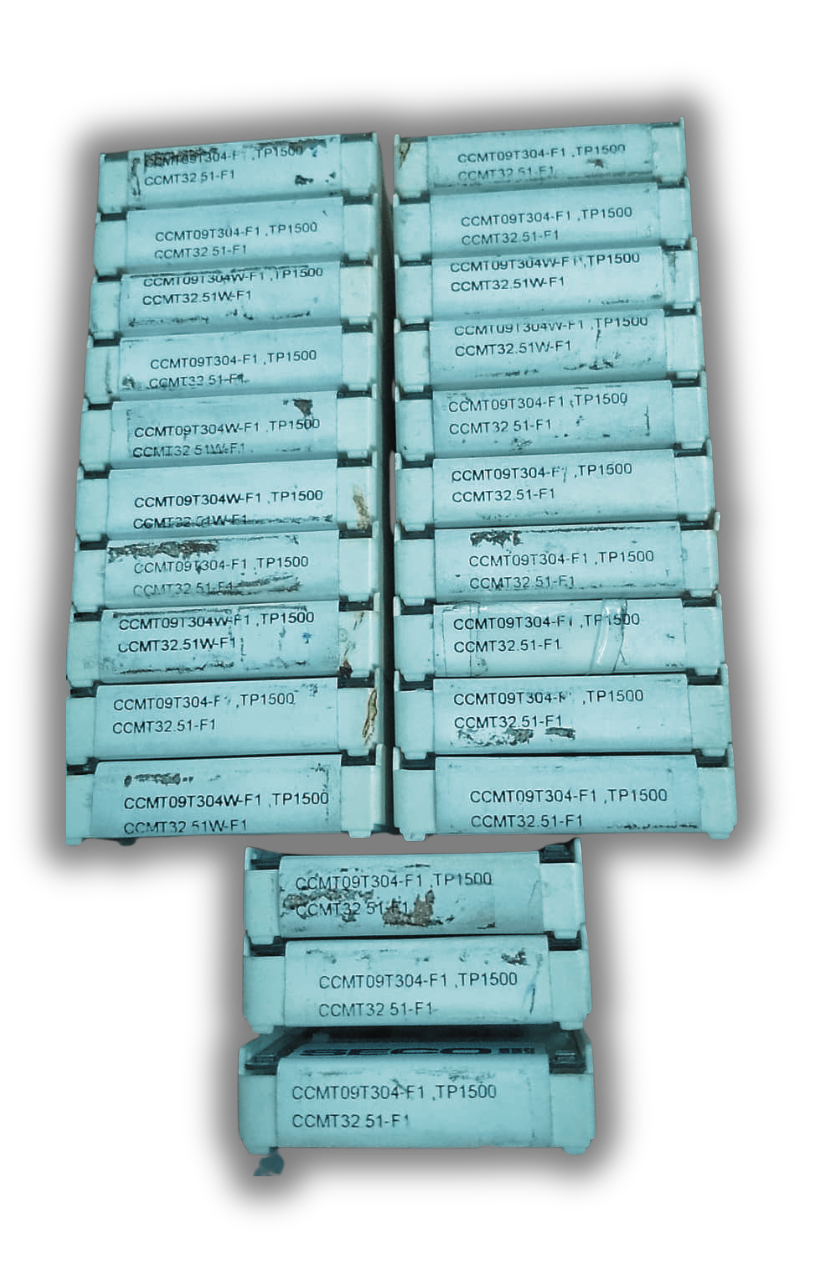

CCMT09T 304-F1,TP1500

CCMT09T 304-F1,TP1500

Brand: SECO

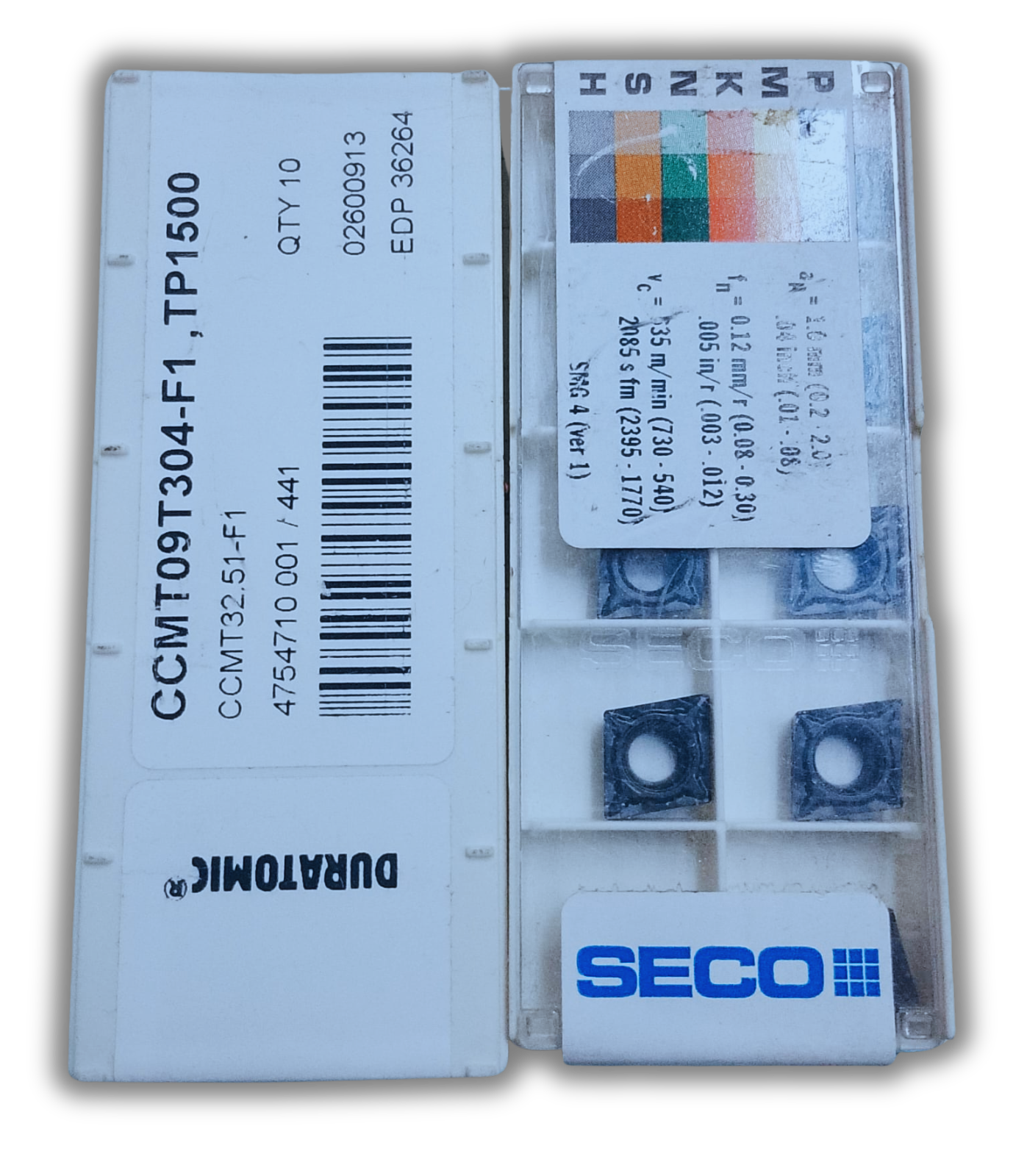

The alphanumeric specification CCMT09T304-F1, TP1500 refers to a high-precision, indexable carbide turning insert manufactured by Seco Tools.

₹480.00

₹480.00

Share on:
product details
Technical Breakdown of the Part Number

1. Insert Geometry & Dimensions (ISO Standard)

  • C (Shape): An 80-degree rhombic (diamond-shaped) profile that balances edge strength with versatile clearance across longitudinal turning and facing operations.

  • C (Clearance Angle): A 7-degree positive side clearance angle designed to eliminate drag and rubbing against the workpiece wall.

  • M (Tolerance Class): Dictates standard precision tolerances on the insert’s thickness, nose height, and inscribed circle sizing.

  • T (Clamping & Chipbreaker): Indicates a single-sided insert featuring a 40 to 60-degree cylindrical countersunk center hole for screw-lock tool holders.

  • 09 (Size): Represents a cutting edge length of 9.5 mm (or an Inscribed Circle of 9.525 mm).

  • T3 (Thickness): Specifies an insert body thickness of 3.97 mm.

    • 04 (Corner Radius): A precise nose radius of 0.4 mm, engineered to provide an extremely smooth surface finish while minimizing vibration.
