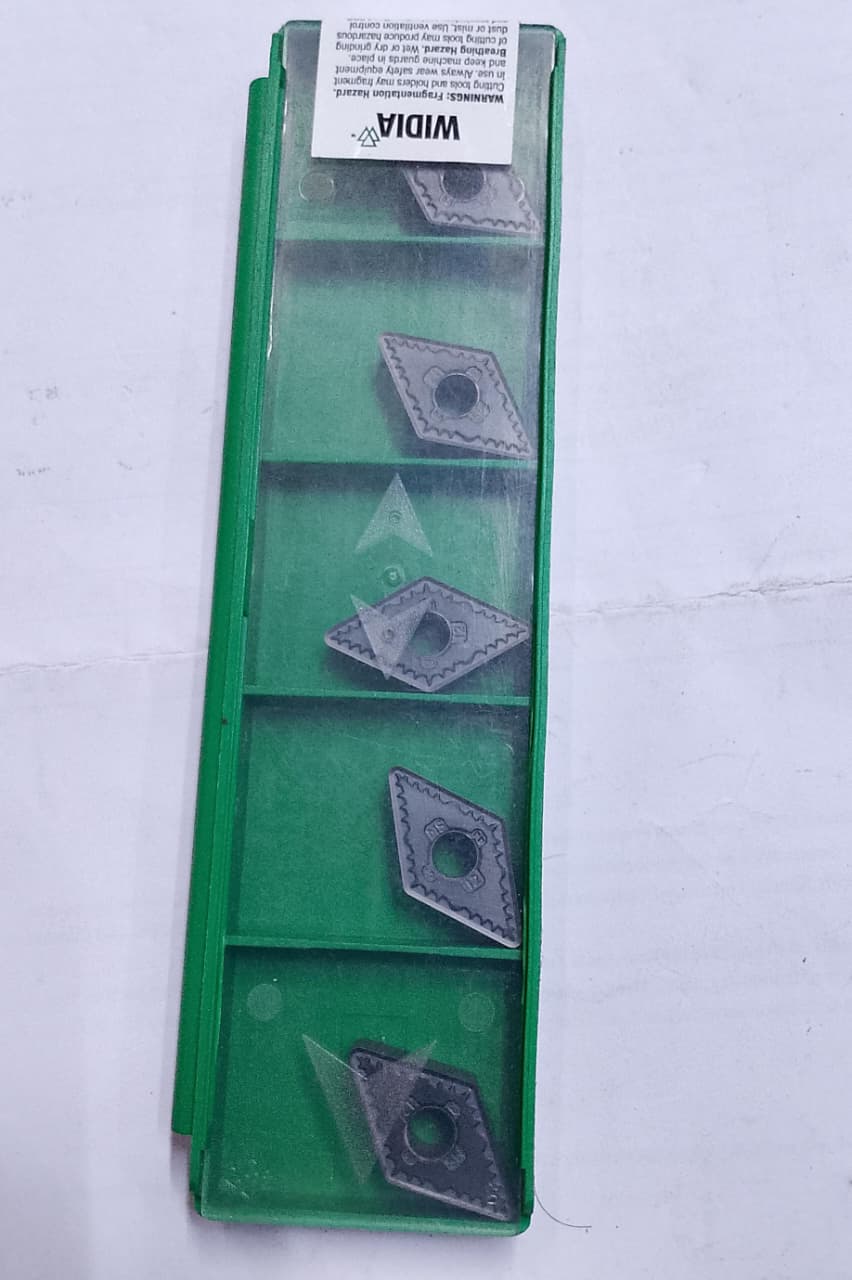

DNMG 150612MS DNMG443MS

DNMG 150612MS DNMG443MS

Brand: WIDIA

The alphanumeric sequences DNMG 150612-MS and DNMG 443-MS refer to the exact same indexable carbide turning insert. The first code uses the metric ISO standard, while the second uses the imperial ANSI standard.

₹600.00

₹600.00

Share on:
product details
Feature [1, 2, 3, 4, 5]ISO Designation: DNMG 150612ANSI Designation: DNMG 443Structural Engineering Definition

D

DD

55° Rhombic (Diamond) shape, providing high clearance for intricate profiling and shoulders.

N

NN

0° Negative clearance angle to enable double-sided use (4 effective cutting corners).

M

MMMid-range precision tolerance class regulating thickness and inner profile limits.

G

GGDouble-sided configuration featuring a cylindrical center pinning hole and built-in chip breakers.

Size / IC

15 (\(15.5\text{ mm}\) cutting edge length)

4 (\(1/2\text{ inch}\) Inscribed Circle)

The overall size classification of the internal profile pocket.

Thickness

06 (\(6.35\text{ mm}\) thickness)

4 (\(4/16\text{ or }1/4\text{ inch}\) thick)

Vertical cross-section thickness built to resist high deflection forces.

Corner Radius

12 (\(1.2\text{ mm}\) radius)

3 (\(3/64\text{ inch}\) radius)

A robust 1.2 mm nose radius that balances edge strength with high-feed surface finishes.
SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.

You May Also Like

SDPT 1204PDERGB2 SDPT 43PDER8GB2 KCPK30
SDPT 1204PDERGB2 SDPT 43PDER8GB2 KCPK30
600.00
720.00
TCMT 16T3 08-KRH13A TCMT 3(2.5)2-KR H13A
TCMT 16T3 08-KRH13A TCMT 3(2.5)2-KR H13A
600.00
720.00

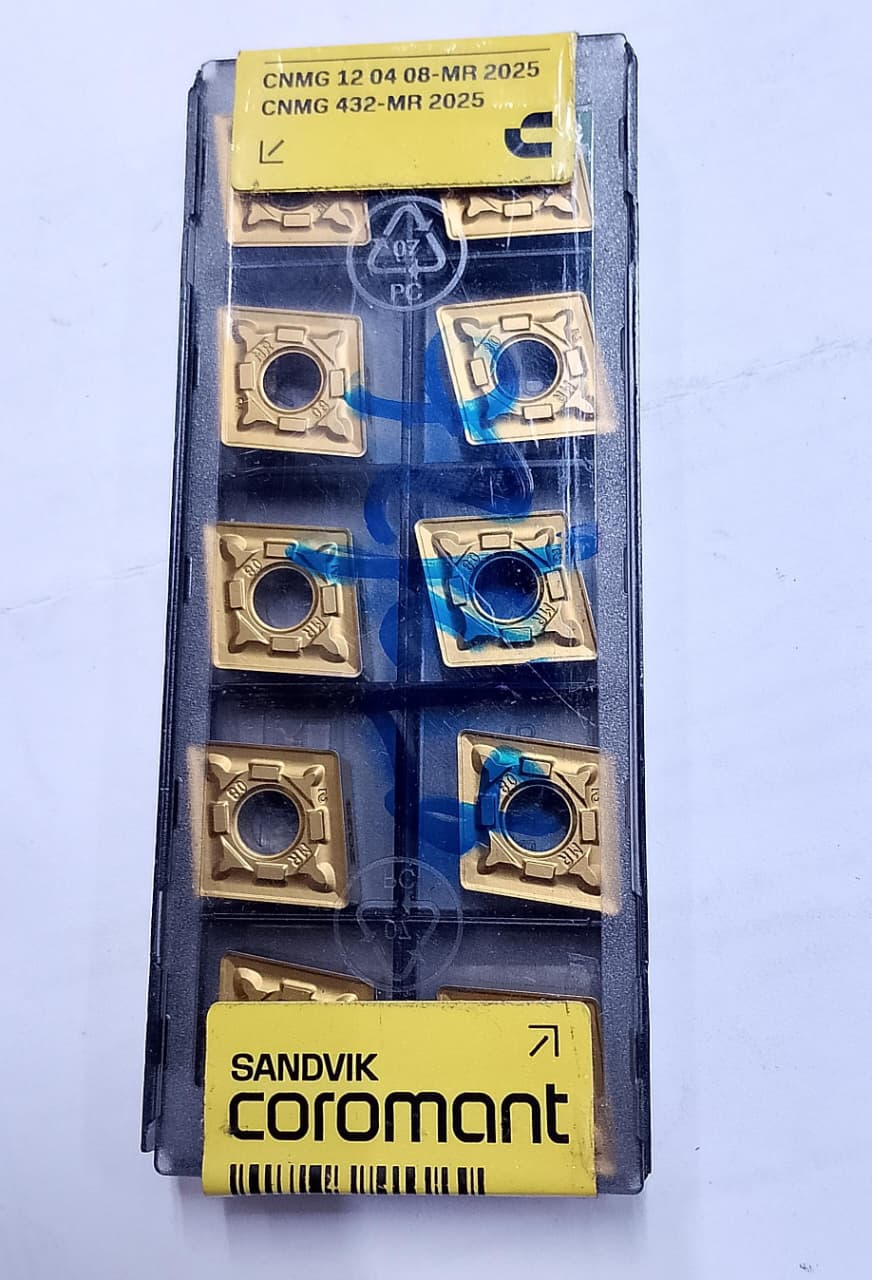

CNMG 12 04 08-MR 2025 CNMG 432-MR 2025
