  • RCMT 1606 M0RP

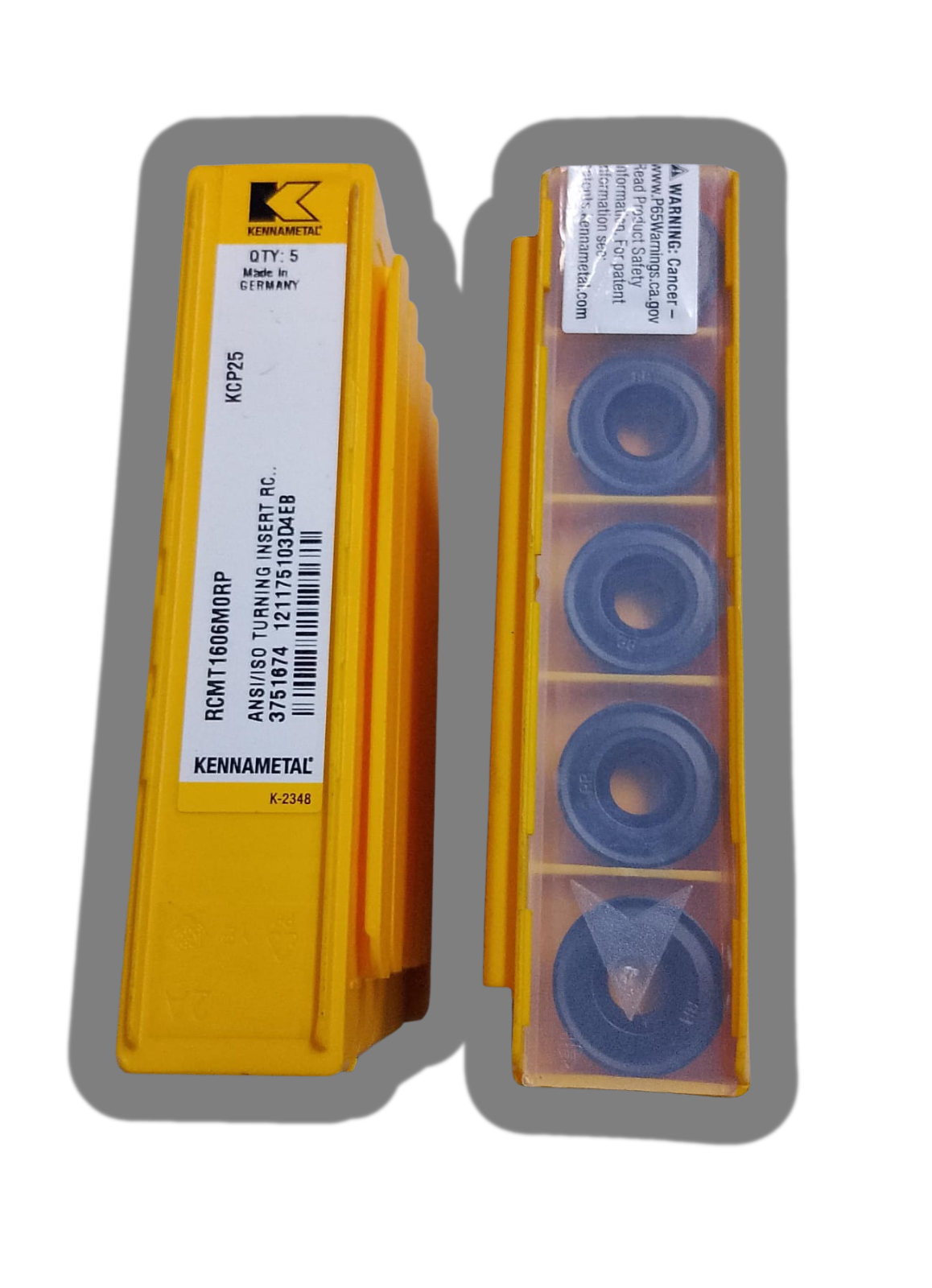

RCMT 1606 M0RP

RCMT 1606 M0RP

Brand: KENNAMETAL

The RCMT 1606 M0RP is an indexable carbide turning insert designed for heavy-duty profiling, roughing, and medium-machining applications on CNC lathes.

₹700.00

₹700.00

Share on:
product details
  • R (Insert Shape): Round (circular) geometry, which provides maximum cutting edge strength and allows for smooth profiling in multiple directions.
  • C (Clearance Angle): 7° positive clearance angle beneath the cutting edge, reducing friction and lowering cutting forces during operation.
  • M (Tolerances): Specifies standard industrial manufacturing tolerances for the insert's thickness, shape, and inscribed circle.
  • T (Fixing/Features): Countersunk hole design with a single-sided chipbreaker, designed to be securely fastened to a tool holder with a center screw.
  • 16 (Insert Size): Indicates a 16.0 mm nominal cutting diameter (Inscribed Circle).
  • 06 (Insert Thickness): Specifies a thickness of 6.35 mm.
  • M0 (Corner Radius): Metric code for round inserts indicating a standard round profile without specific flat facets, yielding an effective cutting radius of 8.0 mm (half of the diameter).
    • RP (Chipbreaker Geometry): A heavy-duty geometry (commonly used by brands like Kennametal) engineered for Roughing and Medium Profiling (RP). It features a robust land width to prevent edge chipping under heavy depths of cut or interrupted cuts
SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
