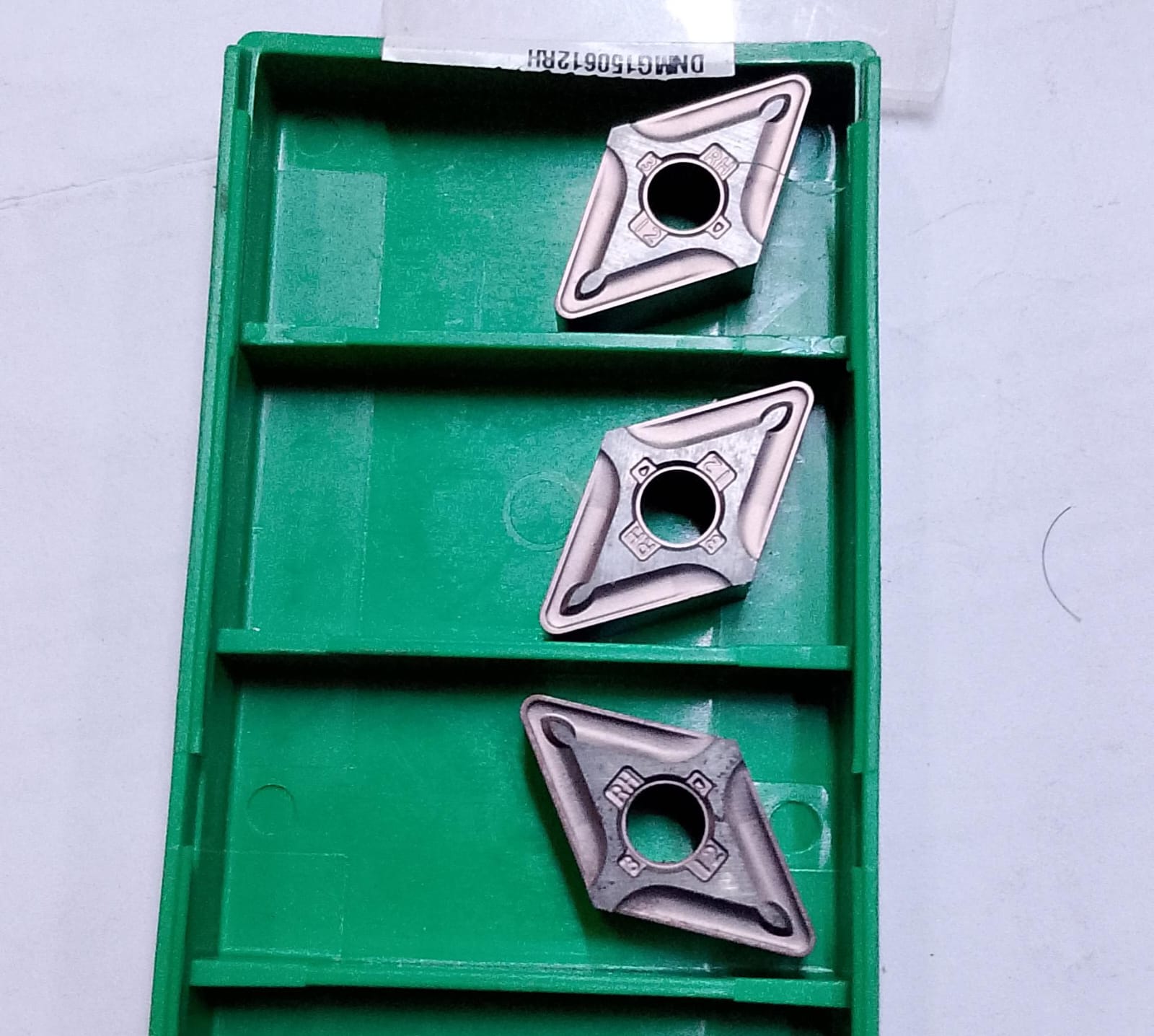

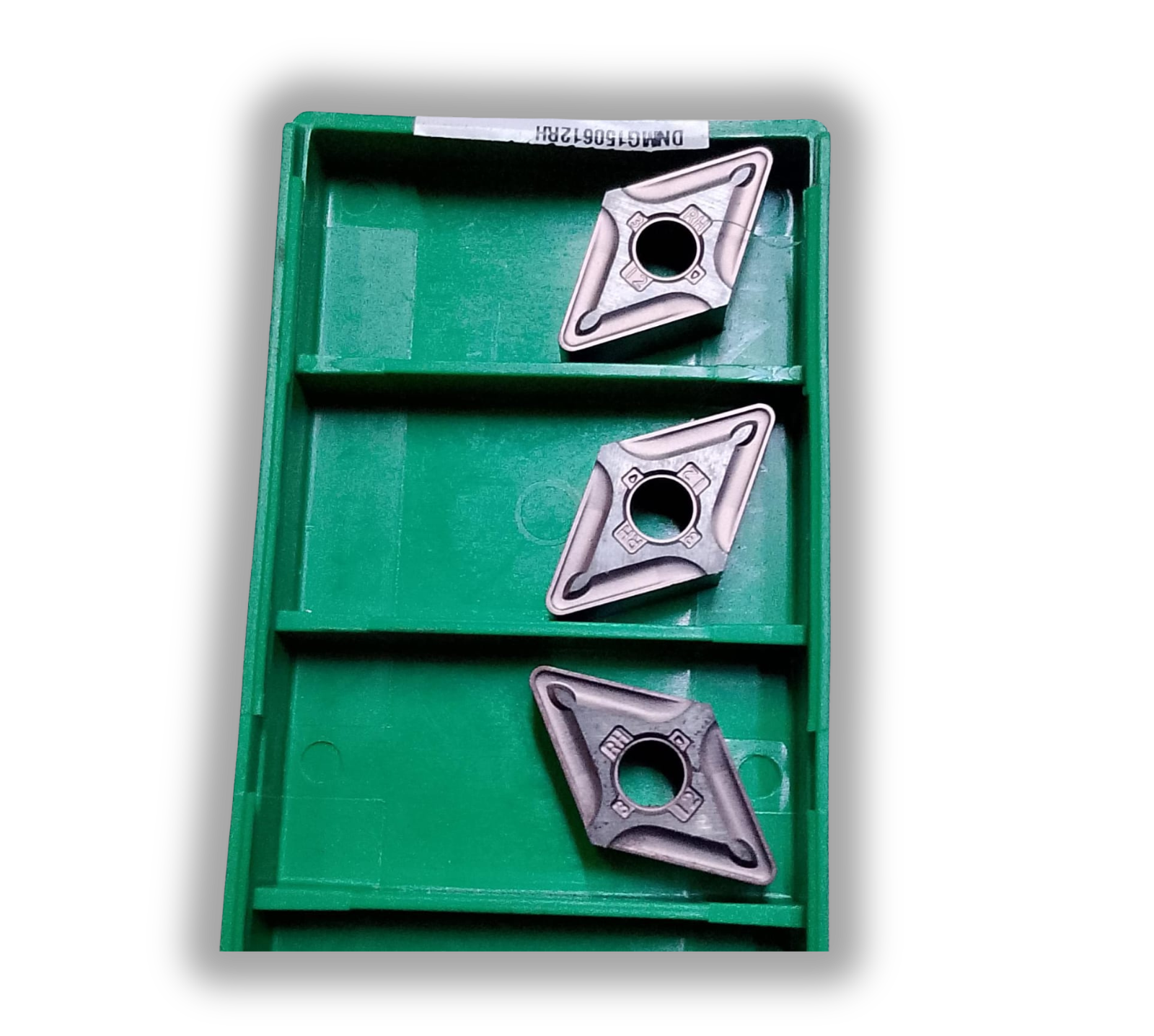

  • DNMG 150612 RH DNMG 443 RH
  • DNMG 150612 RH DNMG 443 RH
DNMG 150612 RH DNMG 443 RH

DNMG 150612 RH DNMG 443 RH

Brand: WIDIA

The alphanumeric codes DNMG 150612-RH and DNMG 443-RH identify the exact same double-sided indexable carbide turning insert. The first code uses the metric ISO standard, while the second uses the imperial ANSI standard

₹600.00

₹600.00

Share on:
product details
Feature ISO Designation: DNMG 150612ANSI Designation: DNMG 443Structural Engineering Definition

D

DD

55° Rhombic (Diamond) shape, offering a balance of profiling flexibility and back-edge clearance.

N

NN

0° Negative clearance angle for a rigid double-sided profile (yielding 4 effective cutting edges).

M

MMStandard mid-range precision tolerance regulating thickness and inner profile index limits.

G

GGDouble-sided configuration featuring a cylindrical center pin hole and molded chip breakers.

Size / IC

15 (\(15.5\text{ mm}\) cutting edge length)

4 (\(1/2\text{ inch}\) Inscribed Circle)

The overall size classification of the internal profile tool pocket.

Thickness

06 (\(6.35\text{ mm}\) thickness)

4 (\(4/16\text{ or }1/4\text{ inch}\) thick)

Vertical tool core height built to absorb deep radial deflection.

Corner Radius

12 (\(1.2\text{ mm}\) radius)

3 (\(3/64\text{ or }1/32\text{ inch}\) per unit)

A thick 1.2 mm nose radius engineered to survive heavy scaling and high-feed cutting.
