  • 6NMU1409080PNER-M VP15TF
6NMU1409080PNER-M VP15TF

6NMU1409080PNER-M VP15TF

Brand: DIA EDGE

The designation 6NMU1409080PNER-M VP15TF is a precise manufacturer part number for a double-sided, 6-corner indexable carbide milling insert produced by Mitsubishi Materials (DIAEDGE). It is engineered primarily for high-performance 90-degree shoulder milling and face milling applications utilizing their popular WWX400 cutter series.

₹550.00

₹550.00

Share on:
product details

6NMU: Defines the fundamental structural shape.
6: Represents its unique, double-sided "X-shape" configuration providing 6 usable cutting edges to reduce tool costs.
N: Indicates a negative insert format with a 0° clearance angle for maximum edge strength.
M: Dictates a standard manufacturing tolerance class (Class M).
U: Features specialized top and bottom face geometries with central clamping holes.

Mars Supply
 +2
14: Specifies the Inscribed Circle (IC) size, measuring 14.0 mm (nominal size code).

shop.hegen.ru
 +1
09: Denotes the Insert Thickness, providing a heavy-duty 9.0 mm cross-section that provides extreme structural rigidity and eliminates the need for toolholder seats.

モノタロウ
08: Designates a 0.8 mm Corner Radius (
) for balanced corner toughness and wall surface finish.

shop.hegen.ru
 +2
0PNER: Details the cutting edge orientation, precision style, and lead angles suited for right-hand milling body mounting. It incorporates a large Wiper Edge (1.3 mm width) to deliver an exceptional floor surface finish.

shop.hegen.ru
 +2
-M: Identifies the Medium-duty chipbreaker profile, which balances low cutting forces with edge sharpness across general milling depths.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.

You May Also Like

TNGA 160408 PCD
TNGA 160408 PCD
700.00
840.00

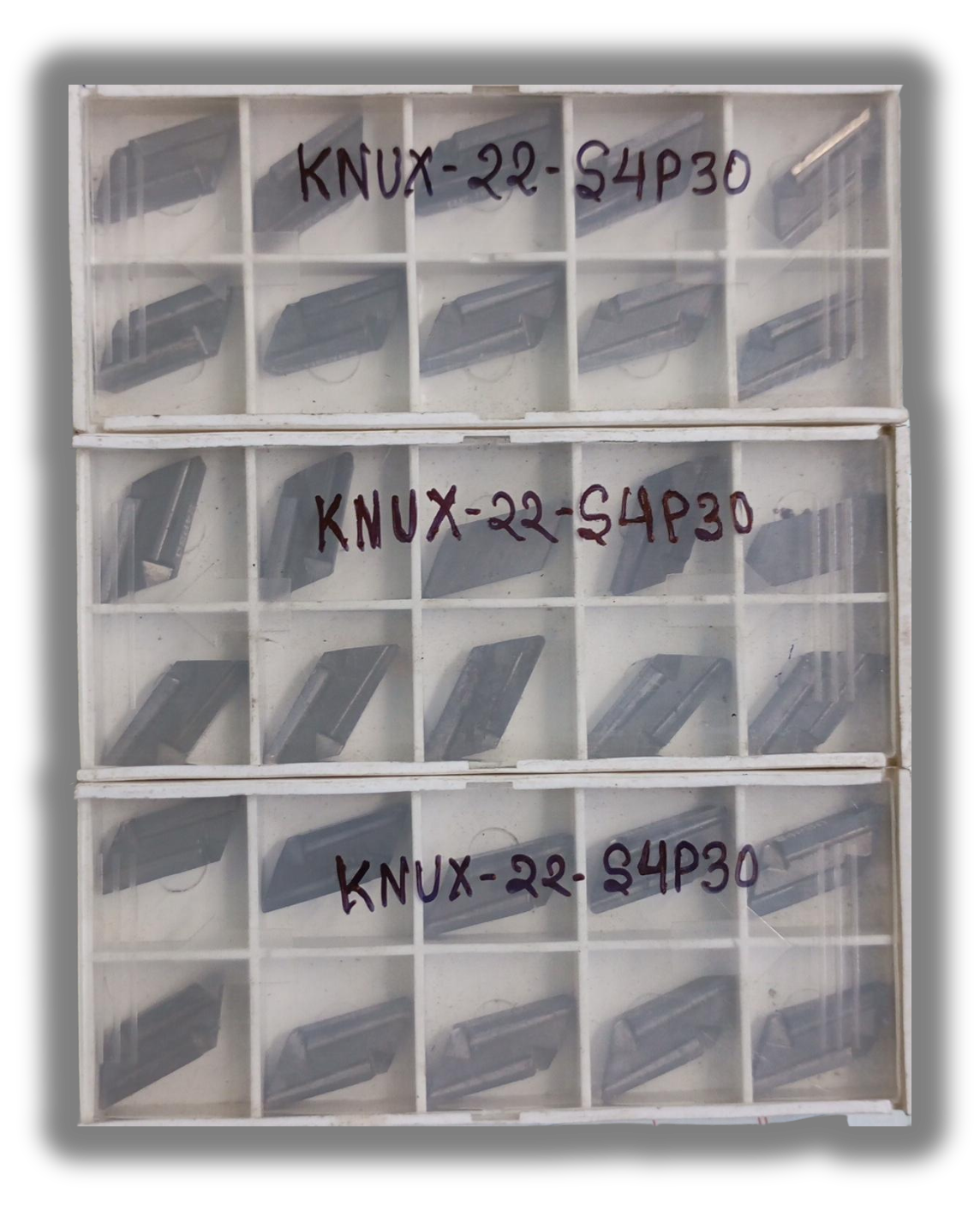

KNUX-22-S4P30
KNUX-22-S4P30
490.00
588.00
LNMX0607ZER-HJH3135
LNMX0607ZER-HJH3135
750.00
900.00
DNMG 150612 RH DNMG 443 RH
DNMG 150612 RH DNMG 443 RH
600.00
720.00

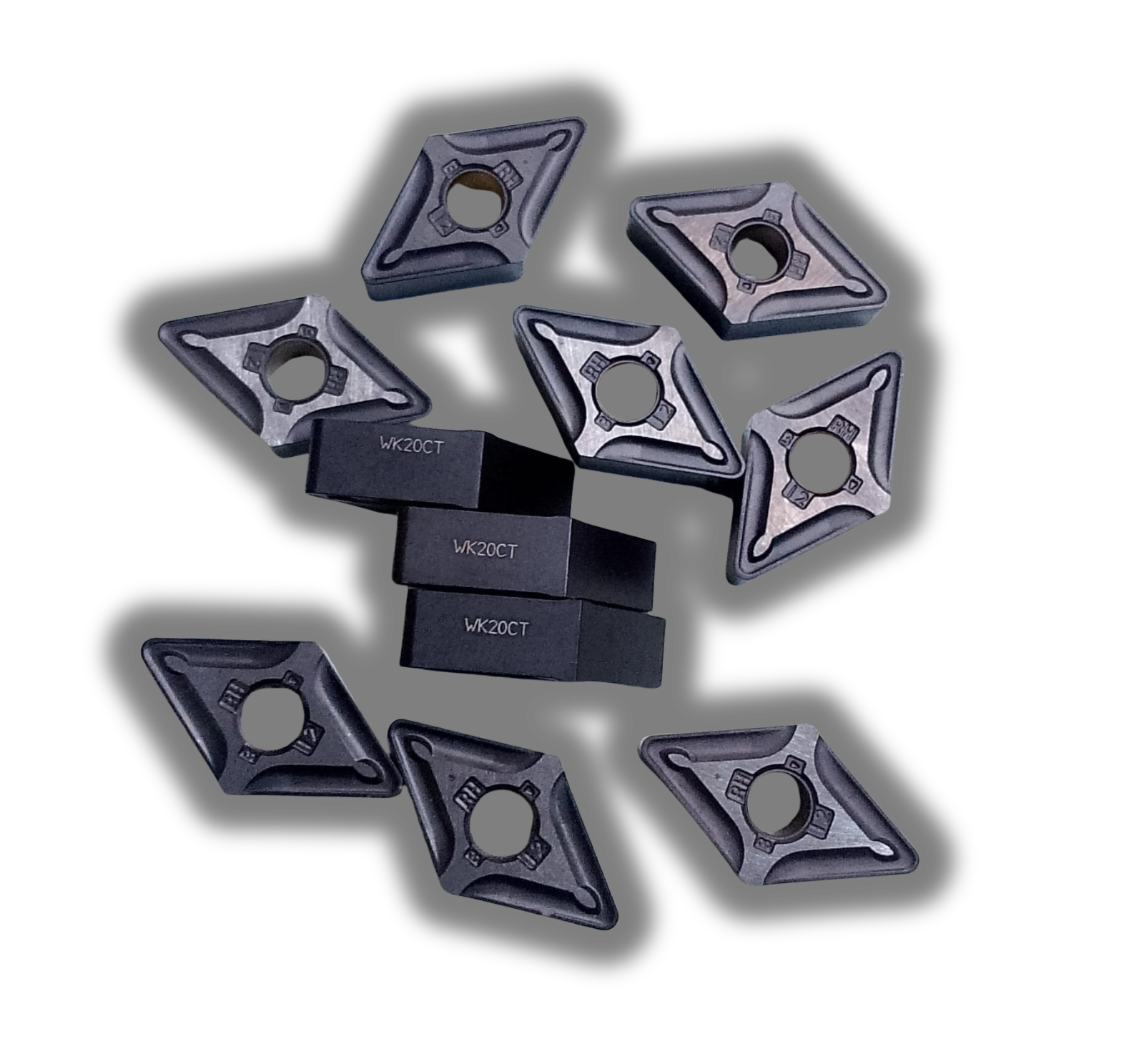

DNMG 150612 GRADE WK20CT
