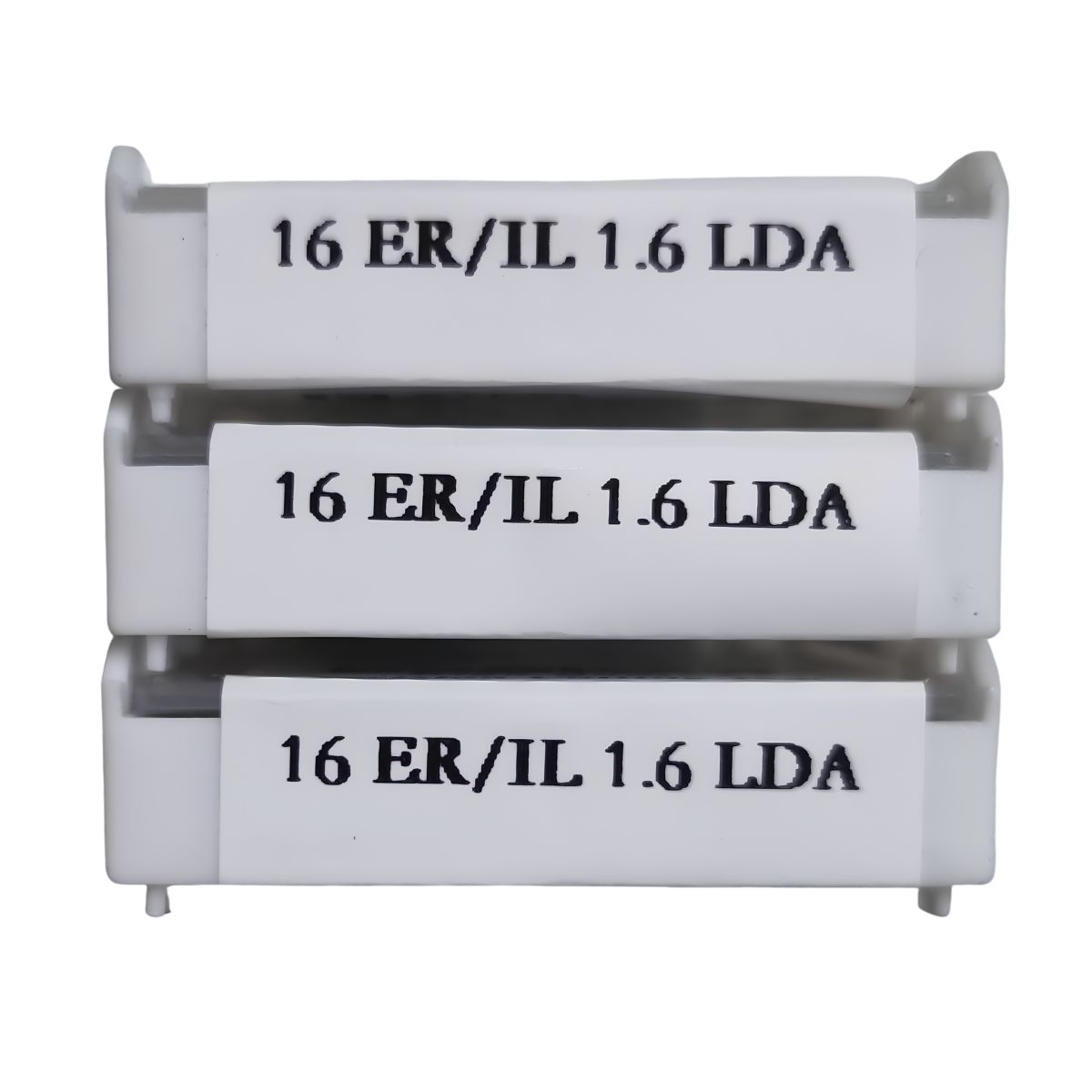

  • 16 ER/IL 1.6 LDA
  • 16 ER/IL 1.6 LDA
16 ER/IL 1.6 LDA

16 ER/IL 1.6 LDA

Brand: DESKAR

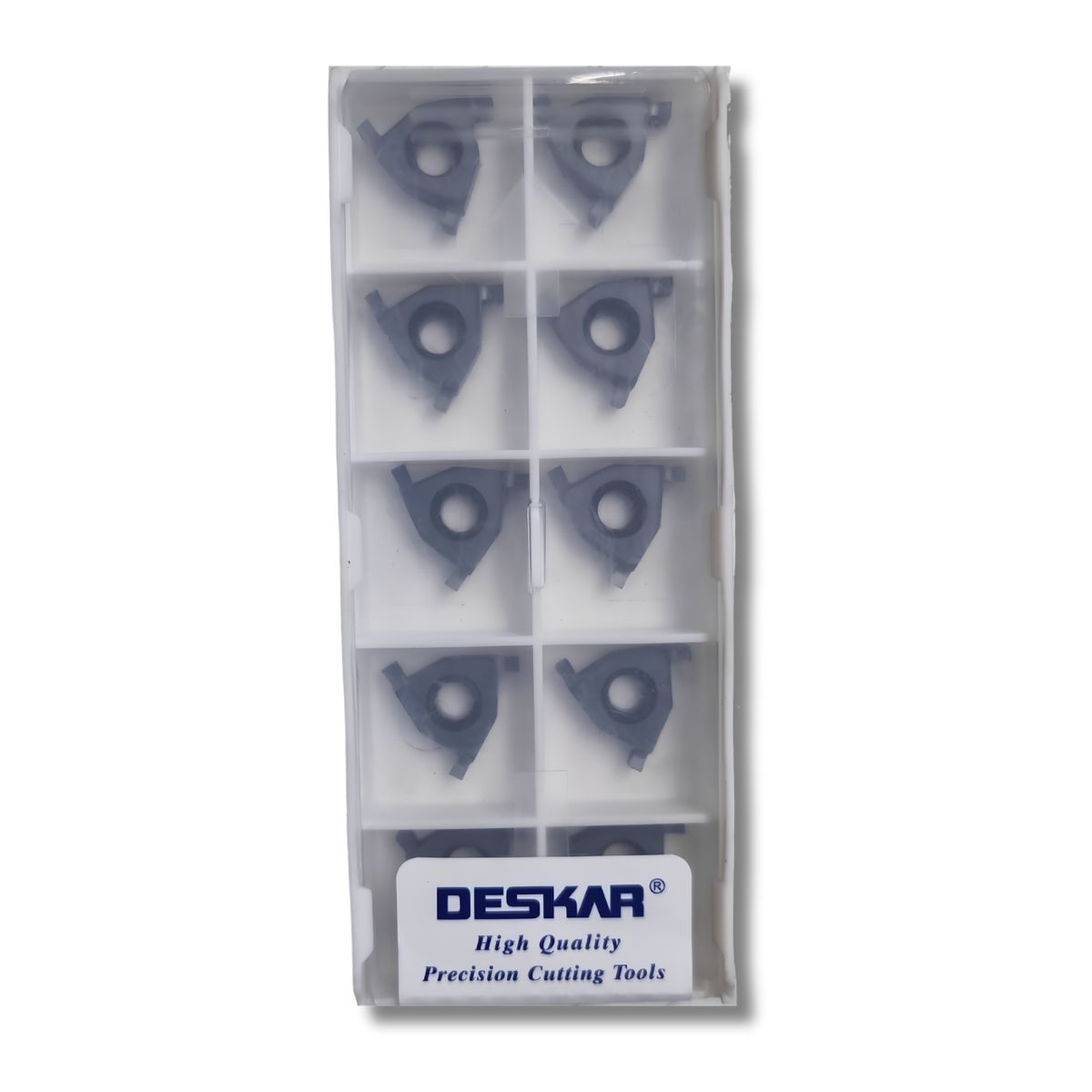

The 16 ER/IL 1.6 LDA is a high-precision, indexable carbide lathe insert engineered primarily for external right-hand circlip grooving and shallow groove turning operations on CNC machines. It is manufactured by tooling brands such as DESKAR and is used broadly across automotive and industrial manufacturing sectors.

₹560.00

₹560.00

Share on:
product details

16: Represents the size of the insert, corresponding to an IC (Inscribed Circle) of 3/8 inch (9.525 mm).
ER / IL: Refers to the physical hand and mounting compatibility. It fits External Right-hand (ER) or Internal Left-hand (IL) tool holders
1.6: Denotes the precise cutting width of the groove, which is 1.6 mm. This is typically used for machining specific standard retention rings or circlip slots.
LDA: Specifies the specialized PVD/CVD hard alloy coating. This grade offers exceptional adhesion resistance, thermal shielding, and chip control.
Performance Characteristics
Material Versatility: Highly optimized for ISO material groups P (Steel), M (Stainless Steel), and K (Cast Iron).
Tungsten Carbide Core: Features a high-hardness core (typically around 92 HRA) to withstand heavy structural stress and minimize edge wear.
Tooling Compatibility: Seamlessly integrates into standard laydown threading and grooving shank systems using standard 16ER or 16IL pockets .
