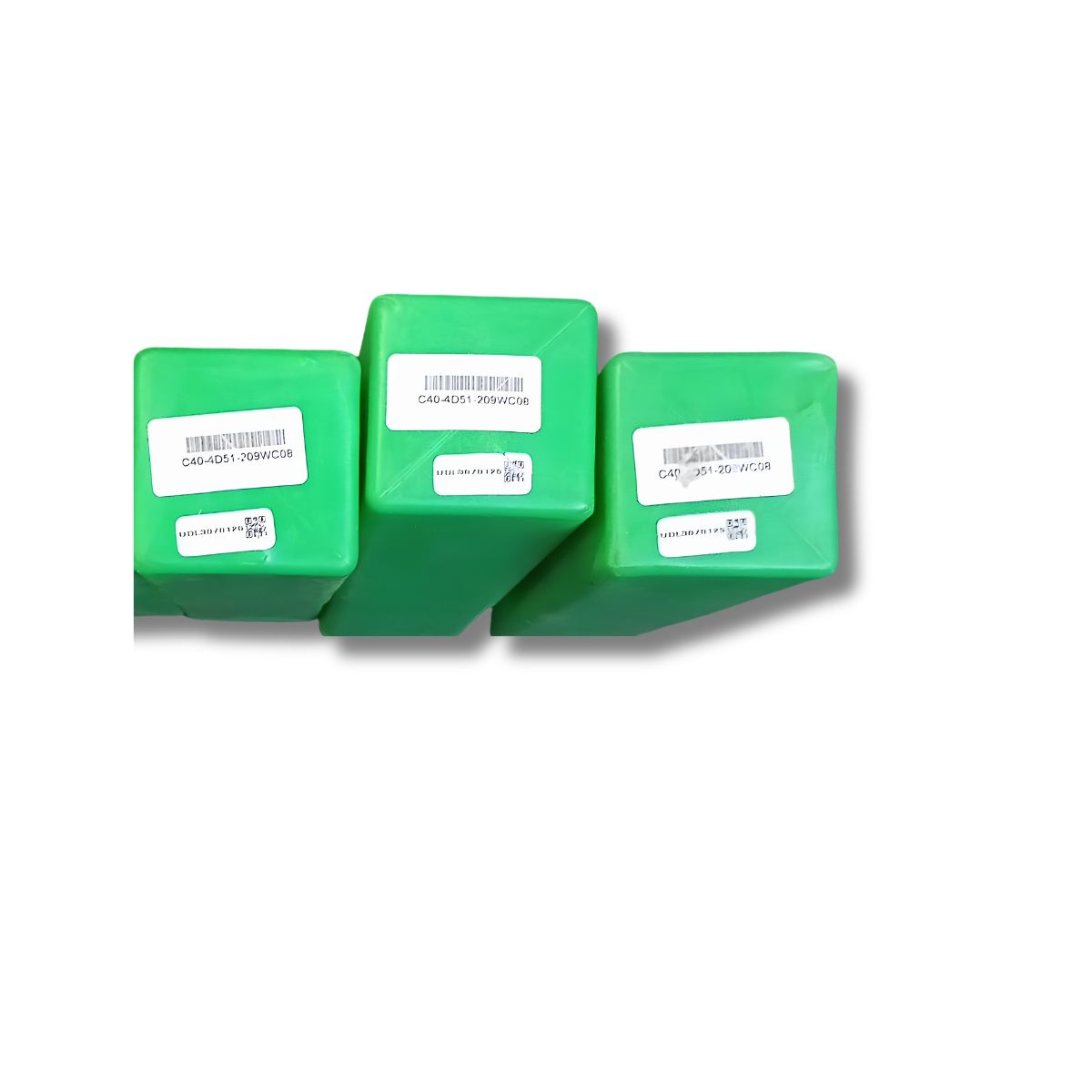

C4040-4D51-209WC08

C4040-4D51-209WC08

Brand: TOOLFARM

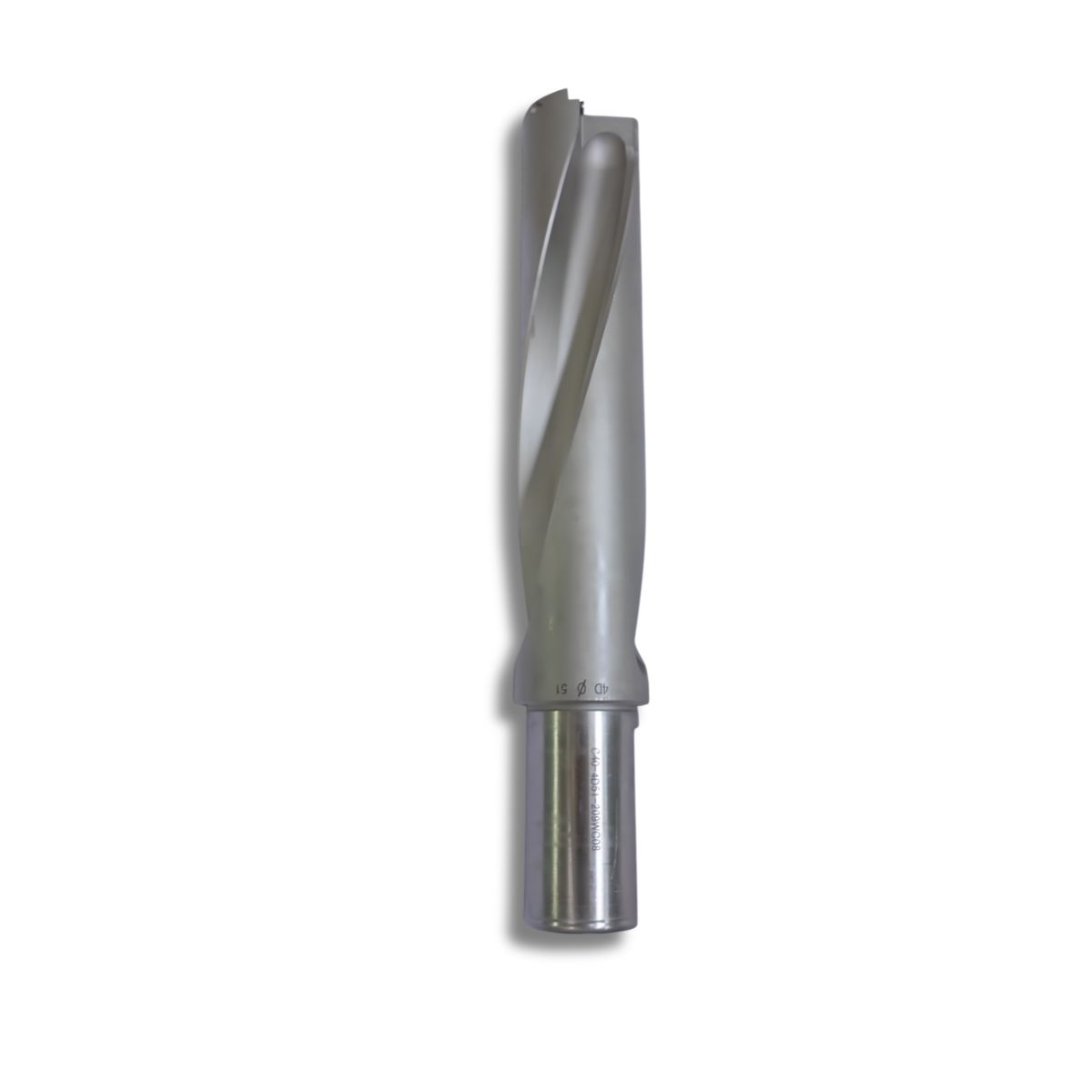

The C4040-4D51-209WC08 is a heavy-duty indexable U-Drill (Short Hole Drill) body designed for cutting wide 51 mm diameter holes on high-torque CNC machines.

₹5600.00

₹5600.00

Share on:
product details

  • C40 (or C4040): Indicates a straight cylindrical Weldon shank diameter of 40 mm to fit standard side-lock tool holders securely.

  • 4D: Represents the tool depth capacity. It can drill up to 4 times its own diameter into a solid metal block safely.

  • 51: The exact hole cutting diameter is 51 mm.

  • 209: The maximum flute working length (drilling depth) is 209 mm.

  • WC08: Built with specialized pocket geometries optimized for WC.. 0804.. series trigon inserts (e.g., WCMX 080412 or WCMT 080412).  .



Compatible Spares & Accessories

  • Required Carbide Inserts: WCMX 080412 or WCMT 080412 (Needs two inserts simultaneously: one inner and one outer pocket).

  • Torx Screw Specs: Standard M4 x 8 mm or M4 x 9 mm insert locking screws.

  • Torx Wrench Key: T15 standard driver flag.
