  • CNC TURRET SLEEVE Q50 16MMX100L
  • CNC TURRET SLEEVE Q50 16MMX100L

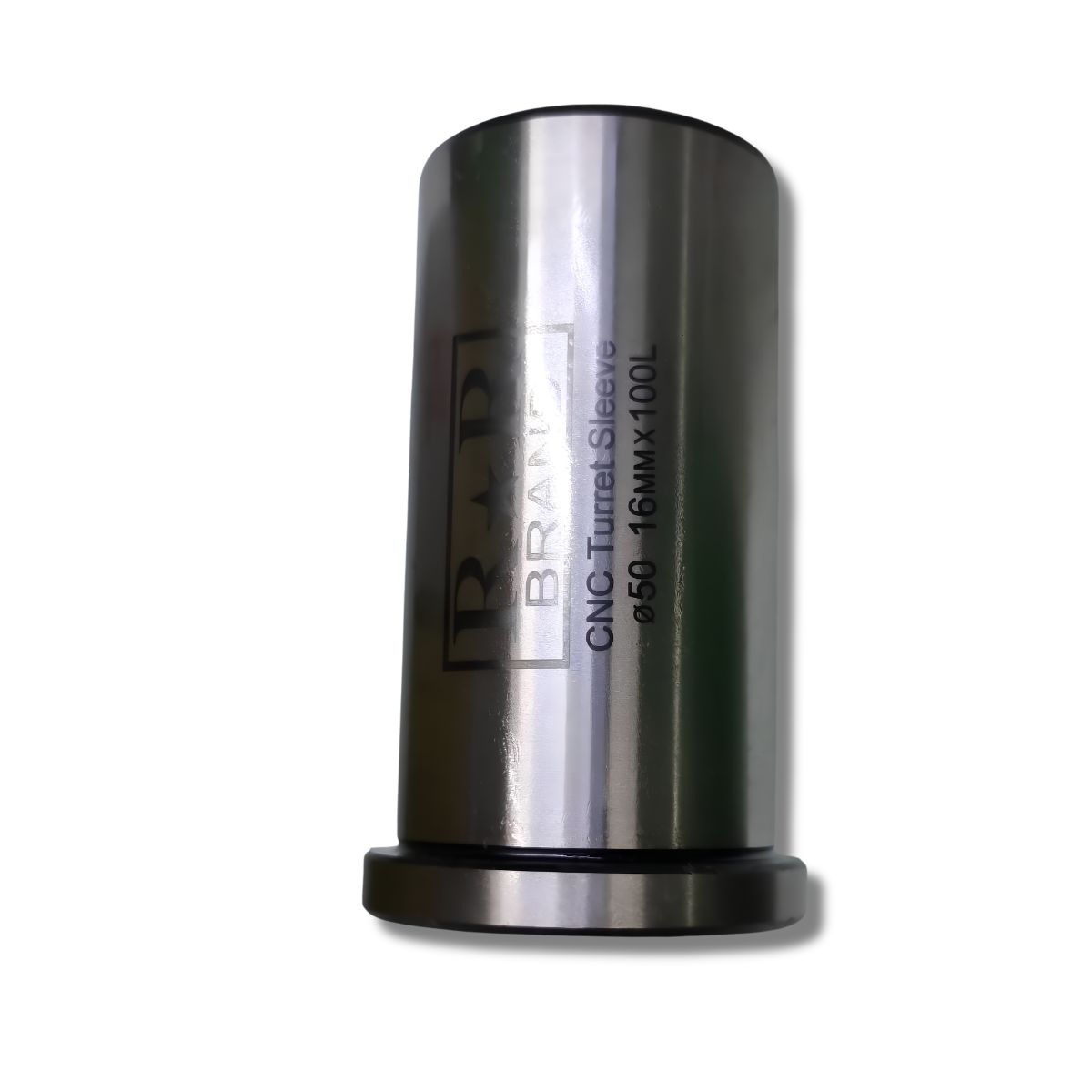

CNC TURRET SLEEVE Q50 16MMX100L

CNC TURRET SLEEVE Q50 16MMX100L

Brand: RR

The CNC TURRET SLEEVE Q50 16MMX100L is a Boring Bar Reduction Bushing designed to act as an adapter inside a CNC lathe turret block.

₹1600.00

₹1600.00

Share on:
product details

  • Q50 (Outer Diameter): The sleeve body has an outer diameter (OD) of 50 mm. This portion mounts flush into your CNC machine's standard 50mm turret pocket station.

  • 16MM (Inner Bore Size): The inside diameter (ID) hole measures exactly 16 mm. It is engineered to grip any 16mm parallel straight shank cutting tool.

  • 100L (Functional Length): The absolute total length of this hardened steel sleeve adapter measures 100 mm from front to back.

Production Features

  • Material Integrity: Formed from premium high-grade carbon or alloy steel. The piece undergoes a thorough quenching and heat-treatment cycle (55–62 HRC) to maximize rigid wear resistance.

  • Locking Mechanism: The sleeve features a standard split-bushing or side-collar flat layout. Your turret block's existing grub screw locks down onto the sleeve, simultaneously clamping both the sleeve and internal cutter securely in place.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.

You May Also Like

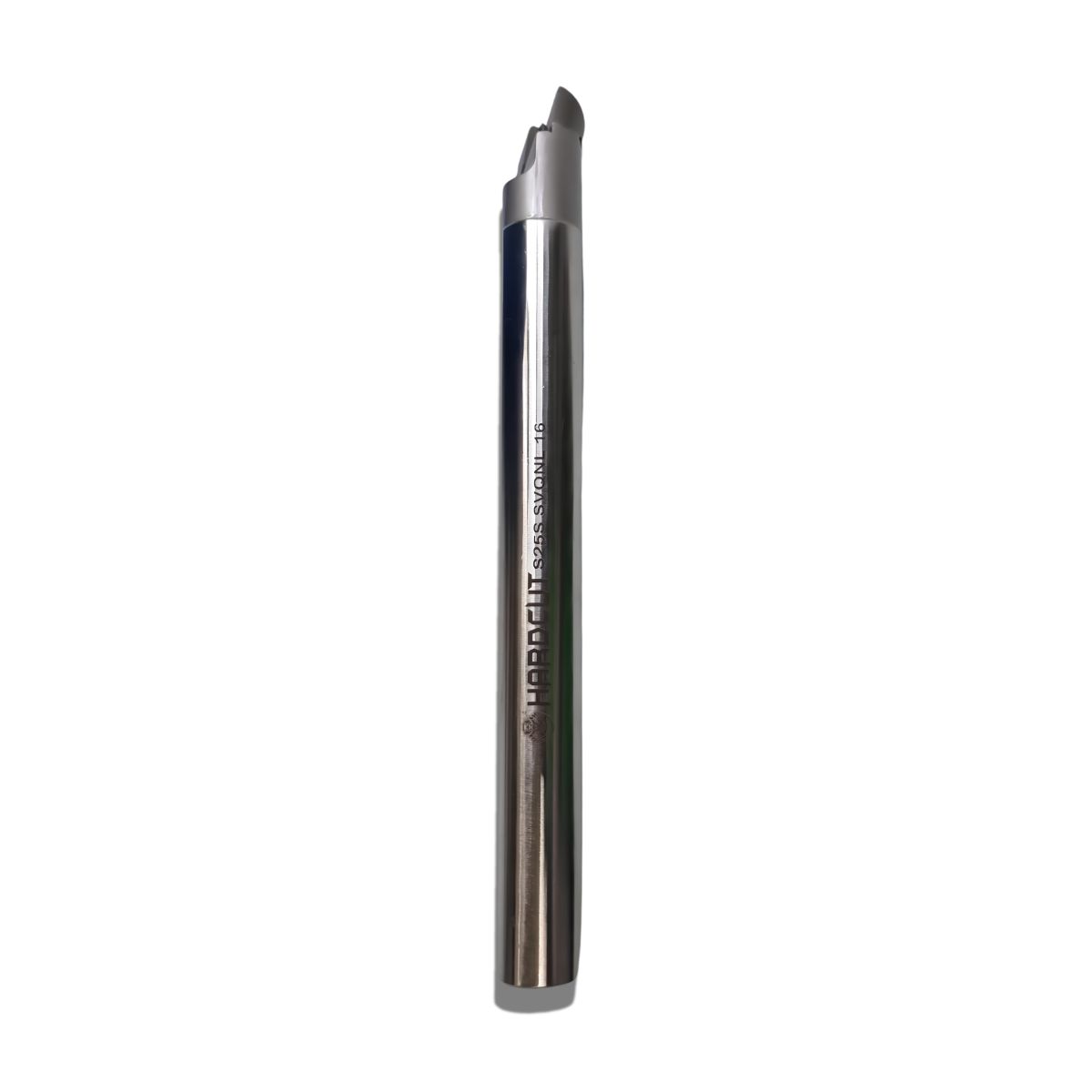

S25S SVQNL 16
