  • CSKNR 2525M 12-10
  • CSKNR 2525M 12-10

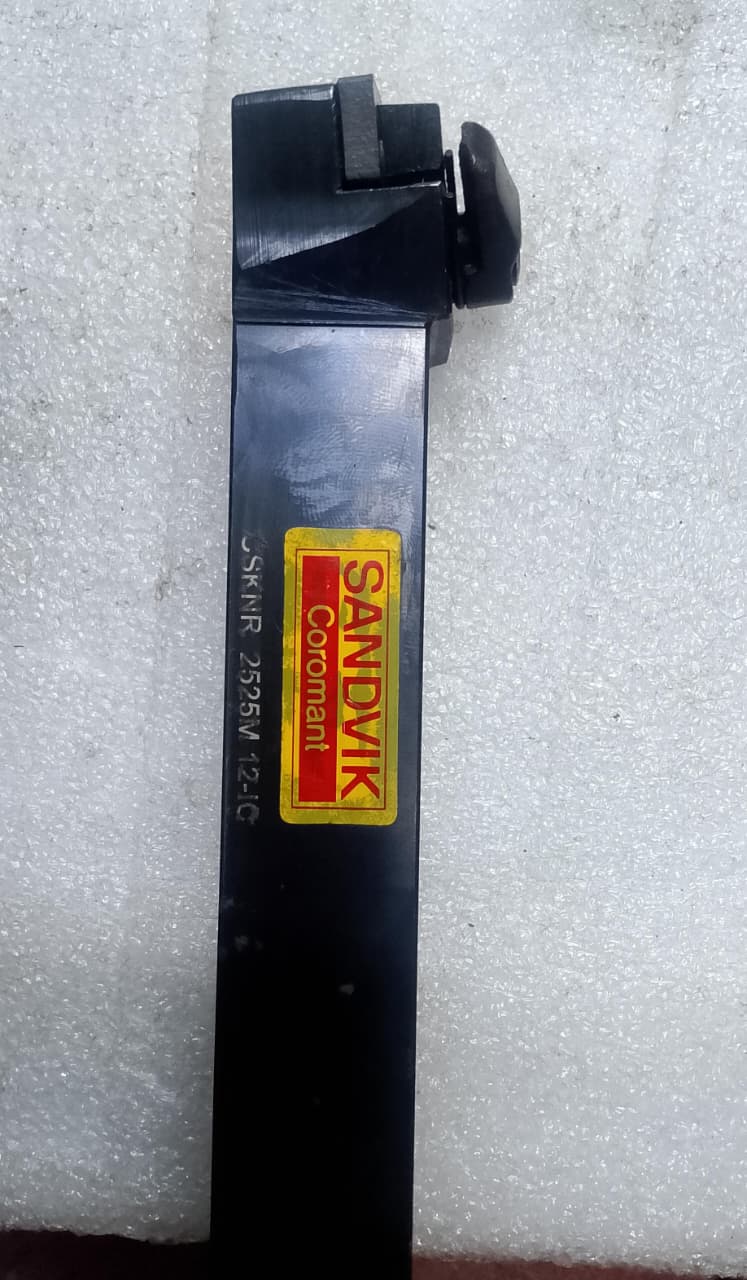

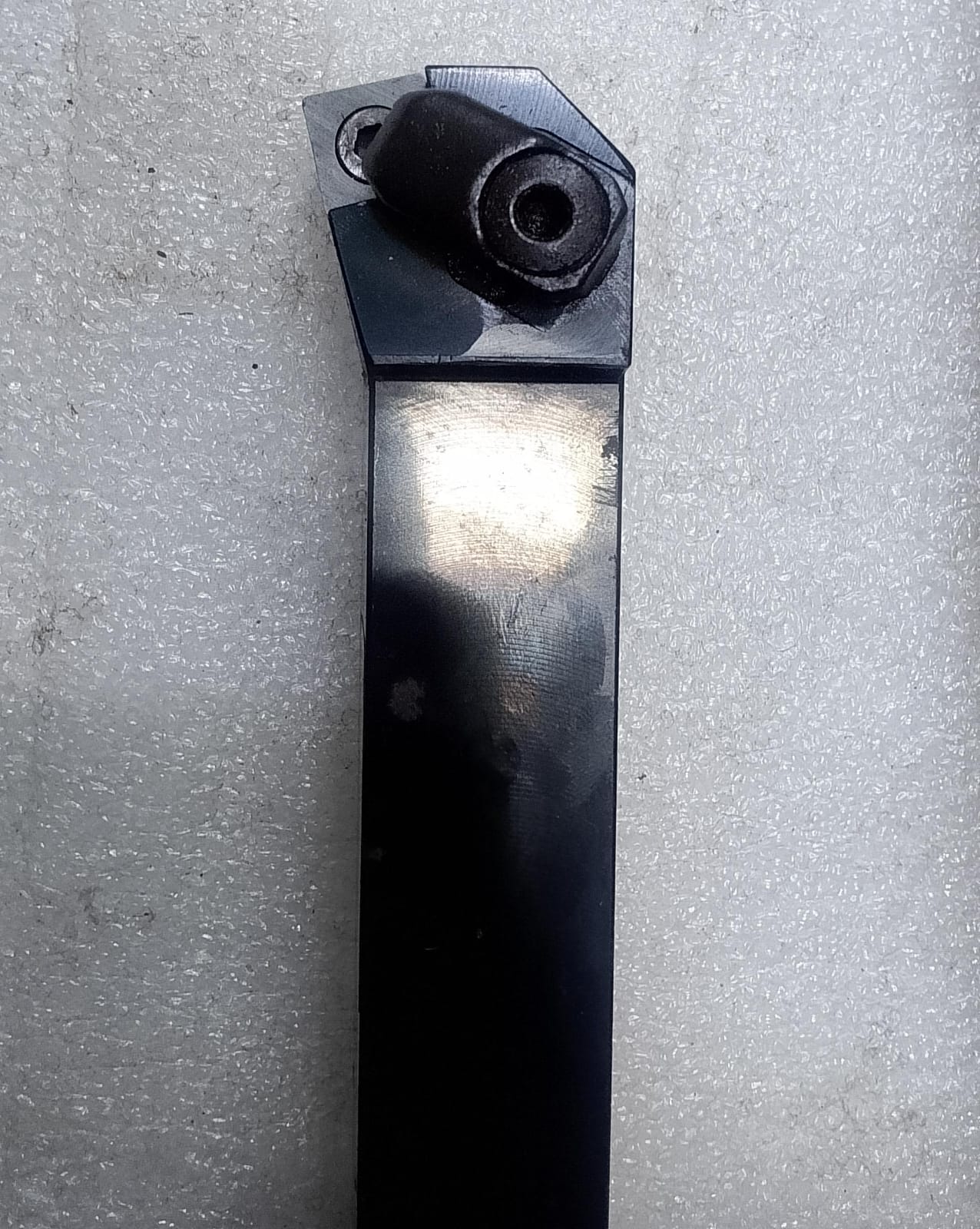

CSKNR 2525M 12-10

CSKNR 2525M 12-10

Brand: SANDVIK

The CSKNR 2525M 12-10 is an ISO-standard indexable turning tool holder designed for heavy-duty facing and external turning. Its primary feature is the 75° approach angle, which allows for high metal removal rates with square inserts

₹9600.00

₹9600.00

Share on:
product details
  • C: Top Clamping system (provides high rigidity for heavy cuts).
  • S: Square insert shape (SNMG or SNGN inserts).
  • K: 75° approach (lead) angle (ideal for heavy facing and roughing).
  • N: Negative rake angle for maximum edge strength.
  • R: Right-hand cutting direction.
  • 2525: Shank size (25 mm height × 25 mm width).
  • M: Tool length (typically 150 mm).
  • 12: Insert size code (uses inserts with ~12.7 mm inscribed circle).
    • 10: Indicates the specific shim or thickness modification (often for thicker inserts like SNMG 1207.. or SNMG 1208..). [1, 2, 3, 4, 5, 6]
SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.

You May Also Like

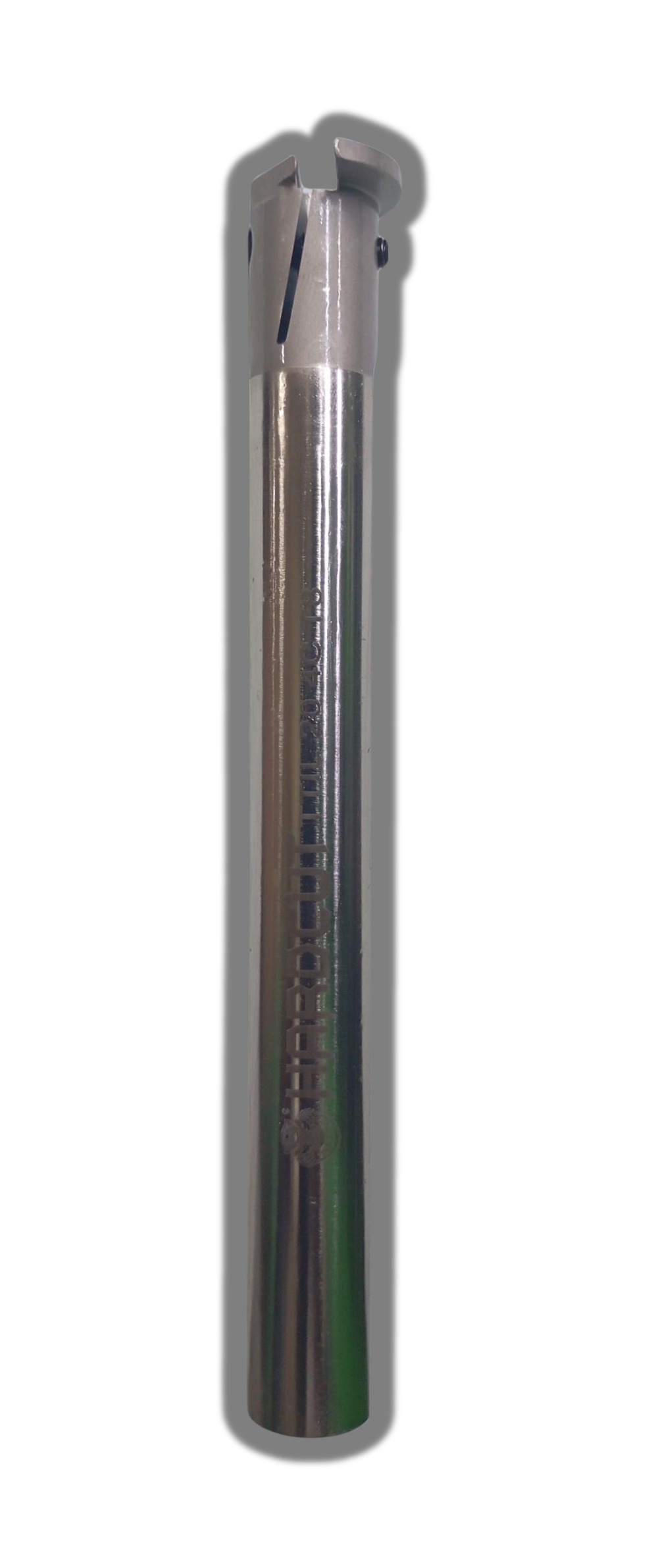

S20-TTIL-2MM-HOLDER
