  • H - TTIL 16 3C 16
  • H - TTIL 16 3C 16
H - TTIL 16 3C 16

H - TTIL 16 3C 16

Brand: HARDCUT

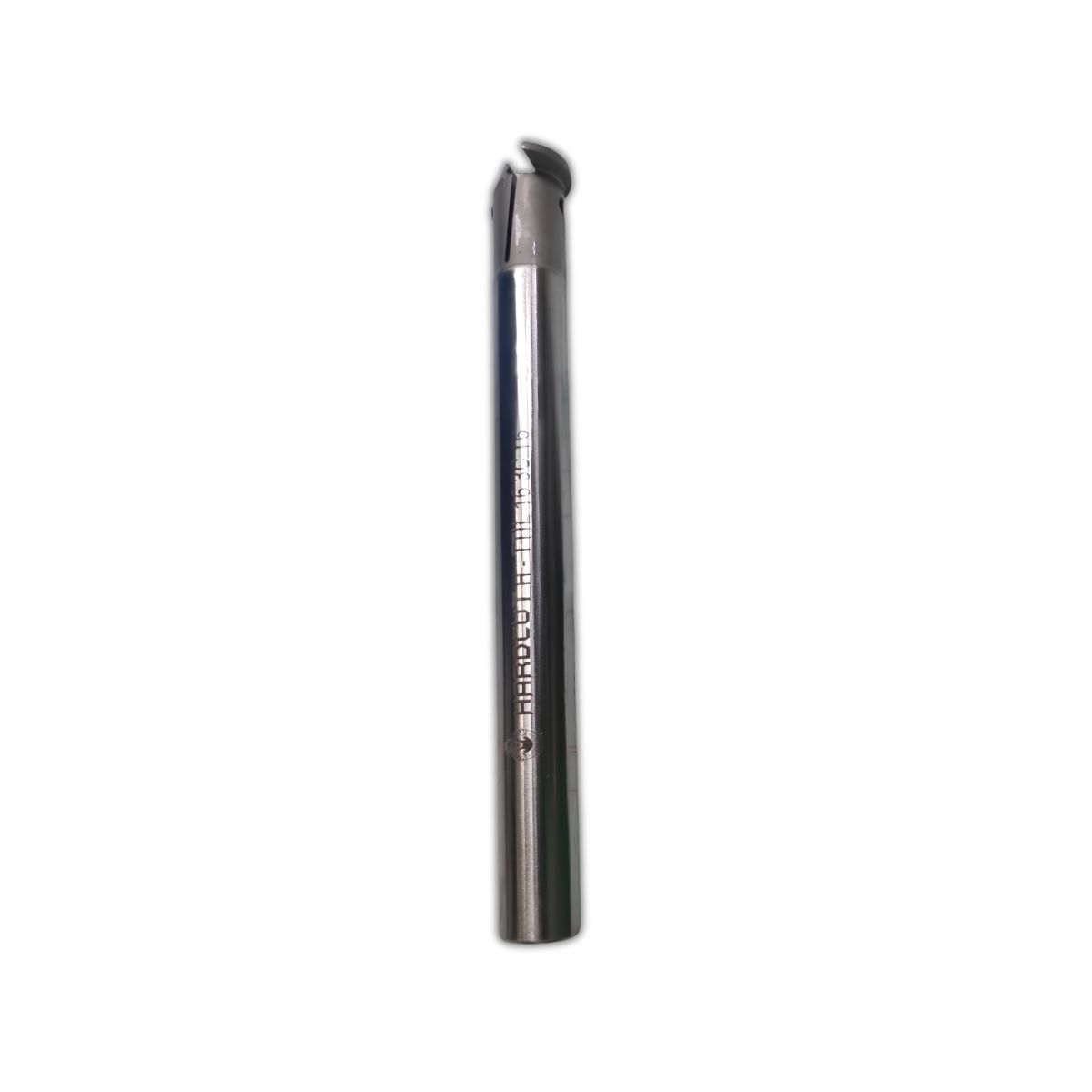

It is specifically an Internal Left-Hand Face Grooving and Boring Bar manufactured .H- (Coolant Feature): Indicates that the boring bar has an internal through-coolant hole system. This blasts high-pressure coolant directly at the cutting edge to push chips out of deep, tight internal face cavities.

₹1400.00

₹1400.00

Share on:
product details

H- (Coolant Feature): Indicates that the boring bar has an internal through-coolant hole system. This blasts high-pressure coolant directly at the cutting edge to push chips out of deep, tight internal face cavities.
TTIL (Series & Direction): Represents a TaeguTec Internal Left-Hand (L) face grooving tool line using their signature T-Clamp system.
16 (Shank Diameter): The round mounting bar features a 16 mm outer diameter.
3C (Insert Clamping Width): The pocket seat is machined to tightly secure 3.0 mm wide indexable grooving inserts (such as standard TaeguTec TDC 3, TDJ 3, or TDT 3 series).
16 (Minimum Entry Bore / Diameter): Indicates that the minimum tool clearance allows it to safely enter a pre-drilled bore diameter starting around 16 mm without rubbing.
Matching Machine Tooling
Because this bar has a 16 mm round shank, it can be mounted directly into a large CNC turret station by sliding it straight into your previously discussed CNC Turret Sleeve Q50 16MMX100L to achieve perfect rigidity.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.

You May Also Like

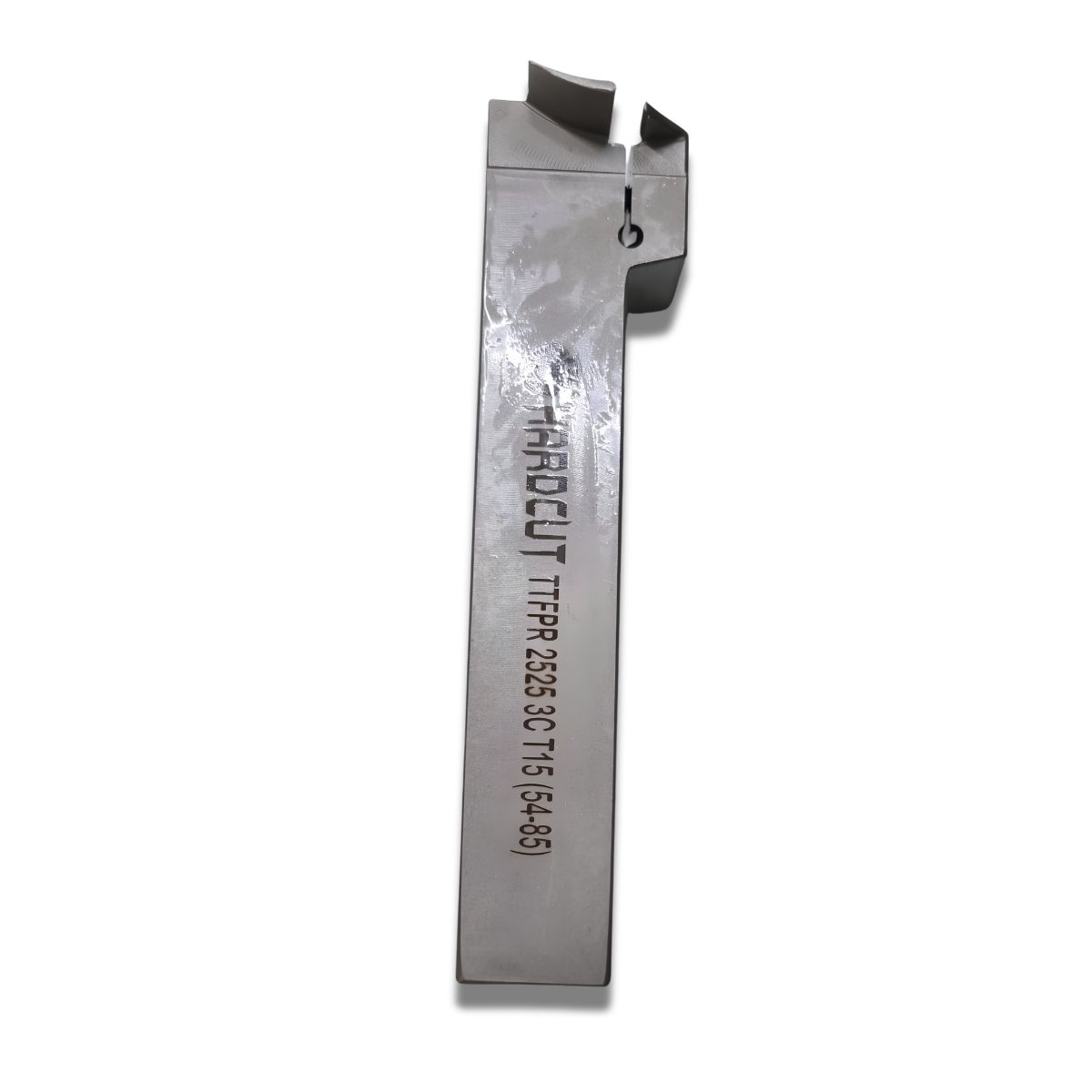

TTFR 2525 3C T15(54-85)
