  • TTFR 2525 4C T35 (260-370)
  • TTFR 2525 4C T35 (260-370)

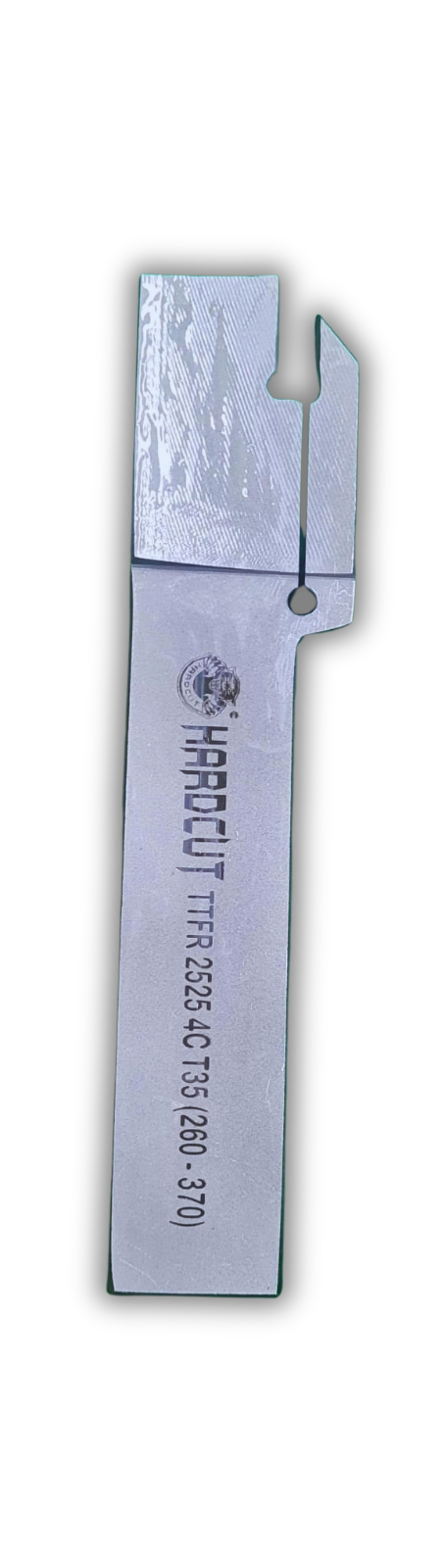

TTFR 2525 4C T35 (260-370)

TTFR 2525 4C T35 (260-370)

Brand: HARDCUT

The model designation TTFR 2525 4C T35 (260-370) represents an external, high-performance face grooving, parting, and turning toolholder.

₹3500.00

₹3500.00

Share on:
product details
  • TTFR: Designates an External Right-Hand (R) face grooving and turning toolholder body oriented to feed across the face of the component along the shaft.
  • 2525: Indicates a heavy-duty, square-shank mounting footprint measuring 25 mm height \(\times \) 25 mm width (\(0.984" \times 0.984"\)). This provides maximum structural rigidity to absorb plunging forces and eliminate machine chatter.
  • 4C: Specifies the insert pocket seating size, precision-milled to rigidly clamp 4.0 mm wide grooving inserts (such as the TDC 4, TDT 4, or TDA 4.00 series).
  • T35: Details the maximum cutting depth capability (CDX / \(T_{max}\)) of 35 mm (\(1.378\) inches) before the shoulder of the holder clearances interfere with the face of the workpiece.
    • (260-370): Identifies the highly specific Face Grooving Diameter Range (\(D_{min} - D_{max}\)). The specific radial curve of this tool head allows it to clear axial plunge tracks starting at a minimum interior diameter of 260 mm up to a maximum outer boundary of 370 mm. Using this tool outside of this diameter arc will result in the tool heel crashing into the material curve.
SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
