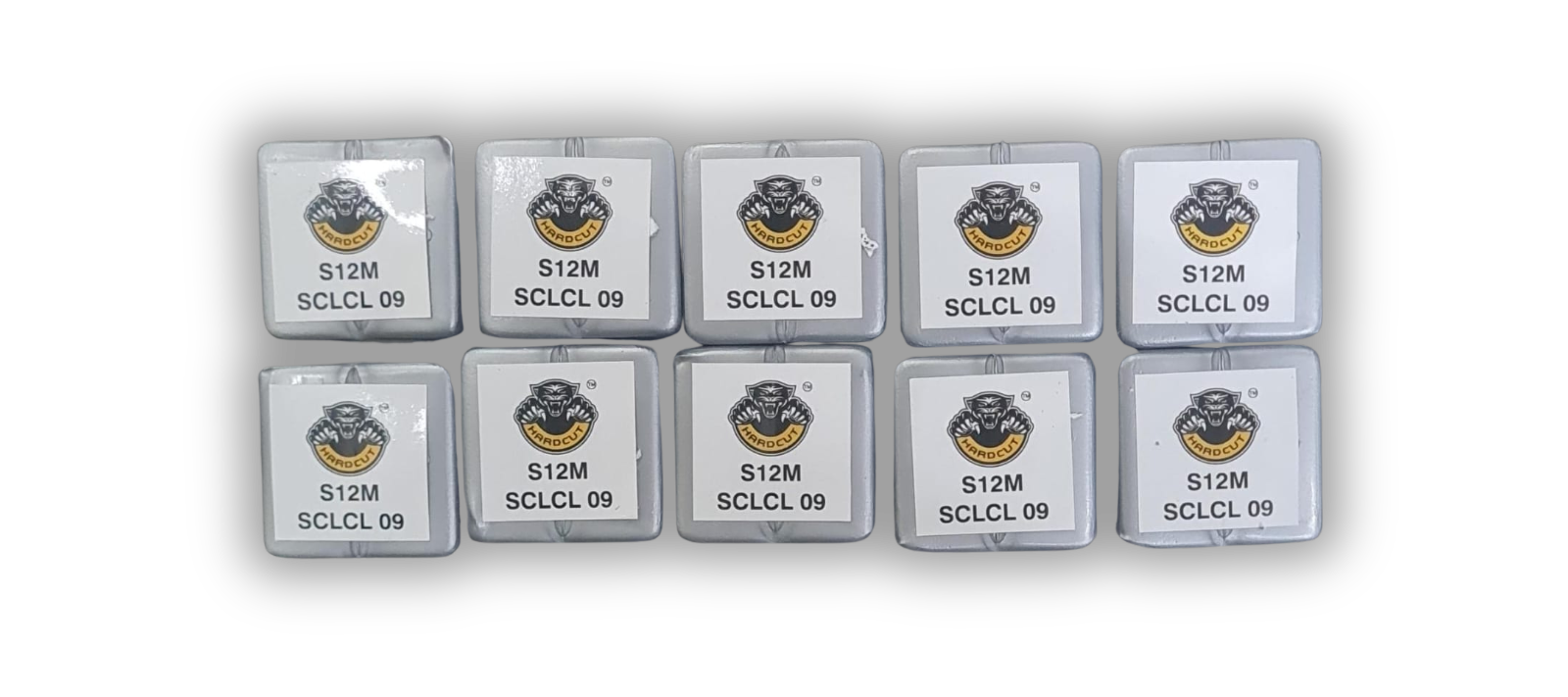

S12M SCLCL 09

S12M SCLCL 09

Brand: HARDCUT

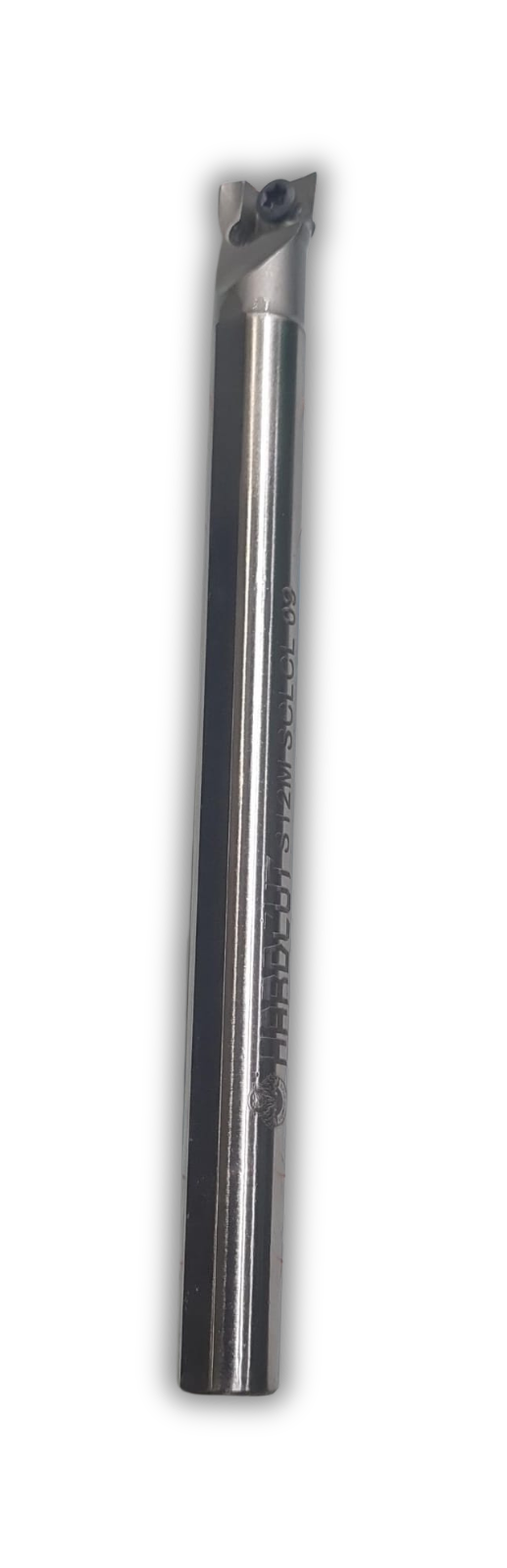

The model designation S12M SCLCL 09 represents a compact, solid-steel shank internal boring bar (turning tool holder) designed for light precision internal turning, profiling, and boring operations on CNC or manual lathes.

₹890.00

₹890.00

Share on:
product details
  • S: Identifies a solid steel shank structure (providing robust rigidity for standard boring depths).
  • 12: Indicates a 12 mm shank diameter (\(0.472\) inches) designed for small-bore machining.
  • M: Details the standard functional tool length, representing an overall length of 150 mm (\(5.90\) inches).
  • S: Specifies the insert clamping mechanism. It uses a screw-down clamping system where a Torx screw passes through the center hole of the insert, maximizing chip clearance in tight spaces.
  • C: Designates the primary insert shape. The pocket is precision-milled exclusively for 80° rhombic (diamond) inserts (the ubiquitous CC.. series).
  • L: Identifies the tool cutting edge approach angle, indicating a 95° lead angle (\(-5°\) side cutting edge angle) designed for boring straight shoulders and profiling.
  • C: Specifies a 7° positive normal clearance rake angle, meaning it holds single-sided inserts with built-in relief to reduce cutting forces.
  • L: Indicates a Left-hand (L) cutting direction tool orientation.
  • 09: Represents the nominal cutting edge length of 9 mm, engineered to fit standard size CC.. 09T3.. inserts (such as CCMT09T304 or CCMT09T308)
SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.

You May Also Like

TTFL-2525-2C-150TO300-HOLDER
TTFL-2525-2C-150TO300-HOLDER
3744.00
4492.00
TTFR-2525-4T20-40TO100-HOLDER
TTFR-2525-4T20-40TO100-HOLDER
3744.00
4492.00
TTFL-2525-3M-30TO160-HOLDER
TTFL-2525-3M-30TO160-HOLDER
3744.00
4492.00
TTFL-2525-4T20-40TO100-HOLDER
TTFL-2525-4T20-40TO100-HOLDER
3744.00
4492.00
S 32S ECLNL M12
S 32S ECLNL M12
4000.00
4800.00
TTFR-2525-4T20-80TO150-(HOLDER)
TTFR-2525-4T20-80TO150-(HOLDER)
3744.00
4492.00
TTFR-2525-2C-80TO150-HOLDER
TTFR-2525-2C-80TO150-HOLDER
3744.00
4492.00
TTFL-2525-3M-40TO100-HOLDER
TTFL-2525-3M-40TO100-HOLDER
3744.00
4492.00

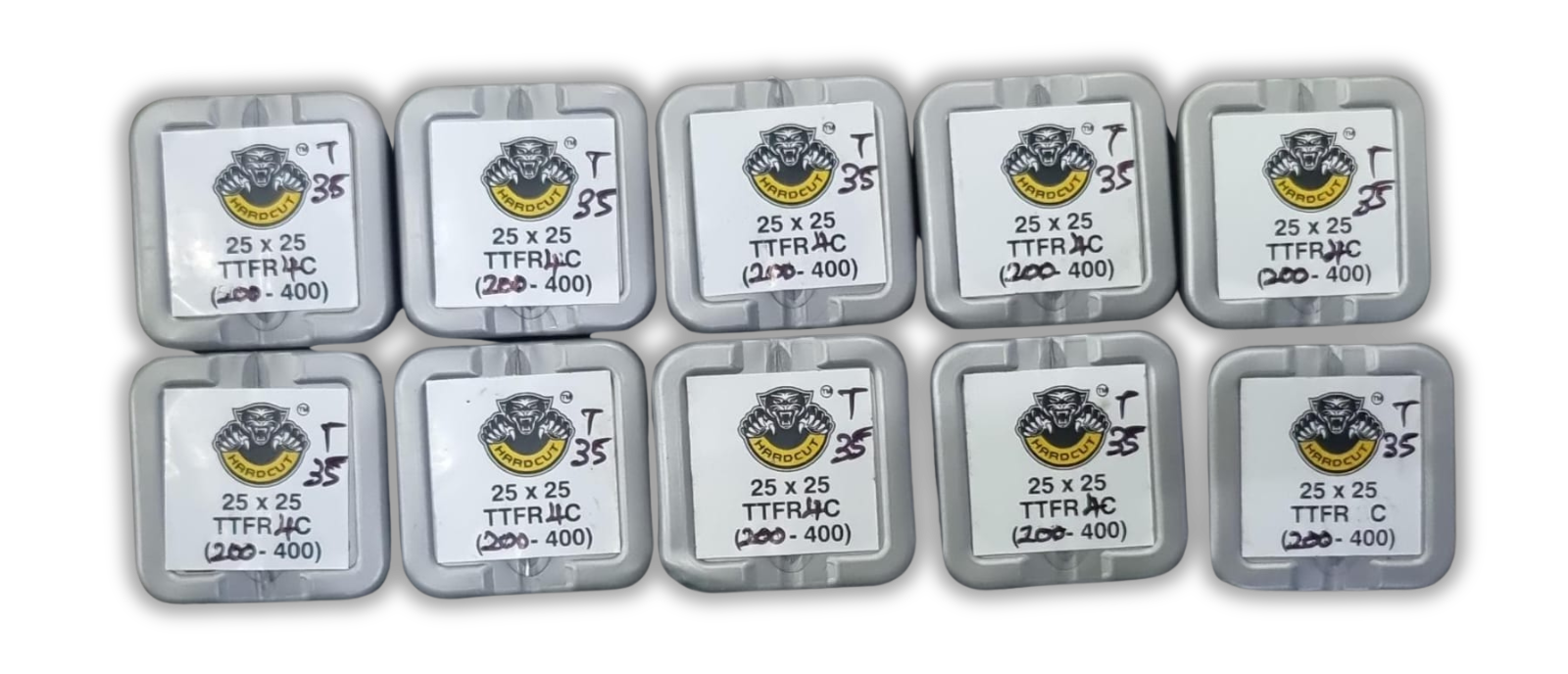

TTFR 2525 4C T35 (200-400)
