  • TTFR 2525 4C T35 (200-400)
  • TTFR 2525 4C T35 (200-400)

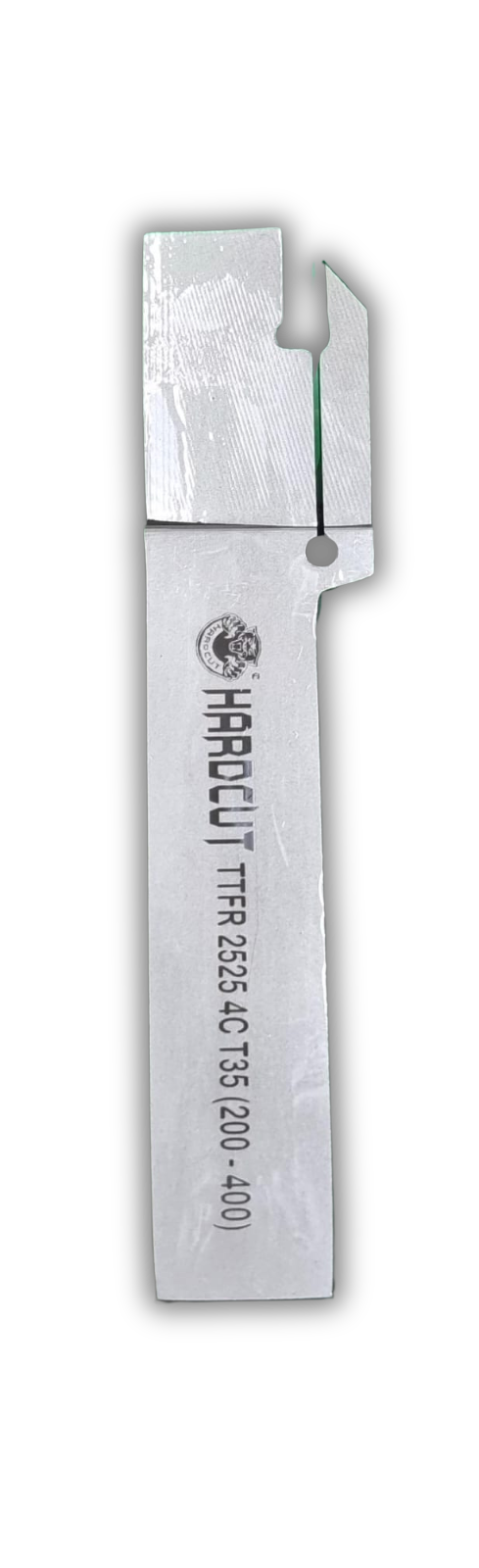

TTFR 2525 4C T35 (200-400)

TTFR 2525 4C T35 (200-400)

Brand: HARDCUT

The model designation TTFR 2525 4C T35 (200-400) represents an external, high-performance face grooving, parting, and turning toolholder.

₹3500.00

₹3500.00

Share on:
product details
  • TTFR: Designates an External Right-Hand (R) face grooving and turning toolholder body oriented to feed across the face of the component along the shaft.
  • 2525: Indicates a heavy-duty, square-shank mounting footprint measuring 25 mm height \(\times \) 25 mm width (\(0.984" \times 0.984"\)). This square profile provides maximum structural rigidity to handle intense plunging forces and damp lathe vibration.
  • 4C: Specifies the exact insert seating pocket size, precision-milled to rigidly clamp 4.0 mm wide parting and grooving inserts (such as the widespread TDA 4.00, TDC 4, or TDT 4 series).
  • T35: Details the maximum safe axial cutting depth capability (CDX / \(T_{max}\)) of 35 mm (\(1.378\) inches) before the shoulder of the holder body clearances interfere with the face of the workpiece.
    • (200-400): Identifies the targeted Face Grooving Diameter Range (\(D_{min} - D_{max}\)). The specific radial curve of this tool head allows it to clear axial plunge tracks starting at a minimum interior diameter of 200 mm up to a maximum outer boundary of 400 mm. Using this tool outside of this specific 200 mm to 400 mm diameter window will cause the lower heel of the holder blade to crash into the workpiece's material curve.
SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
