  • S50U EDUNL 15
  • S50U EDUNL 15
  • S50U EDUNL 15

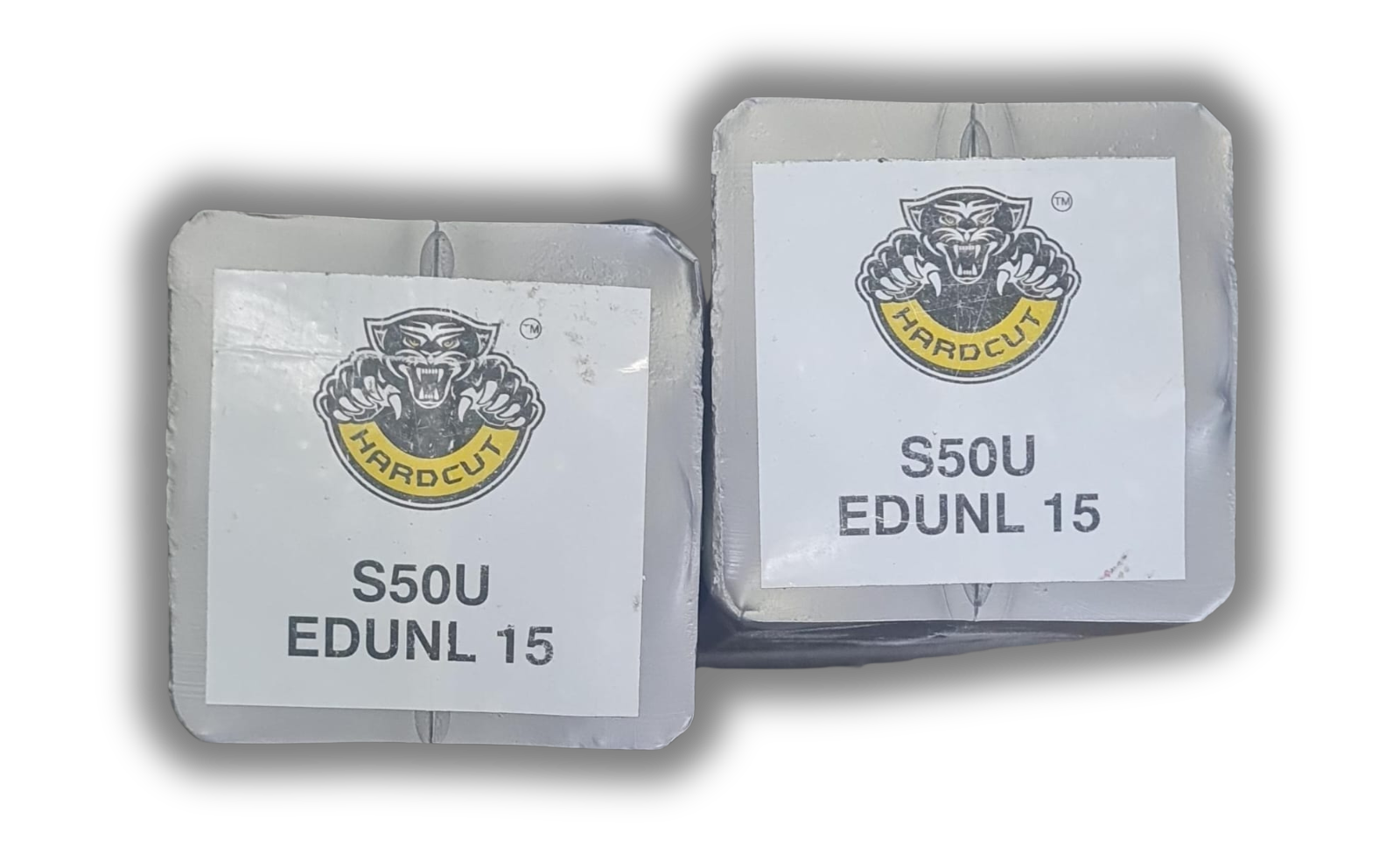

S50U EDUNL 15

S50U EDUNL 15

Brand: HARDCUT

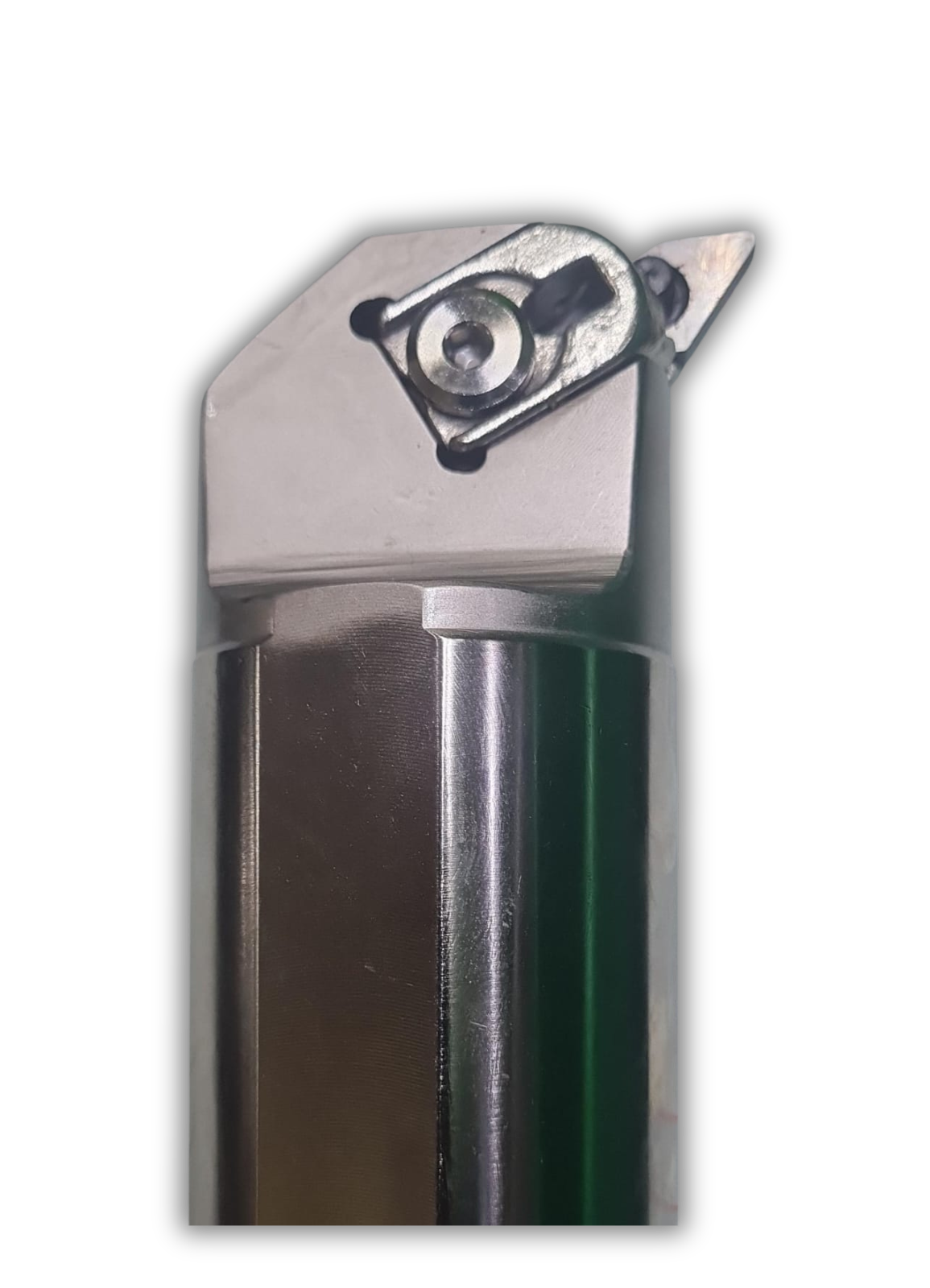

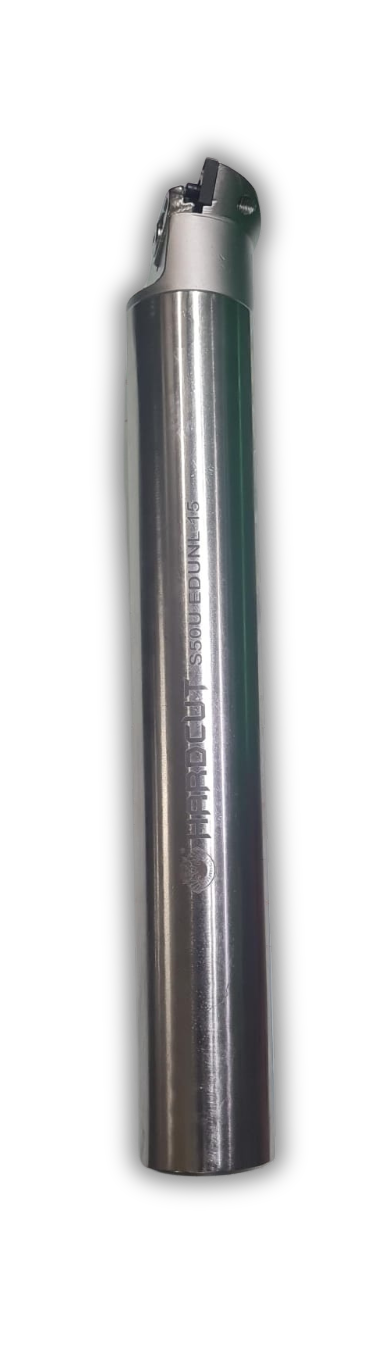

The model designation S50U EDUNL 15 represents a heavy-duty, solid-steel shank internal boring bar (turning tool holder) designed for heavy internal turning and profiling operations on CNC and manual lathes.

₹6500.00

₹6500.00

Share on:
product details
  • S: Identifies a solid steel shank substrate (as opposed to an "A" type with an internal coolant hole or a "C" type carbide-core shank).
  • 50: Indicates a massive 50 mm shank diameter (\(1.968\) inches), providing extreme structural rigidity to resist deflection over long overhangs.
  • U: Details the functional tool length, representing a standard length of 350 mm (\(13.78\) inches).
  • E: Specifies the insert clamping system. This tool utilizes a heavy-duty Top and Hole Clamping (Double-Clamp) system. It applies structural pressure via both a top clamp and an internal pin to secure the insert rigidly during heavy depth-of-cut roughing.
  • D: Designates the primary insert shape. The pocket is precision-milled exclusively for 55° negative rhombic (diamond) inserts (the standard DN.. series, such as DNMG or DNMM).
  • U: Identifies the tool cutting edge approach angle, indicating a 93° lead angle (\(-3°\) side cutting edge angle) engineered for standard profiling, shoulder clearance, and backward boring.
  • N: Specifies a 0° normal clearance rake angle, signifying that this bar holds negative-rake inserts which feature dual cutting faces (top and bottom) for maximum edge economy.
  • L: Indicates a Left-hand (L) cutting direction tool orientation (meaning the spindle rotates in reverse or the tool cuts toward the tailstock depending on machine configuration).
    • 15: Represents the nominal cutting edge length of 15 mm (\(0.590\) inches), designed to fit standard size DN.. 1506.. inserts (e.g., DNMG150608 or DNMG150612 .
