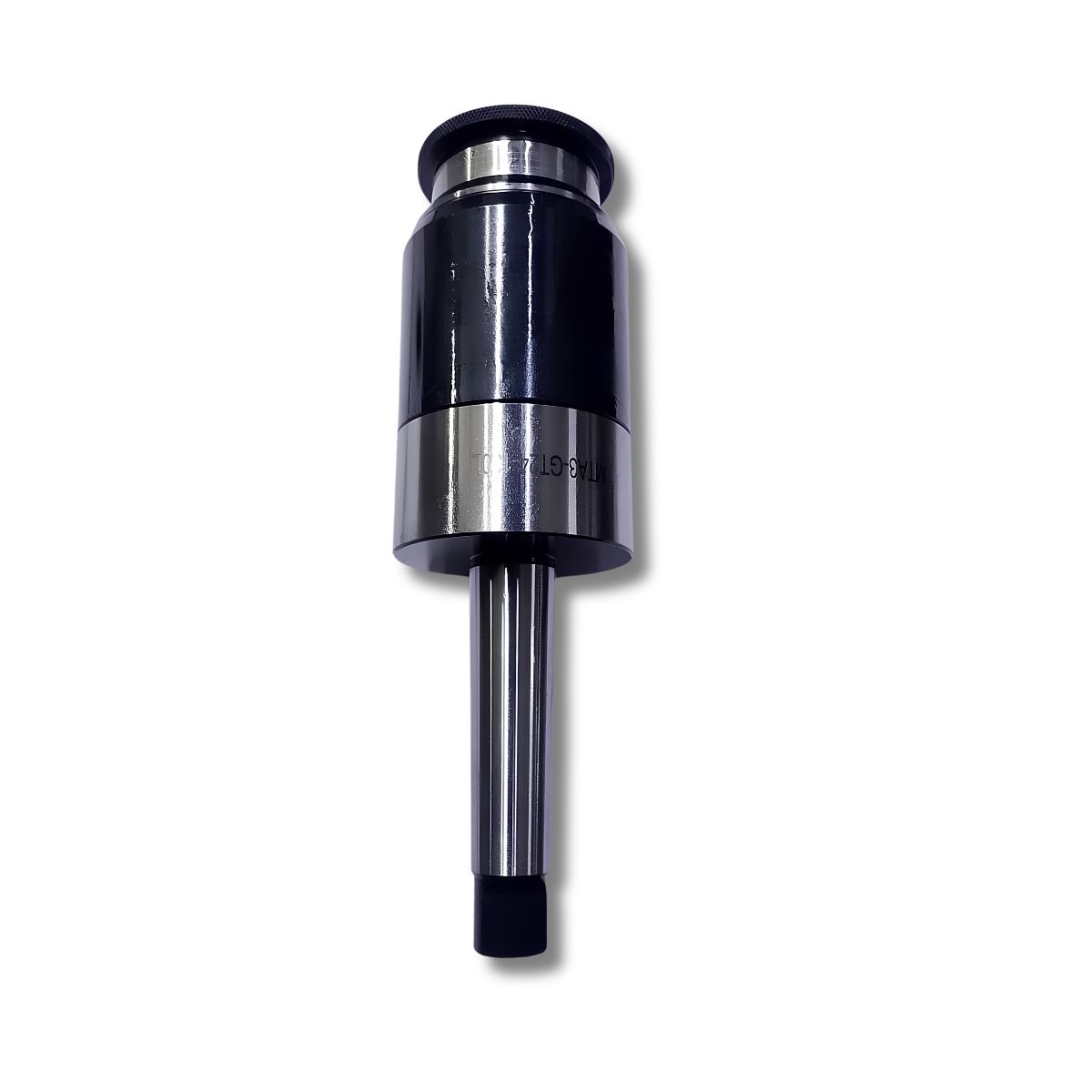

1. TECHNICAL CODE BREAKDOWN
MT3: DESIGNATES THE MACHINE-SIDE SHANK SPECIFICATION AS A NO. 3 MORSE TAPER. IT CONFORMS TO THE DIN 228 OR ISO 296 STANDARD FOR TAPERED MACHINE SPINDLES, TAILSTOCK BORES, OR DRILL SLEEVES.
GT24: DESIGNATES THE FRONT-END QUICK-CHANGE FEMALE RECEIVER CONNECTION SIZE. THIS COUPLING PORT IS DESIGNED EXCLUSIVELY TO HOUSE AND INTERLOCK WITH GT24 TYPE QUICK-CHANGE TAPPING COLLETS (WHICH HANDLE TAP SIZES TYPICALLY RANGING FROM M6 UP TO M30).
2. KEY ATTRIBUTES & DESIGN
AXIAL LENGTH COMPENSATING FLOAT (OPTIONAL SPEC): DEPENDING ON THE EXACT MANUFACTURER SUB-MODEL, MANY GT24 CHUCKS FEATURE Built-In INTEGRATED TELESCOPIC SPRING COMPENSATION. THIS ALLOWS FOR EXTENSION AND COMPRESSION RUNS TO RECTIFY DEFLECTION VARIATIONS BETWEEN THE SPINDLE FEED RATE AND THE NATURAL LEAD SPECTRUM PITCH OF THE TAP.
RIGID TAPER ALIGNMENT: THE HARDENED MORSE TAPER SHANK ENGAGES IN PERFECT RECENTRING MATING SEALS INSIDE REAMING APPARATUS CORES. THIS MINIMISES TOTAL RADIAL RUNOUT AND ELIMINATES THREAD FLANK DISTORTION PROBLEMS during HIGH-STRESS REAMING TREKS.
SNAP-IN RAPID INTERLOCK: EQUIPPED WITH A RAPID SLEEVE DESIGN PROFILE. RETAINING BALLS LOCK OR REALEASE THE COMPATIBLE DRIVING CLUTCH APPARATUS INSTANTLY (SUCH AS THE GT-24 18X14.5 COMPONENT) WITHOUT NEEDING SPANNERS OR CHUCK KEYS.
3. INDUSTRIAL APPLICATIONS
TARGET PROCESSES: HEAVY INDUSTRIAL REAMING TAPPING CYCLES, SEMI-AUTOMATED DRILLING MACHINE COUNTER-THREADING, AND CNC LATHE LIVE-TOOL PROCESSING ON RETROFIT TAPER SPINDLES.
COMMON MACHINERY: RADIAL DRILLING MACHINES, MAGNETIC DRILLS, MANUAL PILLAR PRESSES, TRADITIONAL CONVENTIONAL ENGINE LATHES, AND MORSE TAPER SPINDLE CNC BORING MACHINES.
