  • P6002-D17,00R WXK25
P6002-D17,00R WXK25

P6002-D17,00R WXK25

Brand: WAL

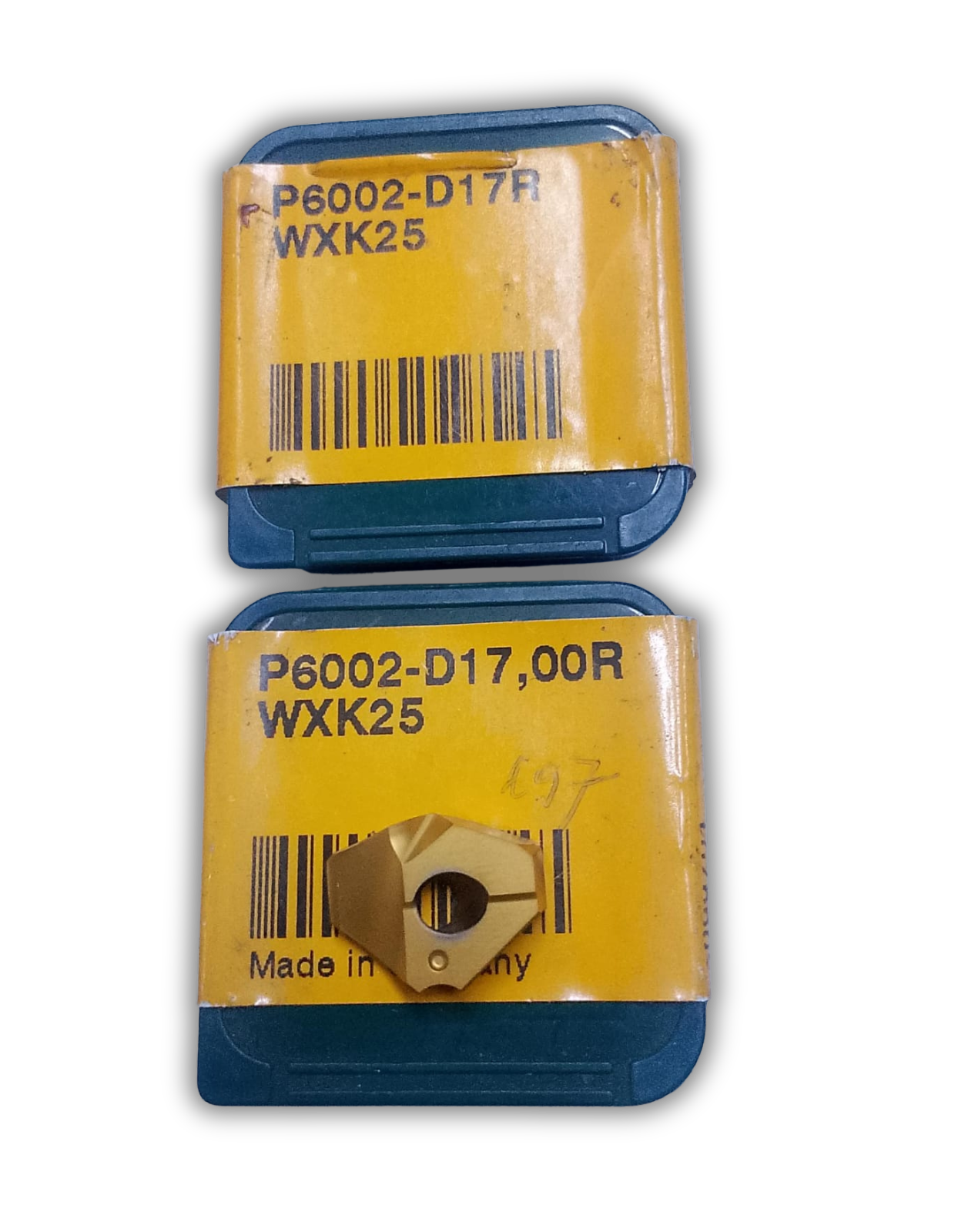

The model designation P6002-D17,00R WXK25 represents a premium, high-precision exchangeable carbide drill tip (drill insert) manufactured by Walter Tools.

₹4500.00

₹4500.00

Share on:
product details
  • Insert Style Geometry (P6002): Denotes a flat-type modular drill point profile featuring dual optimized cutting edges engineered with an advanced point thinning geometry to reduce torque and thrust forces.
  • Cutting Edge Diameter (D17,00R): Exactly 17.00 mm (\(0.6693\) inches) calibrated for standard Right-hand (R) spindle rotation.
  • Point Angle Profile: 140° precision split tip designed for excellent self-centering capability, which eliminates the need for a pilot hole and provides optimal alignment security.
    • Material Grade (WXK25): A highly specialised micro-grain carbide substrate combined with a physical vapor deposition (PVD) coating. Unlike the steel-centric WXP45 grade, the WXK25 grade is engineered with maximum wear resistance and edge toughness to deliver superior process reliability when drilling cast iron (ISO K), as well as being versatile enough to machine steel and abrasive materials.
