  • RAP 400R Q80-27-5T
  • RAP 400R Q80-27-5T
RAP 400R Q80-27-5T

RAP 400R Q80-27-5T

Brand: TOOLFARM

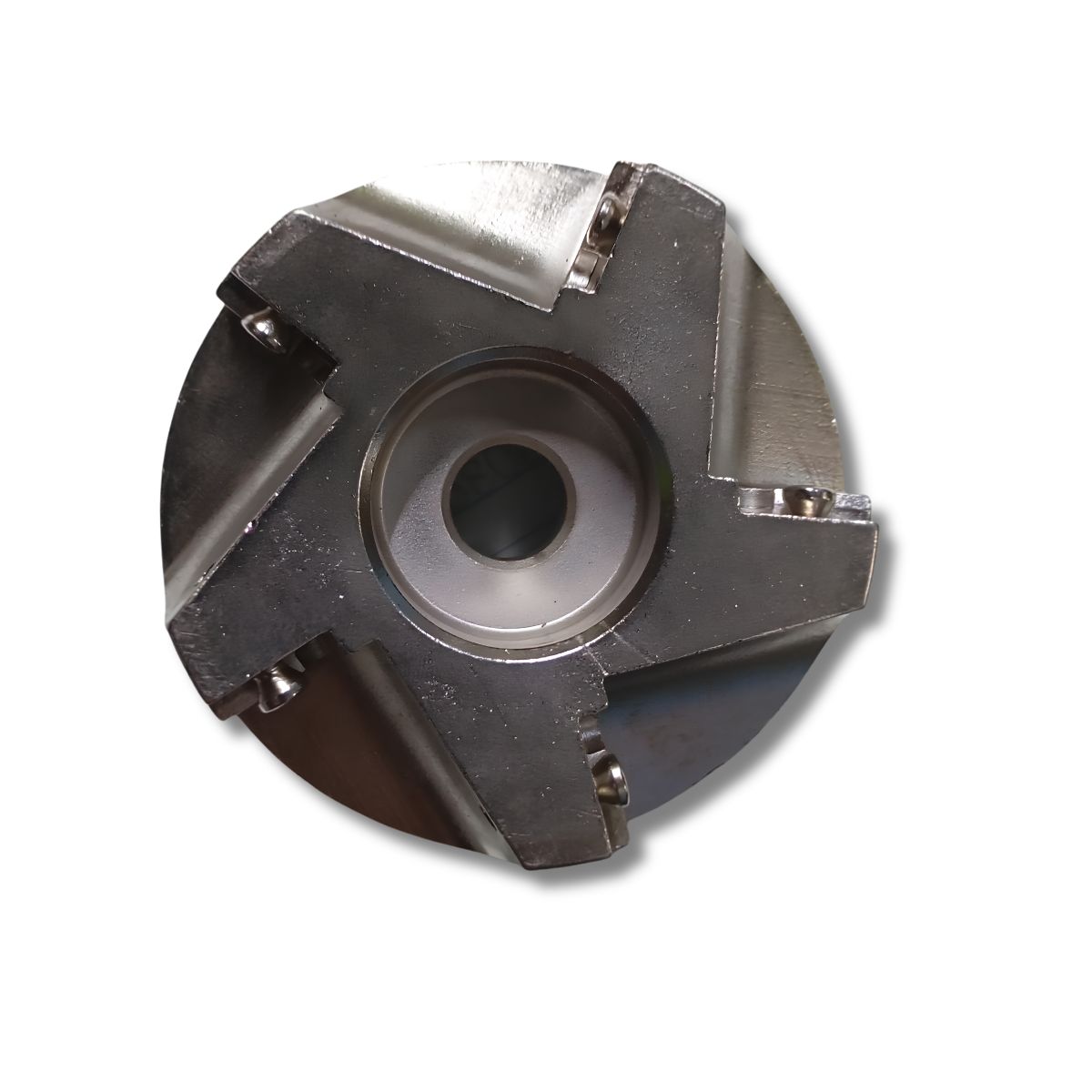

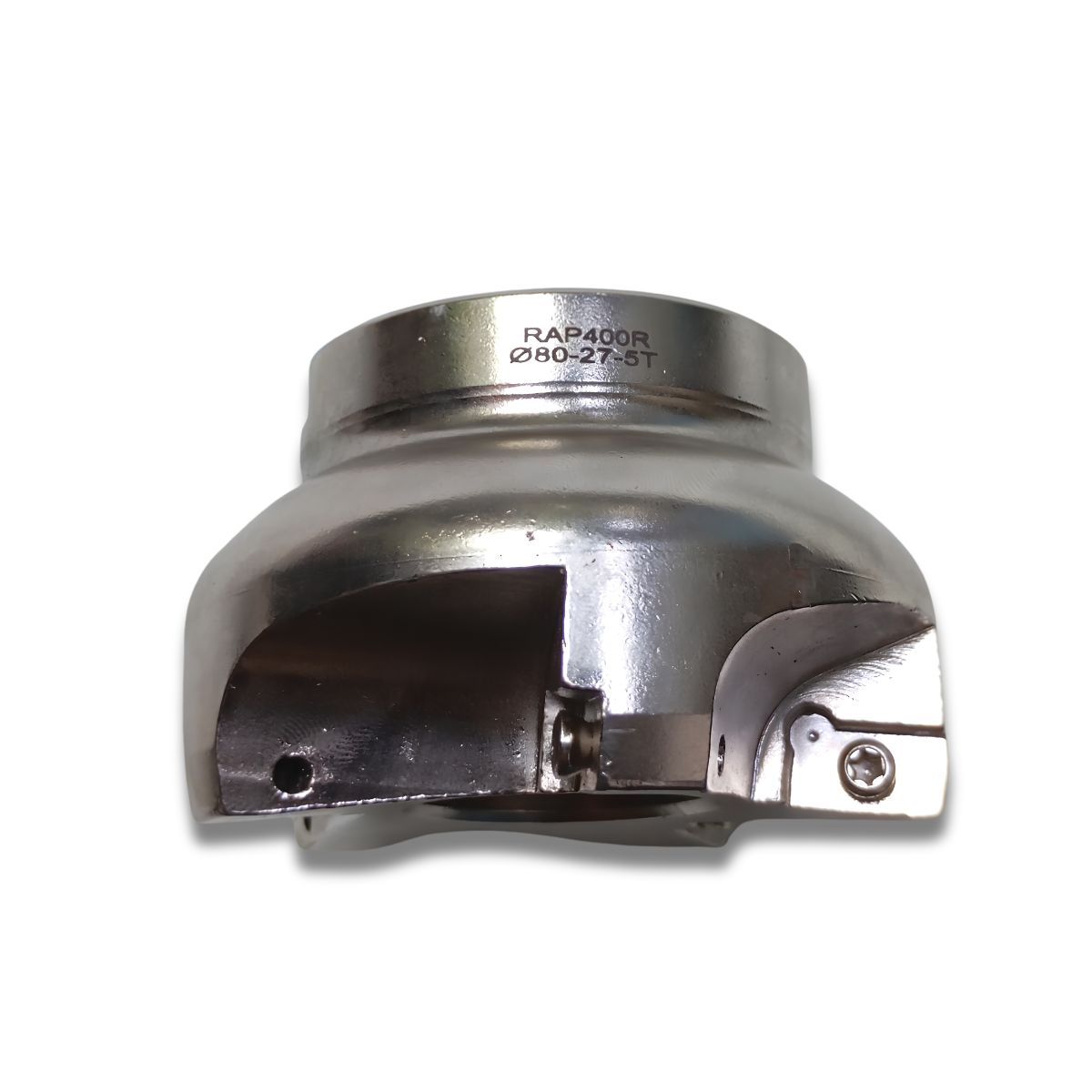

The RAP 400R Q80-27-5 (commonly designated as RAP400R-80-27-5T) is an industry-standard indexable face milling cutter head used in CNC machining centers and conventional vertical milling machines (VMCs). It is specifically designed for heavy-duty material removal, plane machining, and rough shoulder processing .

₹3500.00

₹3500.00

Share on:
product details

RAP 400R: The product series, featuring a 75-degree cutting edge angle optimized for high efficiency and lower waste angle cutting.
80: The outer processing/cutter disk diameter of 80 mm.
27: The inner hole or bore arbor diameter of 27 mm, which mounts onto an FMB27 tool holder.
5 (or 5T): Indicates the cutter head features 5 flutes / teeth, allowing it to hold 5 insert blades simultaneously.
Technical Specifications
Compatible Inserts: Standard APMT1604 or APKT1604 carbide inserts.
Clamping Mechanism: Screw-offset fastening design using M4 screws and a T15 wrench for insert stability.
Material Construction: High-strength alloy steel (typically 42CrMo or 40CrMo) providing shock and impact resistance.
Application Scope: Ideal for plane milling, steps, grooving, profiling, and machining hard metals, copper, or aluminum alloys depending on the insert grade used.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.
