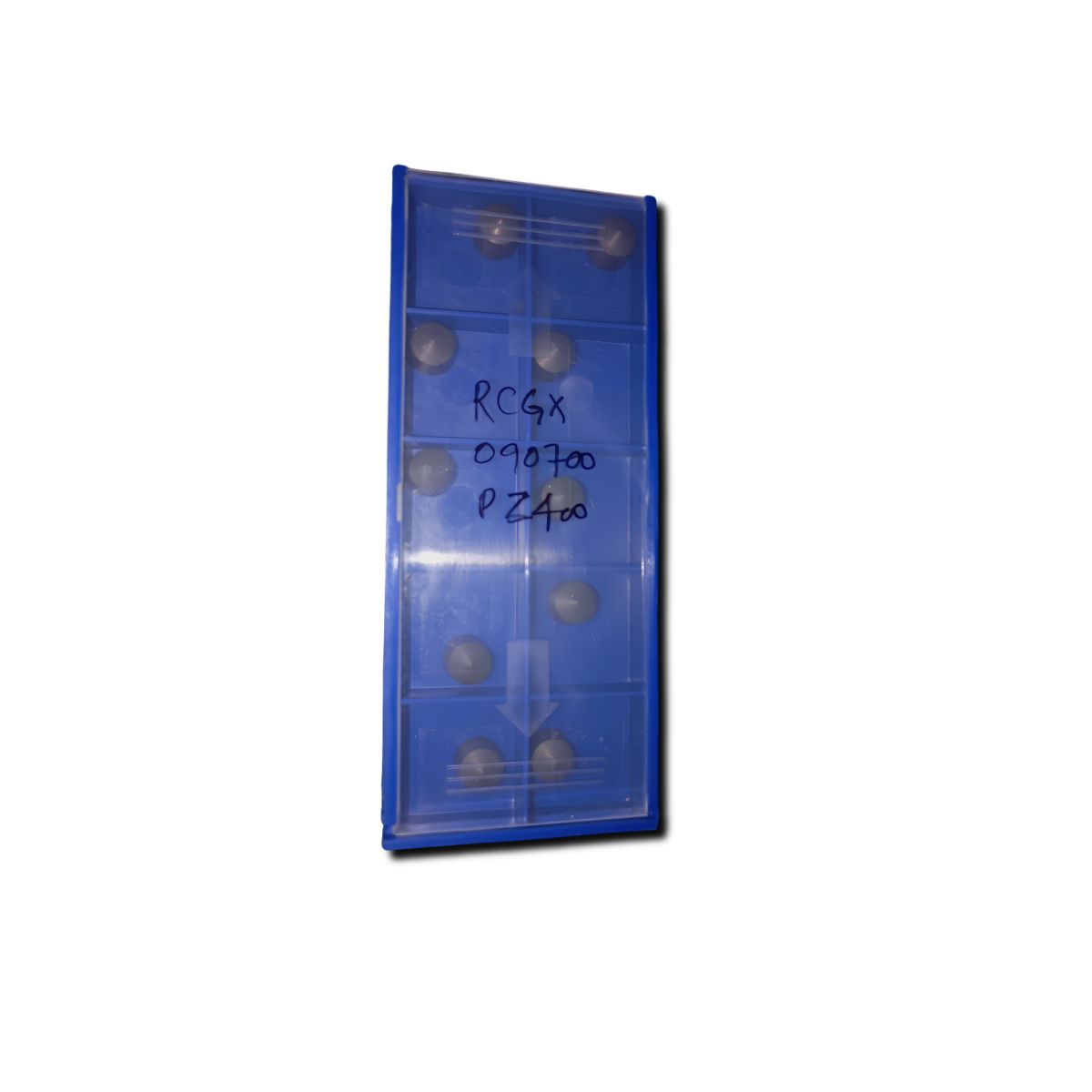

The RCGX090700 series from Pizen represents an essential production standard for heavy-duty profiling and hard turning operations.
The "R" shape designation indicates a completely circular profile, yielding a variable cutting angle that adapts seamlessly to varying depths.
Featuring a built-in 7-degree positive relief angle ("C"), it cuts cleanly through tough raw stock while keeping mechanical friction minimal.
Its high manufacturing precision ("G") ensures consistent part-to-part repeatability over massive industrial production batches.
A solid top layout without a center mounting hole ("X") relies on heavy-duty top-clamp style tool holders for maximum rigid locking.
The "09" code establishes a compact 9.52 mm inscribed circle diameter, ideal for generating tight, sweeping profiling paths.
A massive 7.94 mm thickness profile ("07") provides enormous structural mass to entirely resist cracking under heavy torque loads.
The trailing "00" indicates a continuous round edge profile, transforming the entire circumference into an exceptionally strong nose radius.
The defining driver of its long life is Pizen's advanced PZ400 industrial-grade micro-grain composition.
This grade acts as a highly effective thermal shield, actively routing red-hot cutting heat out of the tool and straight into the chip.
It actively prevents crater wear and edge chipping, common hazards when machining pre-hardened tool steels and forged components.
CNC programmers deploy these round inserts to smooth out rough, interrupted surfaces on large industrial shafts and die molds.
The circular edge allows for high feed rates while generating a smooth surface finish that easily replaces slow, costly grinding cycles.
It performs reliably across demanding sectors including automotive manufacturing, heavy energy production, and aerospace engineering fields.
Ultimately, this Pizen turning solution delivers an optimal balance of fast chip evacuation, high safety, and minimized tooling cost.
