  • S16/17 SIR 08 T20
  • S16/17 SIR 08 T20

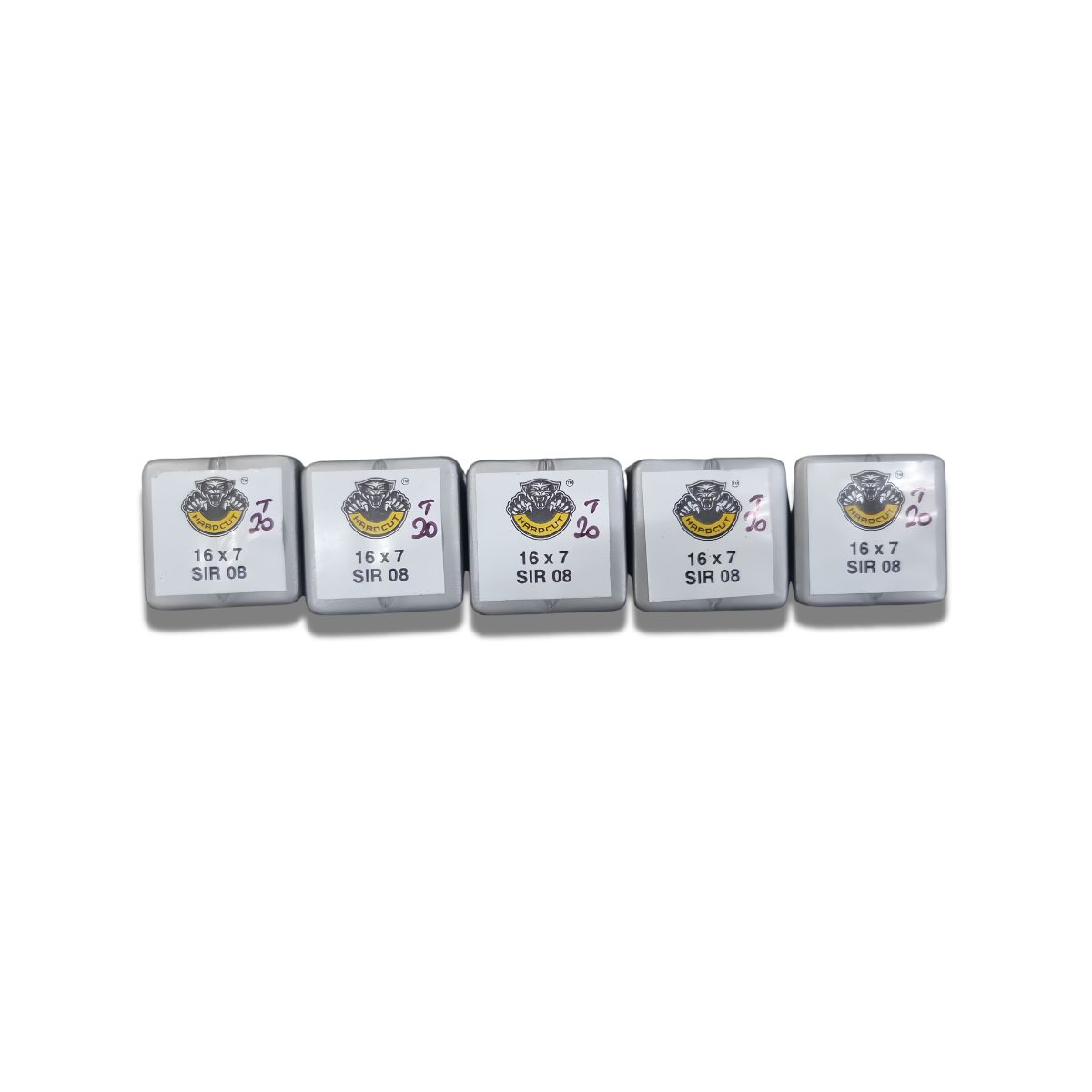

S16/17 SIR 08 T20

S16/17 SIR 08 T20

Brand: HARDCUT

It is specifically an Internal Right-Hand Boring Bar for Threading, engineered to machine high-precision internal screw threads inside pre-drilled holes on CNC or manual lathes.

₹1500.00

₹1500.00

Share on:
product details

S (Shank Material): Solid steel shank, providing dependable rigidity for general internal thread-turning applications.
16/17 (Shank Configurations): Denotes a stepped or dual-dimension profile body. The clamping diameter is a standard 16 mm shank which steps down/tapers or works with a specialized 17 mm functional neck clearance.
SIR (Series Type): Represents an Internal Right-Hand (R) Screw-on Threading Bar.
08 (Insert Size / Pocket Layout): Designed explicitly to hold standard layout 08IR (Internal Right-hand) indexable carbide threading inserts.
T20 (Maximum Boring Reach): Indicates a specialized safe maximum overhang or boring depth restriction up to 20 mm for the narrowest tip section before tool vibration or clearance issues occur.
Machine Setup & Pairings
Insert Compatibility: This pocket is machined exclusively to accommodate 08IR series laydown inserts (such as 08IR A60 profiles). This micro-sized configuration is highly popular for machining very fine, small-diameter internal threads (typically starting from an M10 or M12 minimum bore diameter).
Turret Integration: To mount this 16mm round shank securely into a large CNC turret station, it can be paired with a reduction bushing, exactly like the Q50 16MMX100L Turret Sleeve reviewed earlier.
