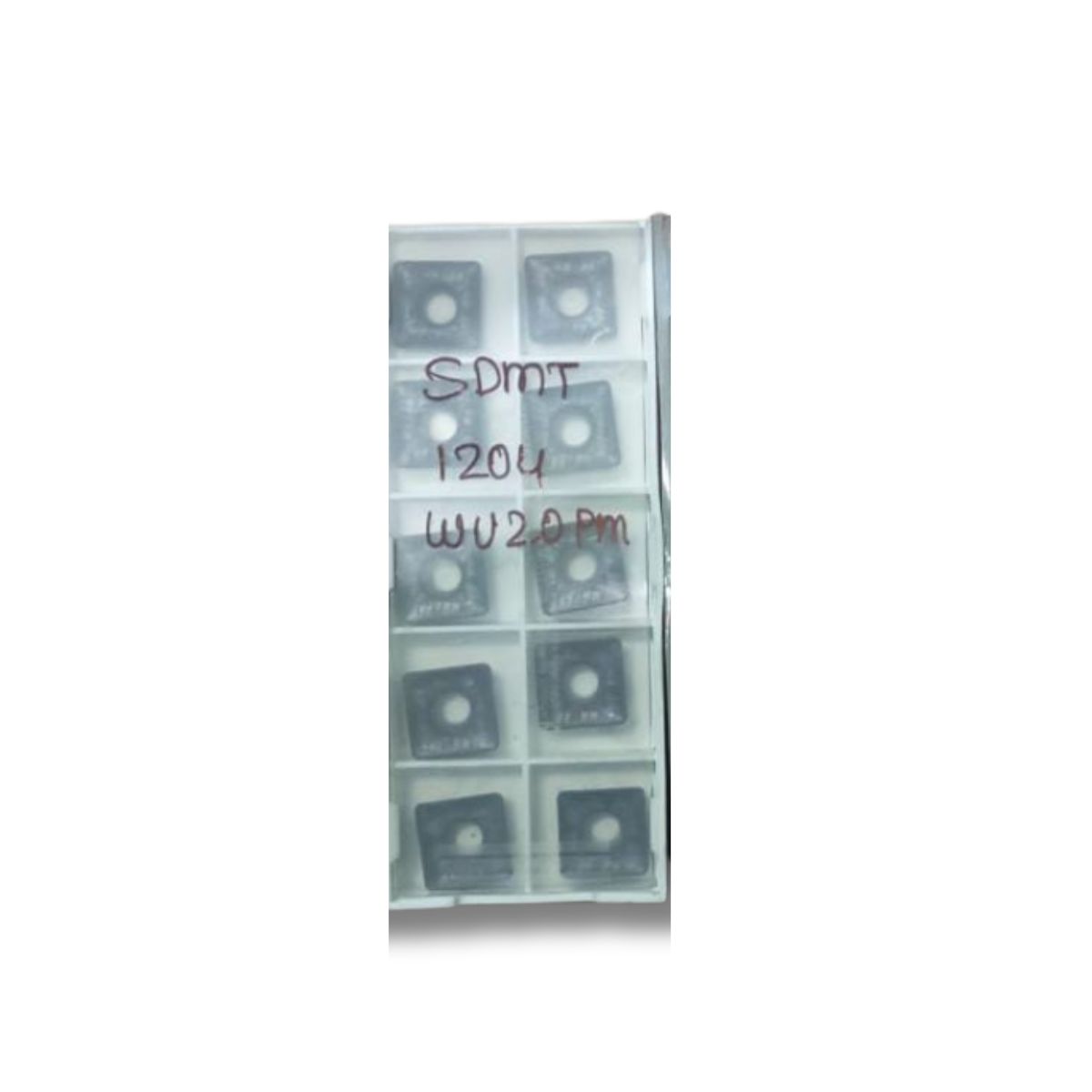

The SDMT 1204 series from WIDIA is built to meet the rigorous demands of high-output CNC milling centers globally.
Its "S" prefix identifies a symmetrical square geometry that locates securely inside the tool holder pocket to resist twisting.
Designed with a positive relief face, the insert cuts through metal with a shearing action rather than a blunt scraping motion.
This low-force cutting style actively suppresses structural chatter, preventing tool damage and stabilizing thin-walled parts.
The large 12.7 mm inscribed circle gives the insert an extended edge profile, supporting substantial radial step downs per pass.
The robust 4.76 mm body thickness provides massive thermal mass to absorb shock during heavy, interrupted face milling operations.
The standout feature of this industrial tool is WIDIA's proprietary WU20PM high-performance microfine carbide grade.
This grade uses a highly advanced PVD (Physical Vapor Deposition) coating layered onto a highly fracture-resistant matrix.
The dense coating creates a reliable ceramic barrier that prevents heat from penetrating into the core tungsten carbide body.
By managing thermal energy, it effectively stops built-up edge (BUE) formation when cutting sticky stainless steels and titanium alloys.
Engineered chip breaking grooves ground into the top face rapidly roll and fracture hot metal shavings into small curls.
Efficiently clearing chips away prevents them from scratching the finished surface or jamming the cutter during deep pocketing.
Machinists rely on this configuration inside high-feed face mills and modular indexable shoulder end mills.
It thrives under severe workshop conditions, including machining heavy automotive components, mold bases, and structural frames.
Ultimately, this WIDIA component offers manufacturing floors an exceptional balance of fast cutting cycles and lower tooling overhead.
