  • SEL 3232 P16
  • SEL 3232 P16
  • SEL 3232 P16

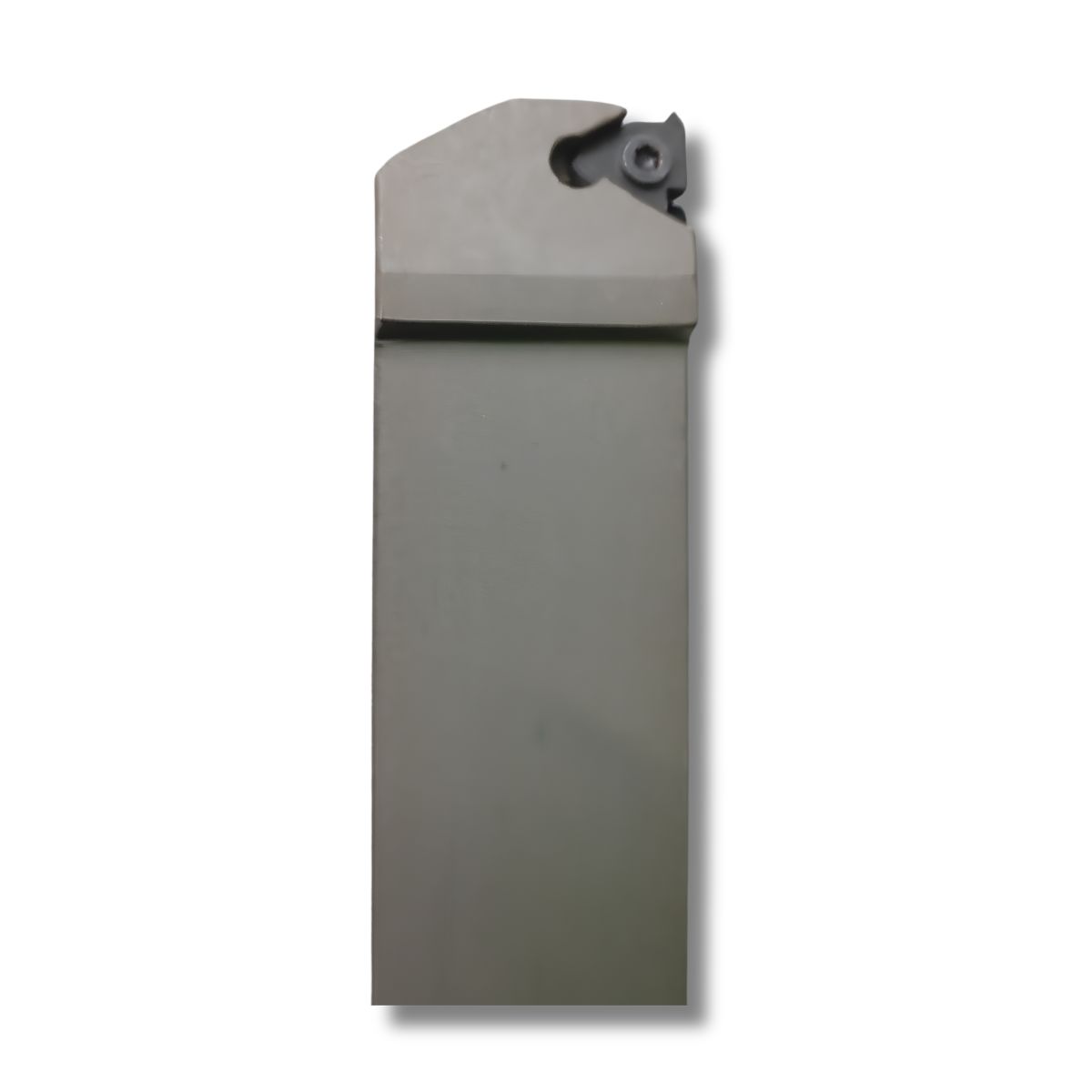

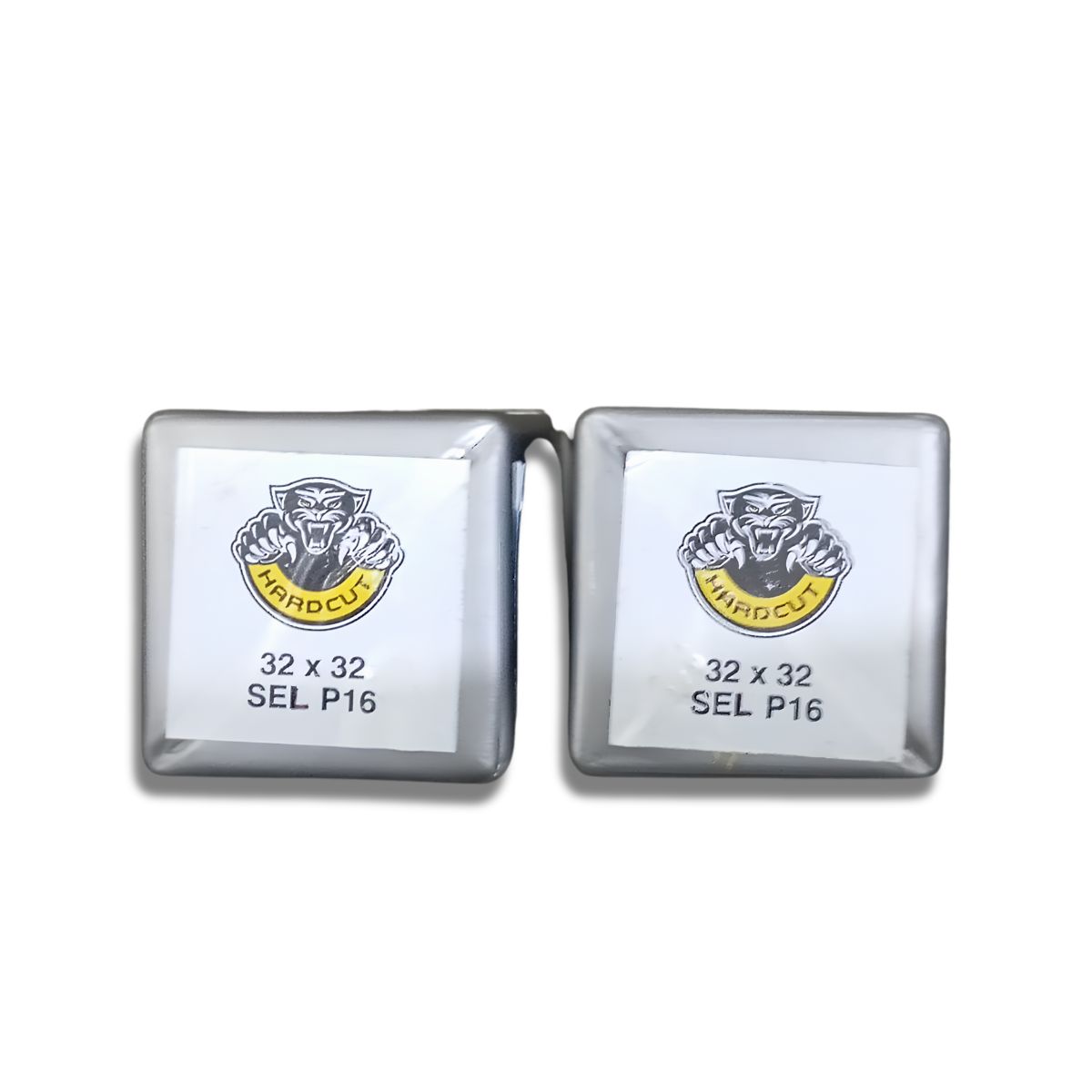

SEL 3232 P16

SEL 3232 P16

Brand: HARDCUT

The designation SEL 3232 PK is a partial or slightly misprinted code for an ISO standard left-hand external laydown threading tool holder.In ISO nomenclature, the letter "K" represents a total tool length of 125 mm. However, a heavy-duty 3232 (32mm x 32mm) square shank typically requires a longer "P" length (170 mm) to clear the lathe's tool post. It is highly likely your full designation is SEL 3232 P16, SEL 3232 P22, or SEL 3232 P27.

₹3000.00

₹3000.00

Share on:
product details
Letter/Number SpecificationMeaning

S

Clamping System

Screw-down lock layout for maximum chip evacuation.

E

Application Type

External (Outer Diameter) thread cutting.

L

Cutting Direction

Left-hand cutting direction.

3232

Shank SizeHeavy-duty 32 mm x 32 mm square shank.

P

Tool LengthTotal tool length of 170 mm (Standard for 3232 shanks).

K

Alternative LengthIf strictly "K", total length is short at 125 mm (Rare for this shank thickness).


🔍 Determining Your Insert Size (The Missing Last Digits)
Since the final two digits specify the pocket and insert edge size, check which indexable triangle insert layout matches your physical tool:

  • Size 16 (e.g., SEL 3232 P16): Fits standard 16EL or 16IL inserts. Used for everyday small-to-medium pitches (up to 3.0 mm / 8 TPI .
