  • SER 3232 P22
  • SER 3232 P22
  • SER 3232 P22
SER 3232 P22

SER 3232 P22

Brand: HARDCUT

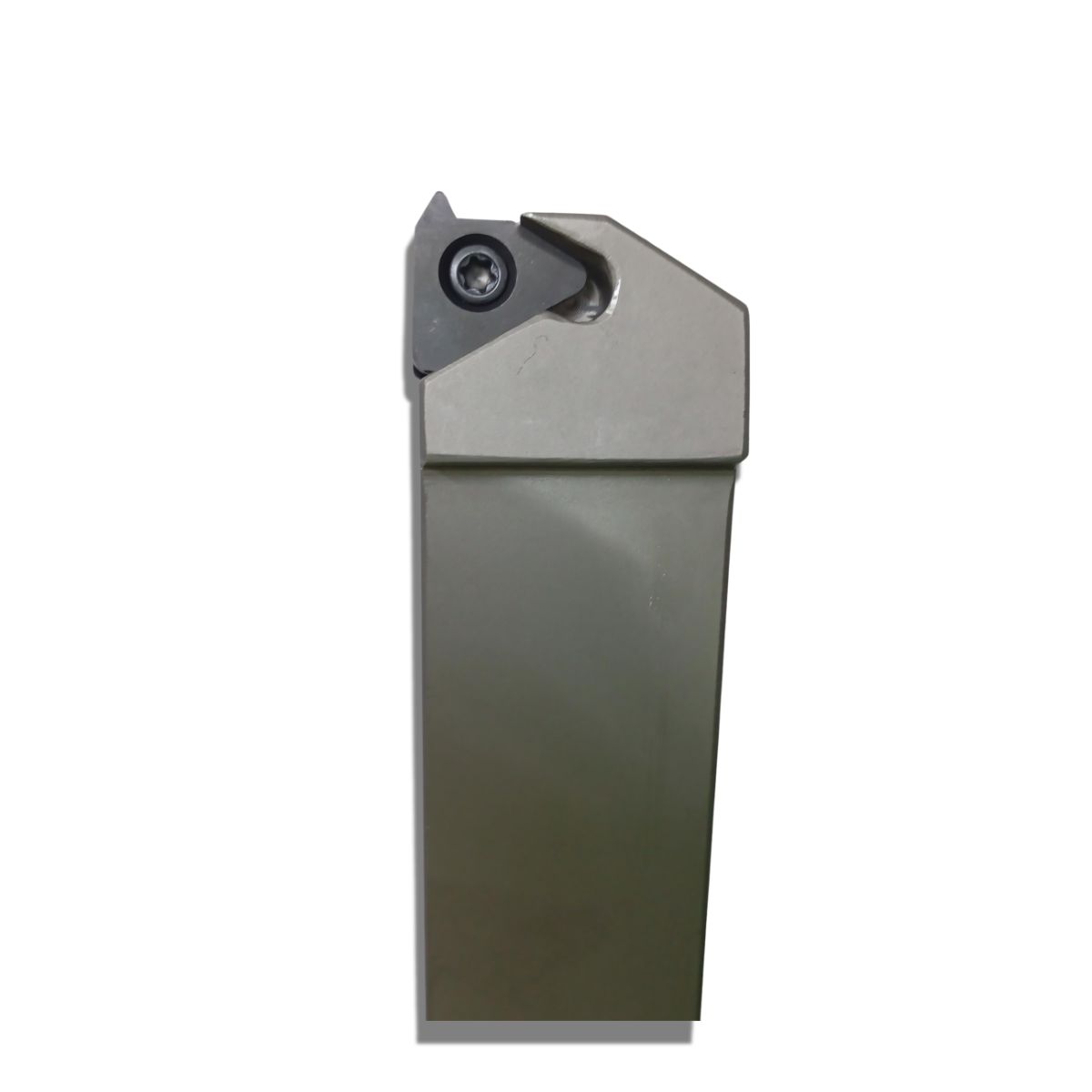

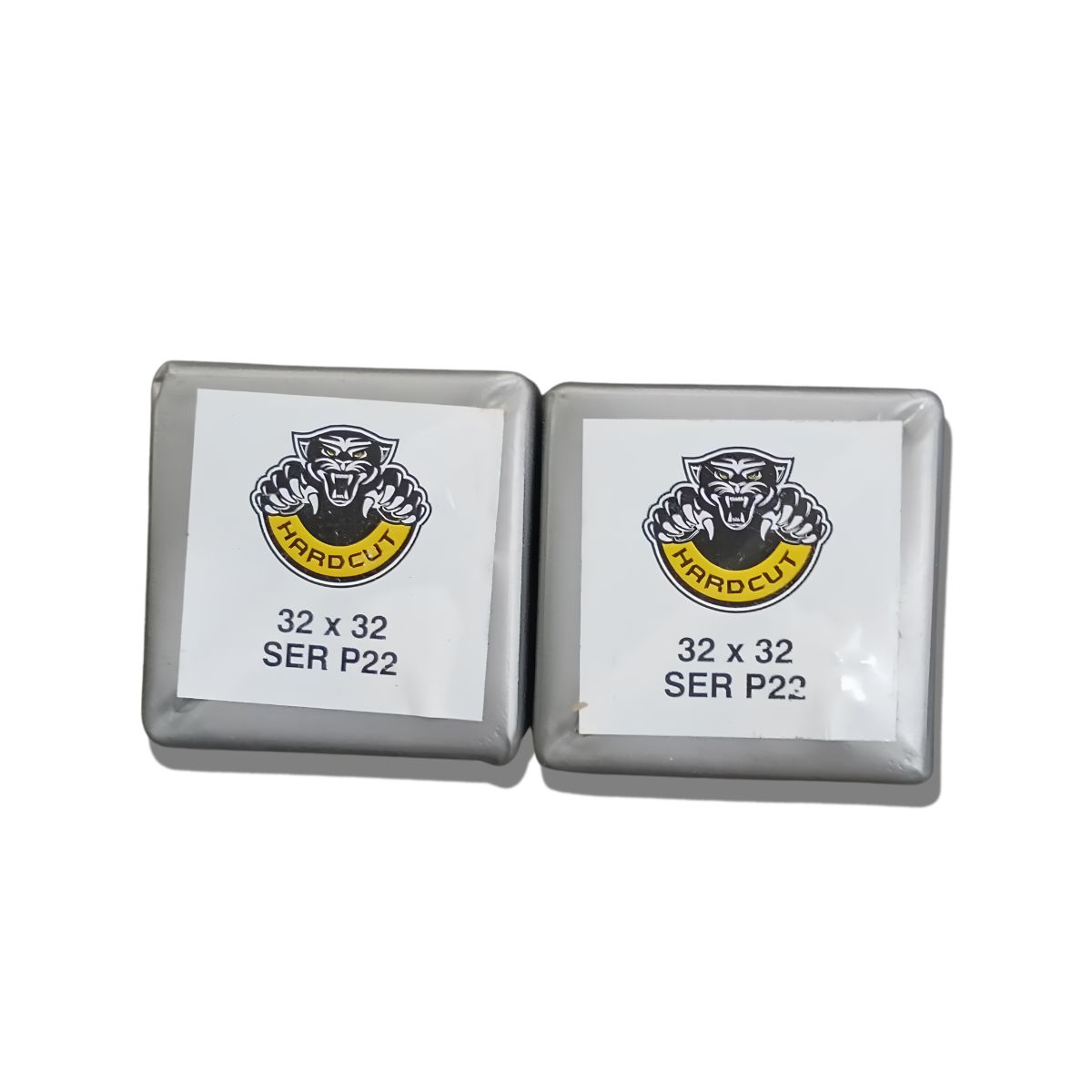

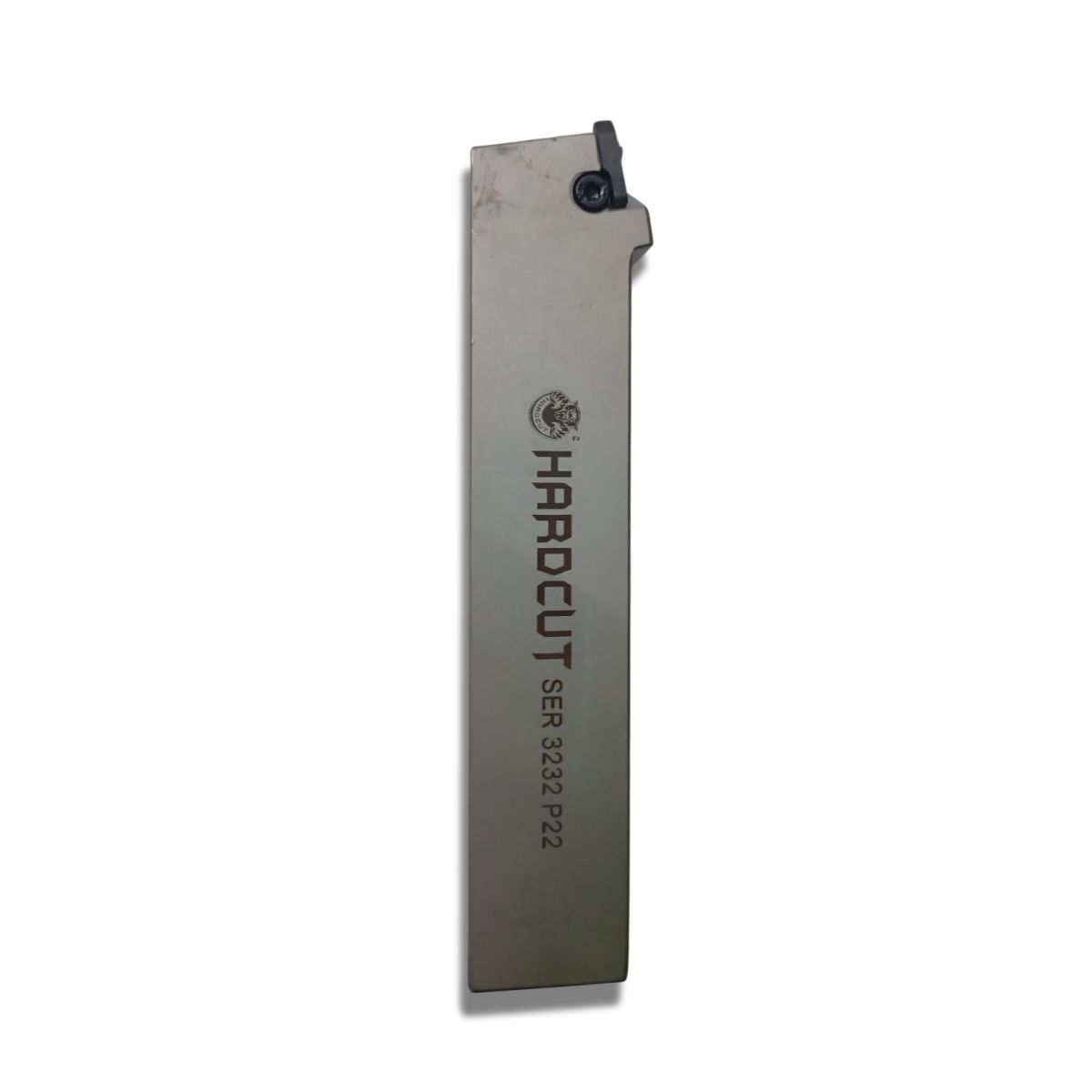

The SER 3232 P22 is a heavy-duty, standard ISO laydown indexable external thread turning tool holder designed for CNC and conventional lathe machines. Because it belongs to the "22" size family, this holder is explicitly designed for machining larger thread pitches (typically up to a 5.0 mm or 5 TPI pitch in a single point) and provides massive rigidit.

₹3000.00

₹3000.00

Share on:
product details

  • Compatible Inserts: Any standard layout 22ER triangle insert (e.g., 22ER 3.0 ISO, 22ER AG60).

  • Carbide Shim / Anvil: AE 22 (Standard 1.5° helix angle profile).

  • Insert Screw: M4 x 14 (or S22 / SR 8-32).

  • Anvil Screw: M3 x 8 (or A22 / SR 8-32-L5.8).

  • Torx Key Size: T15 (or K22).



💡 Multi-Tooth Insert Usage Note
If you are planning to run multi-tooth inserts to reduce your cycle times on this holder, ensure you change the standard anvil to a Type M anvil (like the AE22M). Multi-tooth profiles require a specific backing to align properly and prevent the trailing teeth from rubbing the thread flanks.
Letter/Number [1, 2, 3, 4, 5]SpecificationMeaning

S

Clamping System

Screw-down lock method for unobstructed chip flow.

E

Application Type

External (Outer Diameter) threading operations.

R

Cutting Direction

Right-hand cutting direction.

3232

Shank SizeHeavy-duty 32 mm x 32 mm square shank.

P

Tool LengthTotal length is 170 mm.

22

Insert Size PocketAccommodates standard 22 ER layout inserts.
SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.

You May Also Like

SNR-0020-R16-(HOLDER)
SNR-0020-R16-(HOLDER)
1872.00
2246.00
SIR-0032-S16-HOLDER
SIR-0032-S16-HOLDER
3432.00
4118.00
SIR-0040-T22-HOLDER
SIR-0040-T22-HOLDER
4992.00
5990.00
SIR-0020-M22-HOLDER
SIR-0020-M22-HOLDER
1872.00
2246.00
SNR-0020-R16-HOLDER
SNR-0020-R16-HOLDER
2184.00
2620.00
SER-2525-M22-HOLDER
SER-2525-M22-HOLDER
2184.00
2620.00

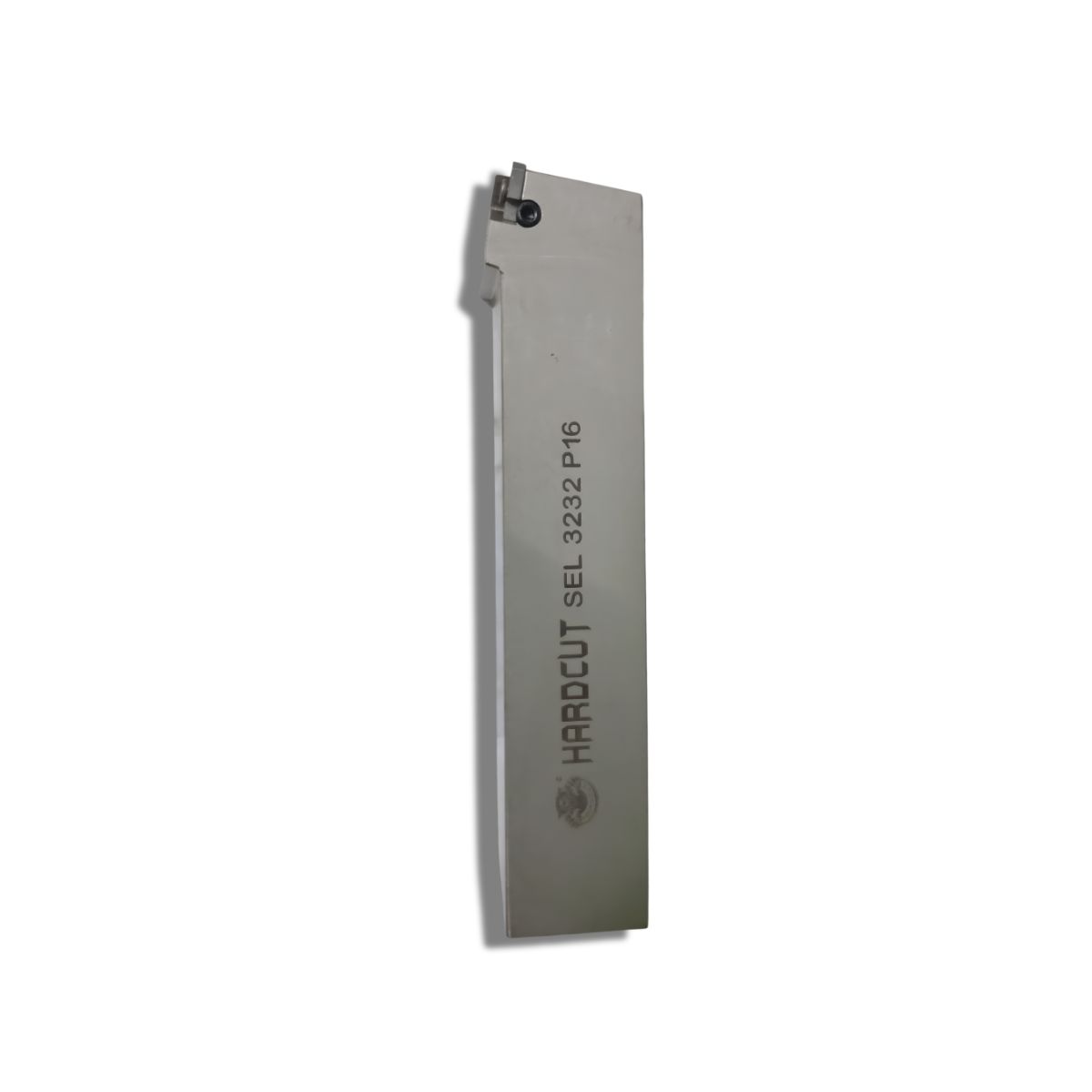

SEL 3232 P16
