  • SER3232P22
  • SER3232P22

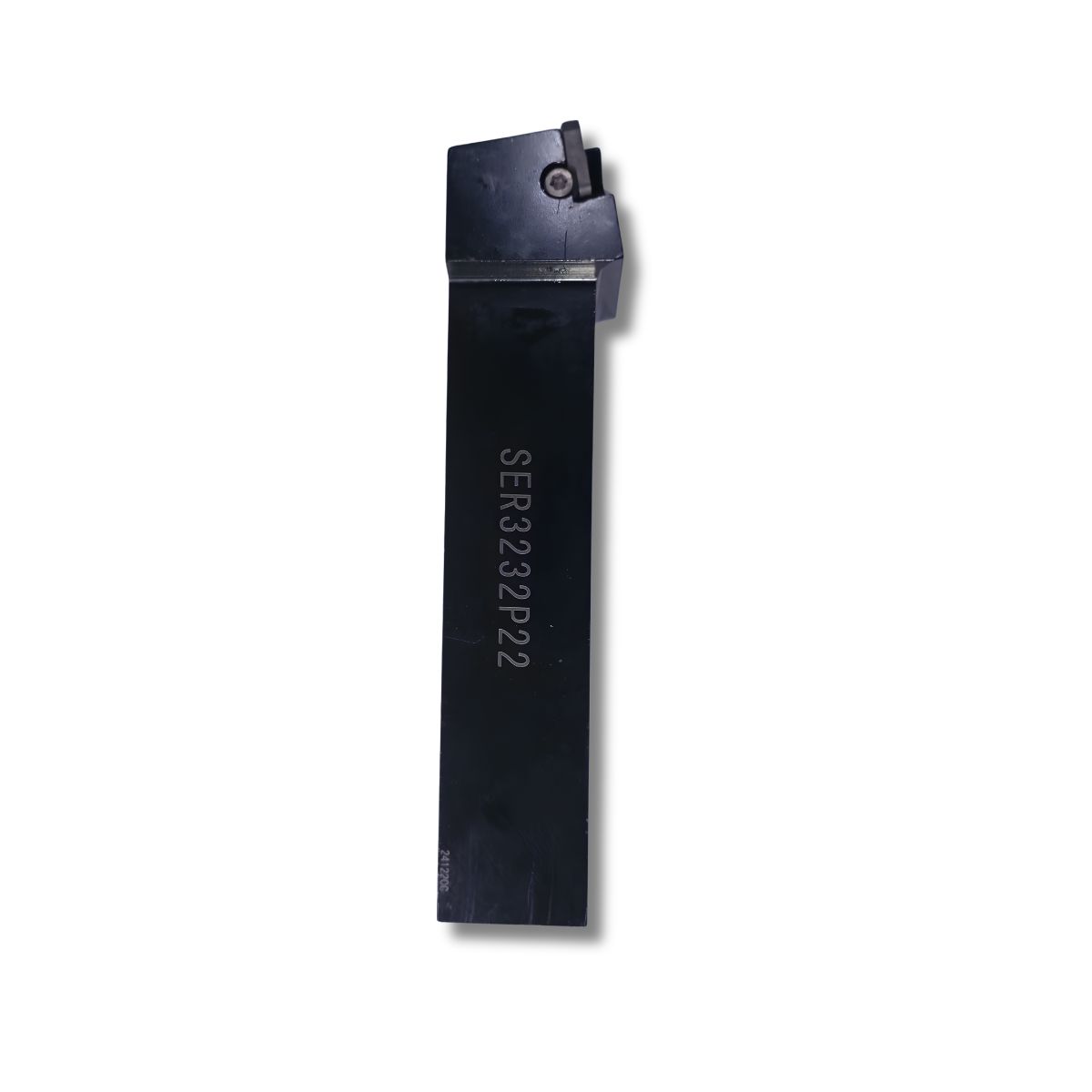

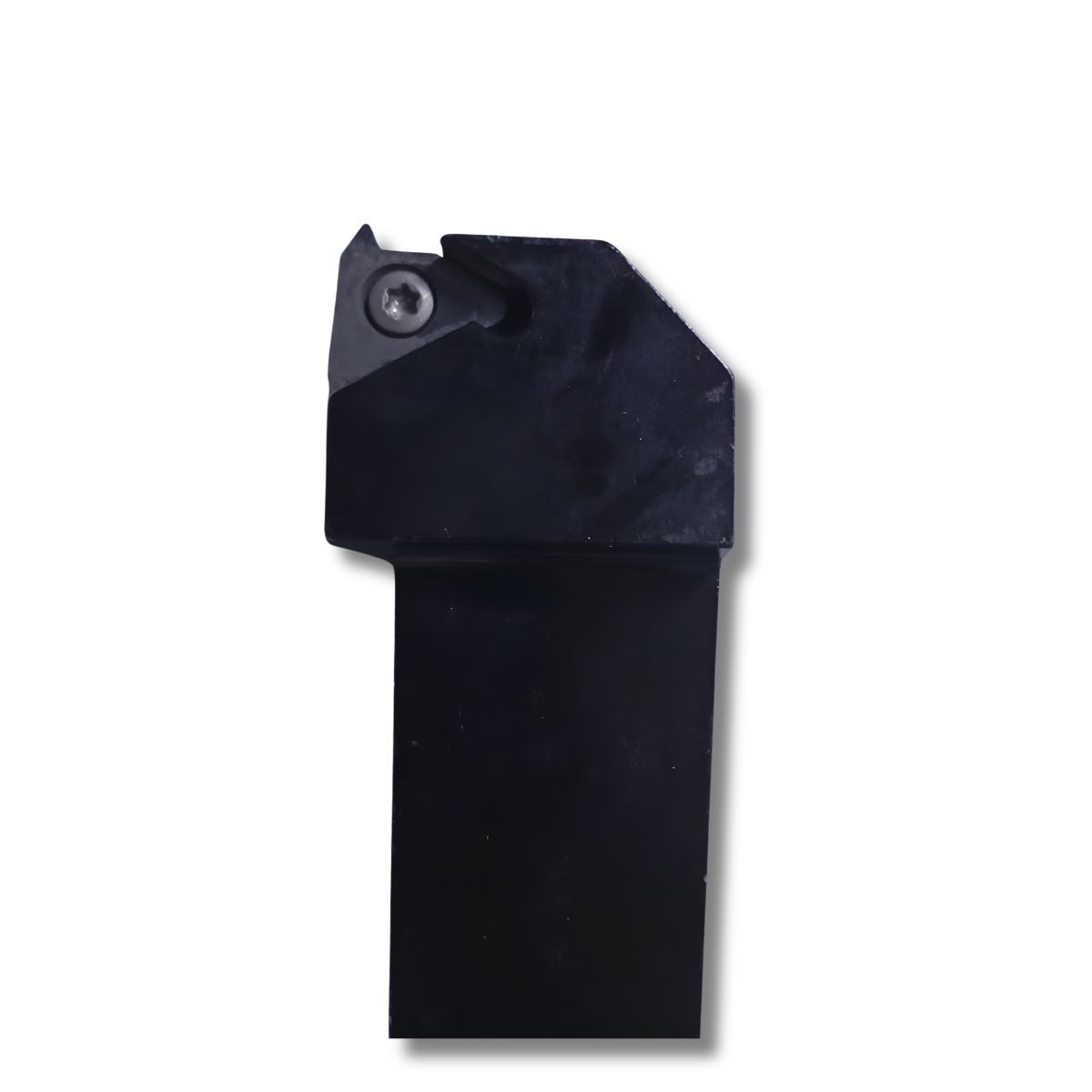

SER3232P22

SER3232P22

Brand: TOOLFARM

THE SER3232P22 (MORE COMMONLY DESIGNED AS THE ISO SER 3232P22) IS A HIGH-PERFORMANCE, SQUARE-SHANK EXTERNAL THREADING TOOL HOLDER SPECIFICALLY ENGINEERED FOR LAYDOWN THREADING INSERTS. IT IS CONSTRUCTED TO RIGIDLY CLAMP 22 MM SINGLE-POINT THREADING INSERTS FOR GENERATING ACCURATE EXTERNAL SCREW THREAD PROFILES ON CNC LATHES.

₹2800.00

₹2800.00

Share on:
product details

THREAD SYSTEM STYLE (S): DESIGNATES A SECURE SCREW-CLAMPING SYSTEM. IT ANCHORS THE INSERT DOWN THROUGH A CENTRAL CLAMP SCREW INTO A RIGID PRECISION RECESSED SEAT.
INSERT GEOMETRY STYLE (E): SPECIFIES AN EXTERNAL THREADING DESIGN CONFIGURATION.
HOLDER TYPE (R): INDICATES A RIGHT-HAND DIRECTIONAL CUTTING ORIENTATION.
SHANK SIZE (3232): REPRESENTS A HEAVY-DUTY INDUSTRIAL SQUARE SHANK MEASURING 32 MM WIDTH (B) BY 32 MM HEIGHT (H).
HOLDER LENGTH (P): INDICATES A METRIC STANDARD CODE DESIGNATING AN 170 MM OVERALL LENGTH (OAL).
INSERT SEAT SIZE (22): COMPATIBLE EXCLUSIVELY WITH SIZE 22 LAYDOWN THREADING INSERTS (THREADING INSERTS MEASURING AN INSCRIBED CIRCLE OR CUTTING EDGE LENGTH OF 22 MM / IC 1/2 INCH).
