SMD-80-H8-2210T

SMD-80-H8-2210T

Brand: TOOLFARM

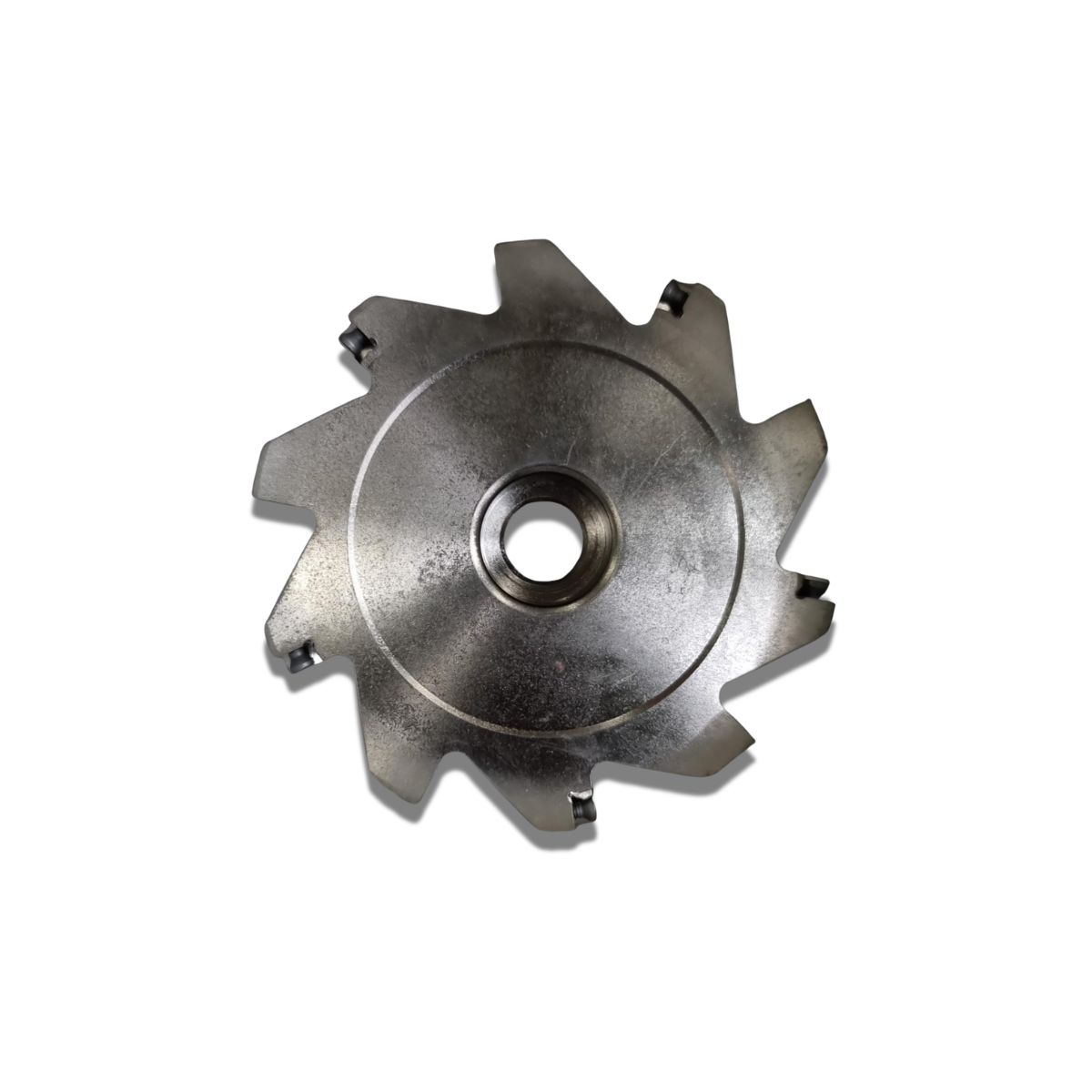

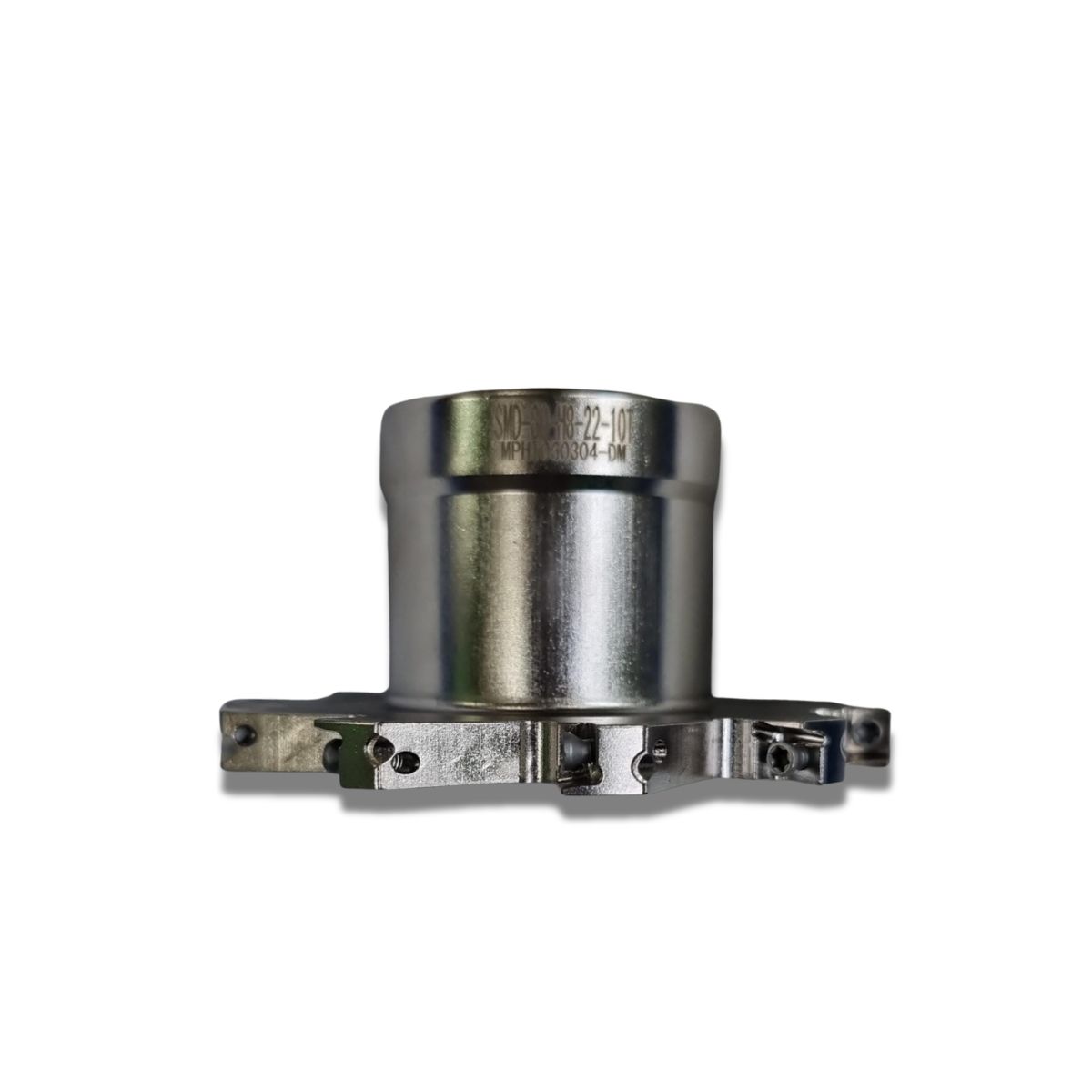

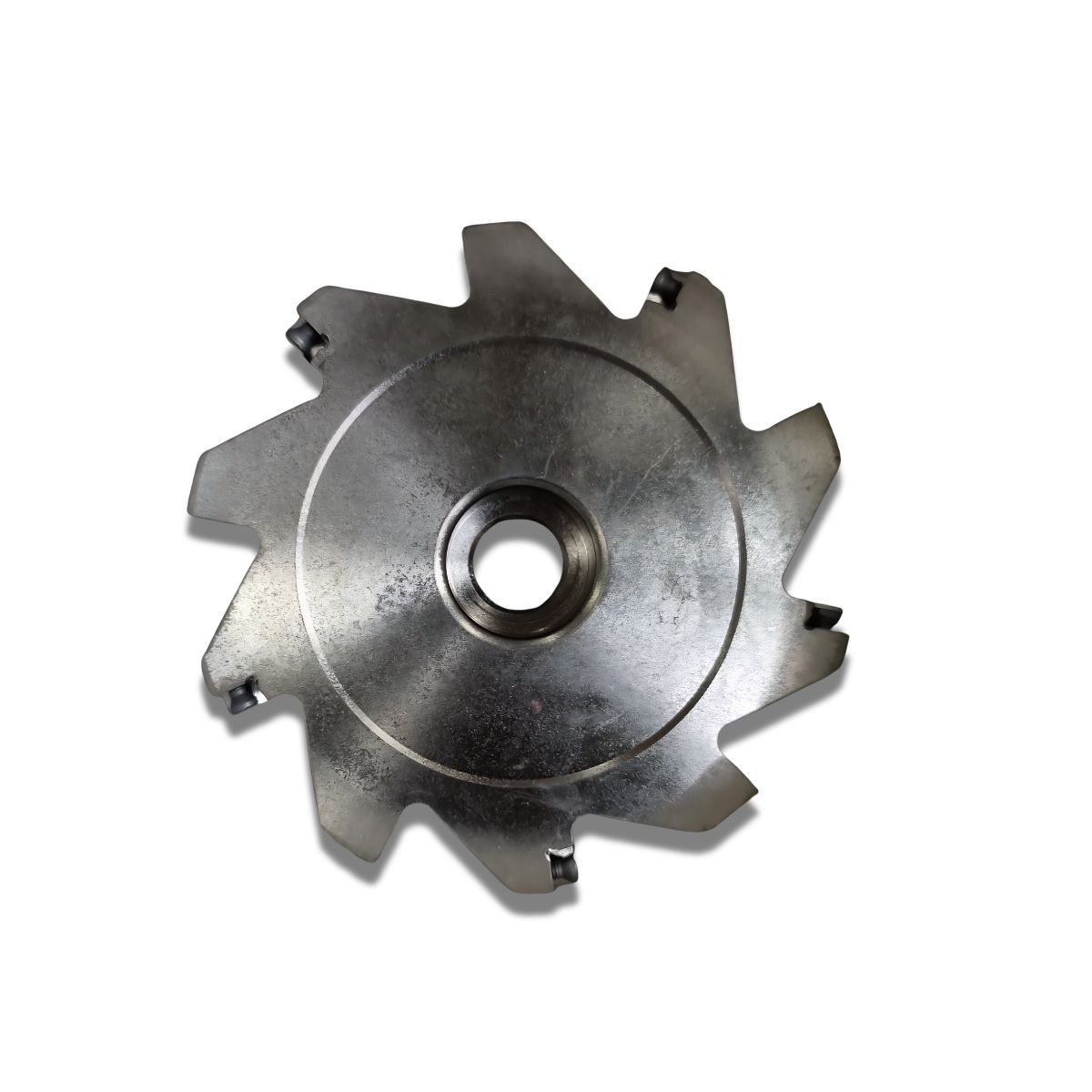

The SMD-80-H8-2210T belongs to the "CNC Indexable Milling Cutters" category, specifically classified as an Indexable Three-Sided Side .

₹1600.00

₹1600.00

Share on:
product details

  • SMD (Series Code): Represents the manufacturer's model classification for an indexable, sleeve-type side-and-face slot milling cutter disc.

  • 80 (Outer Cutting Diameter): The overall outer diameter of the rotating cutter wheel is 80 mm.

  • H8 (Groove Width / Disc Thickness): The precise width of the slot or trench this cutter produces is 8 mm.

  • 22 (Arbor Bore Inner Diameter): Features a 22 mm central mounting hole, designed to slide directly onto standard FMB22 face milling arbors or shell mill holders.

  • 10T (Teeth / Insert Pockets): The perimeter of the disc contains 10 tool pockets, allowing it to mount 10 indexable carbide inserts simultaneously to balance cutting loadand increase feed rates.

Mechanical Features & Setup

  • Hardness: The disc body is built from premium alloy steel quenched and hardened to HRC42–48 to resist twisting and deflection under heavy stress.

SHIPPING AND DELIVERY
  • We are committed to providing fast shipping for all orders, with a goal of shipping within 48 hours of receiving them. In fact, in most cases, we are able to offer same-day shipping to ensure you receive your order as soon as possible.
  • Our standard shipping method is via Blue Dart, Shree Maruti, DTDC, Trackon, Delhivery, which typically takes 3-5 business days for delivery.
  • You will receive a shipping confirmation email with tracking information once your order has been shipped.
  • Please note that delivery times may vary depending on your location and any unforeseen circumstances beyond our control.
  • If you have any questions or concerns about your order's shipping or delivery status, please contact us at +91-70033 06384.
WARRANTY AND GURANTEE
  • Our machine tools comes with a warranty and guarantee against manufacturing defects.
  • The warranty and guarantee is only valid if the tool has not been used and the defect is not the result of misuse, neglect, or normal wear and tear.
  • The warranty and guarantee period is 15 days, starting from the date of purchase.
  • If you encounter a manufacturing defect during the warranty and guarantee period, please contact us +91-70033 06384 to initiate a warranty claim.
  • We will repair or replace the defective product at no cost to you, provided that the defect is covered by the warranty and guarantee terms and conditions.
  • Our warranty and guarantee does not cover any incidental or consequential damages that may arise from the use of the product.
  • By purchasing our machine tools, you agree to the terms and conditions of our warranty and guarantee.

You May Also Like

SN1206-45-160-40-11T
SN1206-45-160-40-11T
14000.00
16800.00
F4042,B,063,Z07,11
F4042,B,063,Z07,11
12000.00
14400.00

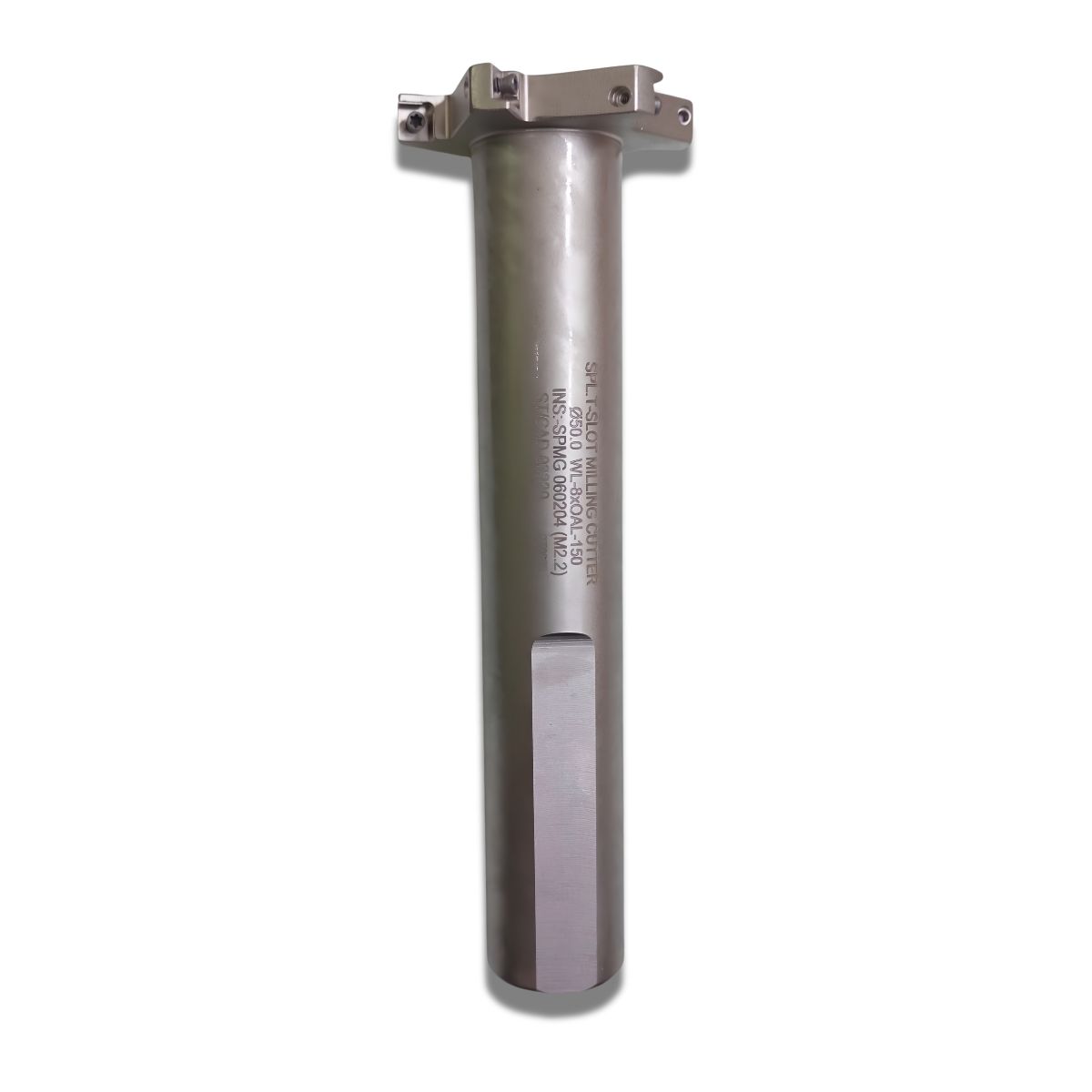

Q50.0 WL-8XOAL-150 INS-SPMG 060204)(M2.2)
