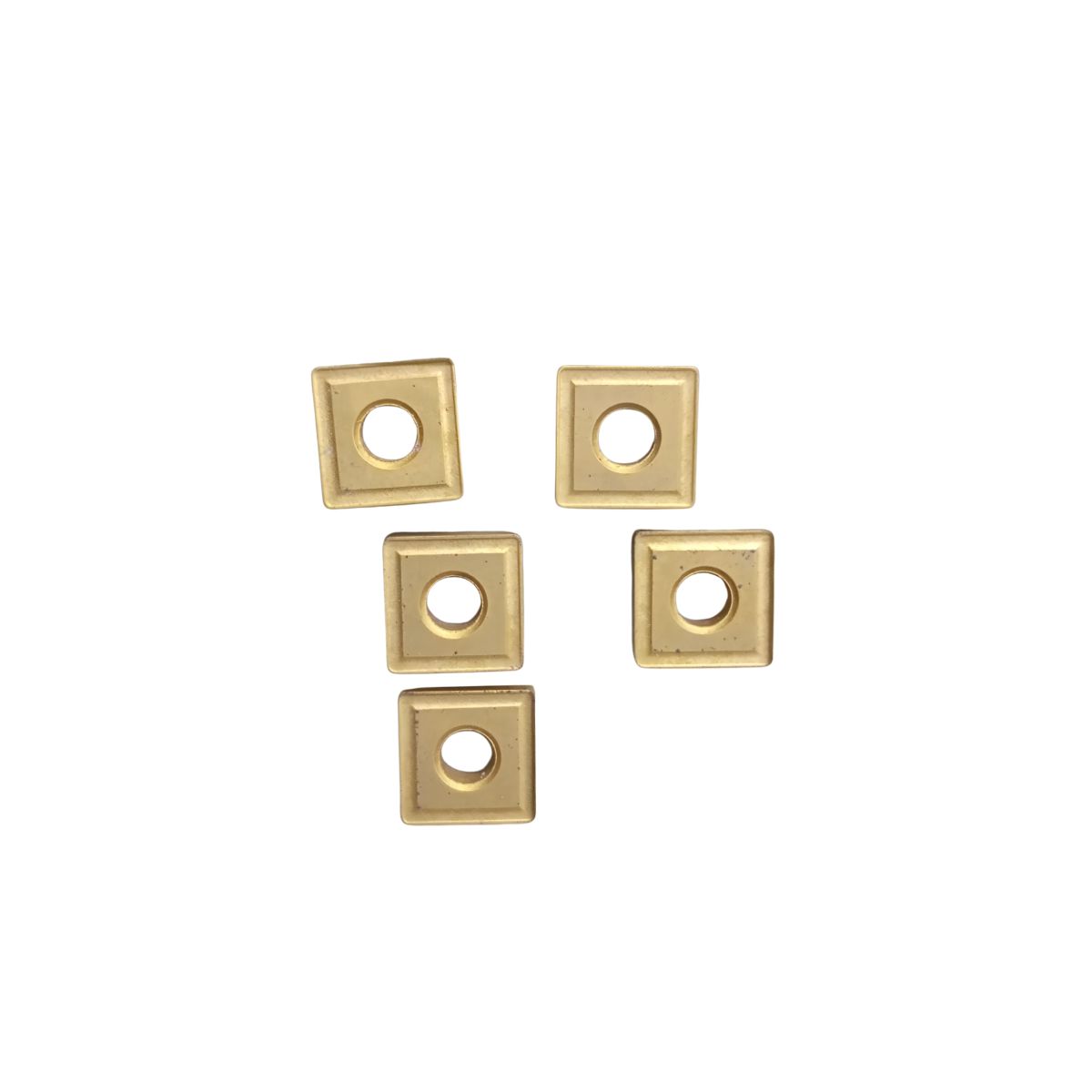

1. TECHNICAL CODE BREAKDOWN
S: DESIGNATES THE 90-DEGREE SQUARE PROFILE SHAPE. SQUARE INSERTS GENERATE MAXIMUM COMPONENT STABILITY AND RIGID EDGES COMPARED TO DIAMOND PATTERNS.
N: INDICATES A NEGATIVE 0-DEGREE CLEARANCE ANGLE, PERMITTING THE INSERT TO HAVE CHIPBREAKING PROFILES ON BOTH THE TOP AND BOTTOM FACES TO DELIVER A TOTAL OF 8 HIGH-EFFICIENCY CUTTING EDGES.
M: REPRESENTATIVE NORMAL MANUFACTURING TOLERANCE CLASS GOVERNING THE INSCRIBED CIRCLE (IC) HEIGHT AND THICKNESS DEVIATIONS FOR INTERCHANGEABLE FIXING. [1]
G: CONFIRMS A CYLINDRICAL THROUGH-HOLE FIXING PORT WITH DOUBLE-SIDED CHIP GEOMETRIES.
12: IDENTIFIES THE RATED METRIC CUTTING EDGE LENGTH SCALE OF 12.70 MM (EQUIVALENT TO AN ANSI HALF-INCH SIZE).
04: SPECIFIES THE NOMINAL INSERT BODY THICKNESS RATIO EQUAL TO 4.76 MM.
08: DESIGNATES A PRECISION CORNER NOSE RADIUS OF 0.80 MM, STRIKING AN OPTIMAL BALANCE BETWEEN RADIAL EDGE RUGGEDNESS AND REDUCED TOOL CHATTER.
IGAP: THE PROPRIETARY OR DESIGNATED CHIPBREAKER PROFILE MATRIX, TAILORED SPECIFICALLY TO CURLED SLAG STRANDS FOR WIDE CHIP-CONTROL RANGES DURING SEMI-ROUGHING TURNING DYNAMICS.
2. KEY ATTRIBUTES & DESIGN
8 CUTTING CORES REDUNDANCY: BECAUSE BOTH REVERSE PLATFORMS FEATURE FLANK PROFILES, OPERATORS CAN ROTATE THE CHIP INDUCTION CORNERS 8 DISTINCT TIMES PER PIECE, LOWERING TOOL REPLACEMENT EXPENDITURES.
HEAVY ROUGHING CHIP CONTROL: THE IGAP GROOVE ARCHITECTURE IS CONTOURED TO RUPTURE HIGH-ELONGATION CHIPS EFFECTIVELY, ELIMINATING STRINGY BIRD-NESTING AROUND ROTATING CNC CHUCKS.
HIGH DEFLECTION RESISTANCE: THE COMBINATION OF THE 90° GEOMETRY AND ACCENTUATED NEGATIVE ANCHOR LANDS ENABLES DEEP RADIAL CUTTING DEPTHS WITH HIGH DYNAMIC FEED FORCES.
3. INDUSTRIAL APPLICATIONS
TARGET PROCESSES: REPLICABLE HEAVY-DUTY LONGITUDINAL CYLINDER TURNING, INTERRUPTED PROFILE SHAPING, HIGH-VOLUME FORGING SKIN SKIMMING, AND EXTERNAL FACING CYCLES.
COMPATIBLE HOUSINGS: DESIGNED TO MATINGLY SEAT INSIDE STANDARD LATHE SHANK SHIFT BLOCKS LIKE THE MCLNR / MCLNL OR PSSNR / PSSNL BORING STALKS AND EXTERNAL HOLDERS.
COMMON WORKPIECES: HIGH-TENSILE ALLOY STEEL GEAR BLANKS, REFORGED TRANSMISSION SHAFTS, HOT-ROLLED STEEL FLANGES, STRUCTURAL AXLES, AND STAINLESS STEEL TUBE SHELLS.
