  • TNMG 160404 PV720

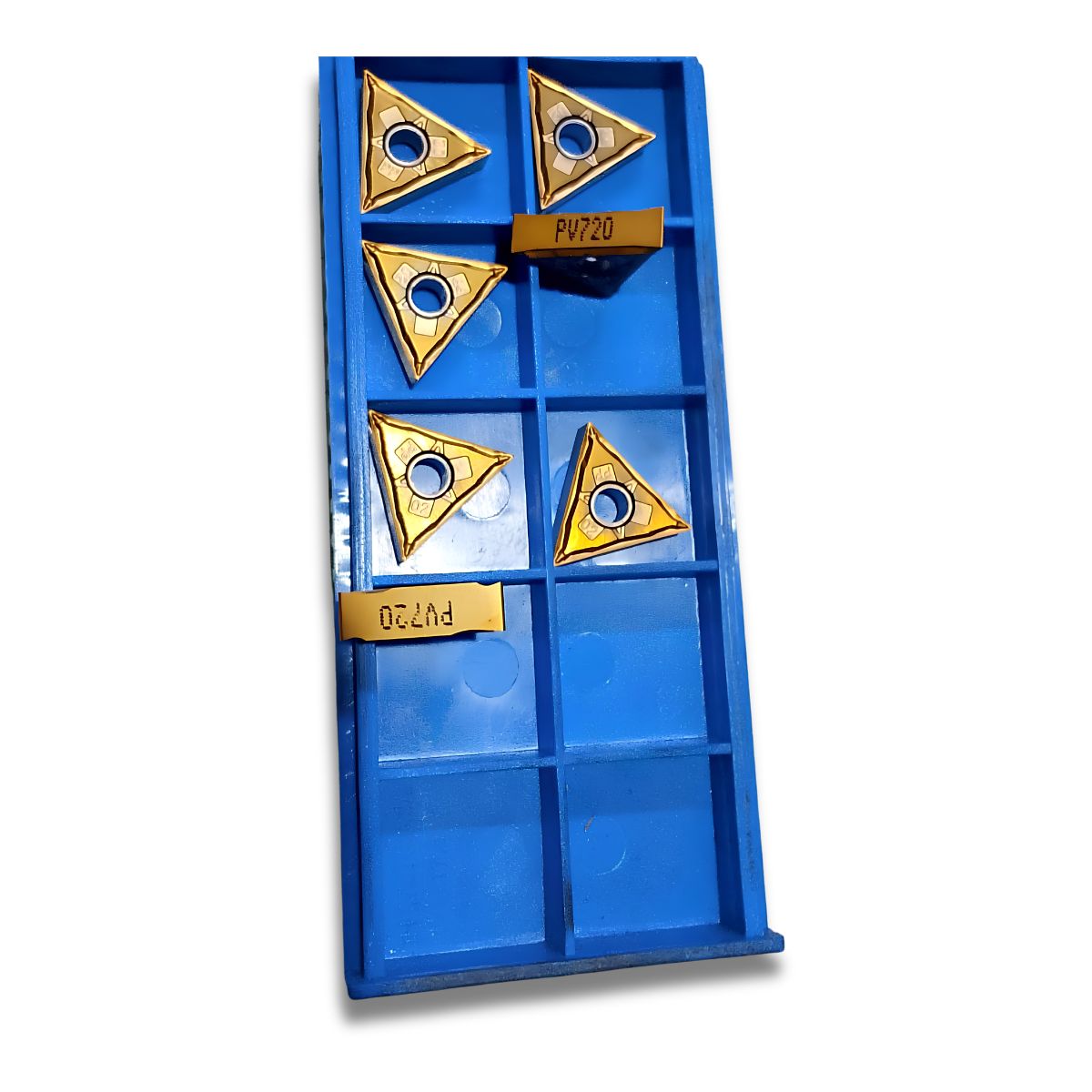

TNMG 160404 PV720

TNMG 160404 PV720

Brand: TOOLFARM

THE TNMG 160404 PV720 IS A HIGH-PERFORMANCE, MULTI-EDGE NEGATIVE TRIANGULAR TURNING INSERT ,IT INTEGRATES A PRECISION 0.4 MM NOSE RADIUS WITH A PVD COATED METALLIC-BONDED HYBRID CERMET GRADE, SPECIFICALLY ENGINEERED TO DEVELOP A HIGHLY FLUID SURFACE FINISH AND LONG TOOL LIFE WHEN MACHINING STEELS.

₹600.00

₹600.00

Share on:
product details

  • INSERT SHAPE (T): 60° TRIANGULAR SHAPE, UTILISING UP TO 6 DISTINCT CUTTING EDGES (3 PER SIDE) DUE TO ITS NEGATIVE SYSTEM GEOMETRY.

  • CLEARANCE ANGLE (N): 0° NEGATIVE CLEARANCE ANGLE DESIGNED TO DELIVER ROBUST FLANK RESISTANCE AND INCREASED BACKUP BASE STABILITY.

  • TOLERANCE CLASS (M): CLASS M GEOMETRIC INDICES TO MAINTAIN HIGH MOUNTING REPEATABILITY ACROSS CNC TOOL HOLDERS.

  • HOLE & CHIPBREAKER DESIGN (G): FEATURING A CENTRAL CYLINDRICAL CLAMPING HOLE WITH MOULDED DOUBLE-SIDED CHIP REJECTION CHANNELS (SUCH AS THE POPULAR PQ OR PP GEOMETRIES).

  • CUTTING EDGE LENGTH (16): NOMINAL CUTTING EDGE LENGTH MEASURING 16.5 MM.

  • THICKNESS (04): STANDARD INSERT THICKNESS MEASURING 4.76 MM.

  • CORNER RADIUS (04): PRECISION 0.4 MM CORNER RADIUS TAILORED FOR FINE SEMI-FINISHING TO HIGH-SURFACE-FINISH TURNING.

  • MATERIAL GRADE (PV720): KYOCERA'S PREMIUM MEGACOAT NANO PVD-COATED HYBRID CERMET. THE CERMET BASE DELIVERS MAXIMUM CHEMICAL STABILITY AND ANTI-WELDING PROPERTIES, WHILE THE COATING LAYER INHIBITS OXIDATION AND DRASTICALLY STRENGTHENS CRATER WEAR RESISTANCE.


PRIMARY APPLICATIONS & PARAMETERS

  • MATERIAL SUITABILITY: PRIMARILY OPTIMISED FOR ISO P (CARBON STEELS, ALLOYED STEELS, AND DIE METALS) DURING CONTINUOUS HIGH-SPEED FINISHING OPERATIONS.

  • CUTTING SPEED (VC): TYPICALLY RUNS AT AN ELEVATED SURFACE SPEED PROFILE RANGING FROM 110 TO 520 M/MIN DEPENDING ON THE STEEL HARDNESS.

  • DEPTH OF CUT (AP) & FEED (F): PERFORMANCE IS DESIGNED AROUND A CUTTING DEPTH OF 0.2 – 2.5 MM ACCOMPANIED BY A FINISHING FEED LOAD .
